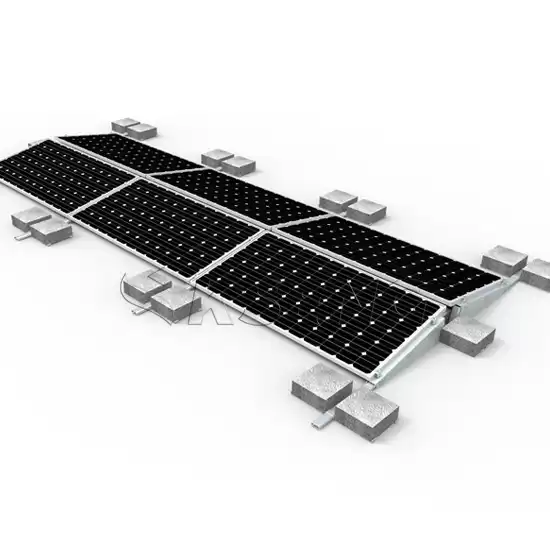

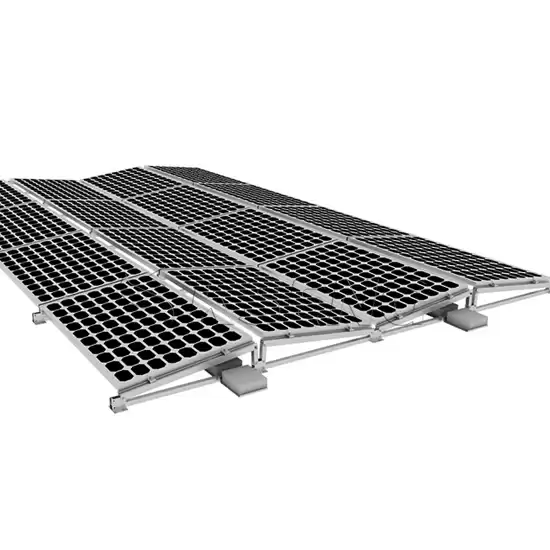

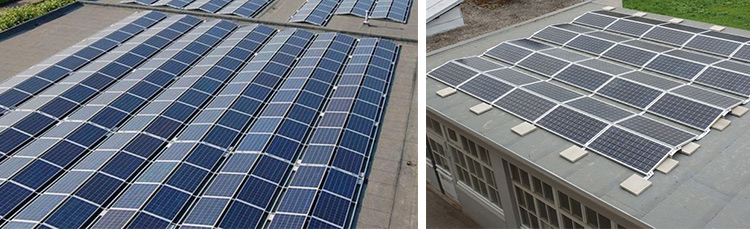

East West Dual Tilt Solar Ballast Mounting System for Flat Rooftop

Kseng`s East West dual tilt mounting system is a exclusive design, it can install more solar panel in the same area, and higher energy production output.Greater overall system power production under the same roof area.

. Cost Effectiveness, the same module qualities ( modules are quite cheap), East West dual tilt mounted on the flat rooftop can save on cost of energy. As solar system in an East-West solar racking are more packed together, potentially you would be saving some rails on the system. When you are installing a large project, bits and pieces adds up.

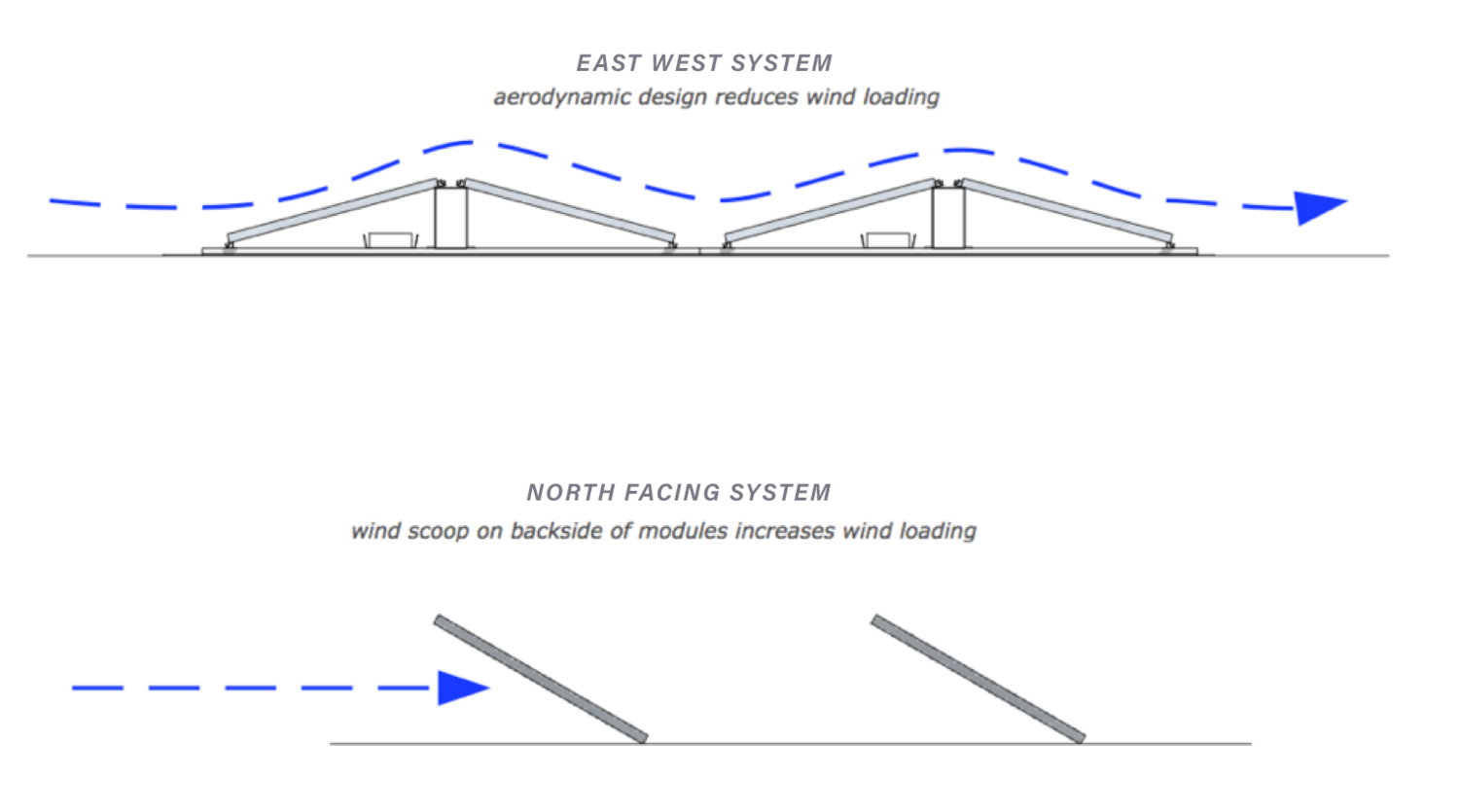

. Easier on the roof and Prevent winds blowing over

North-facing panels titled at 30° need heavy concrete ballasts or stronger mounting to prevent winds blowing the modules over, or off the roof. Less air resistance when using a East West system allows it to be installed on less structurally robust roofs and preserves roof loading capacity for other projects in the future.

Causion:

To avoid deadlock of stainless steel fastener, please avoid using electric tools for final tightening. And refer to the safe torque refined for stainless steel in the following forms. And: Do not fasten bolts tightly until each component is adjusted properly.

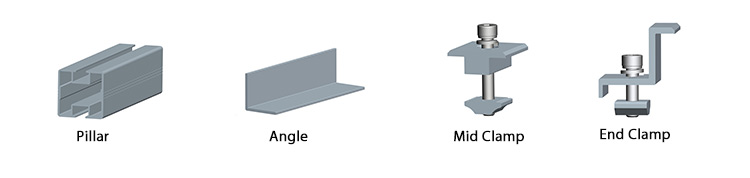

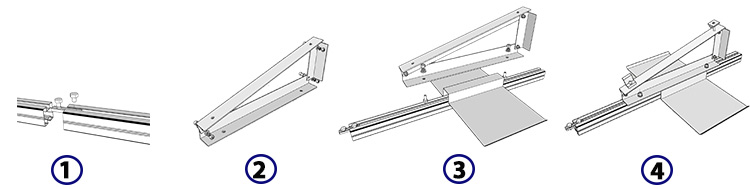

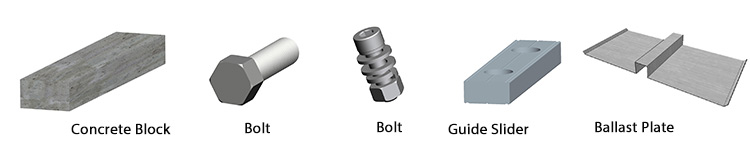

1. According to the panel array drawing, Locate the Pillars. Connect Pillars with M10*20 bolt and Guide Slider.

2. Construct triangle with angles and bolt M8*25.

3.  Put Ballast Plate on Pillar 22, and fix triangle structure to the Pillar 22 with bolt M10*20.

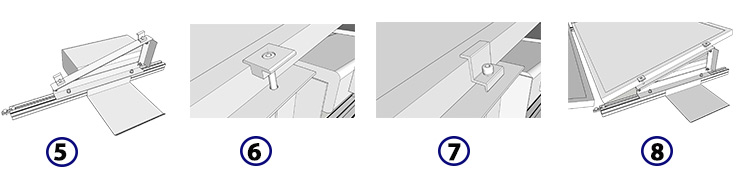

4. Put on end clamp and mid clamp, not tightened.

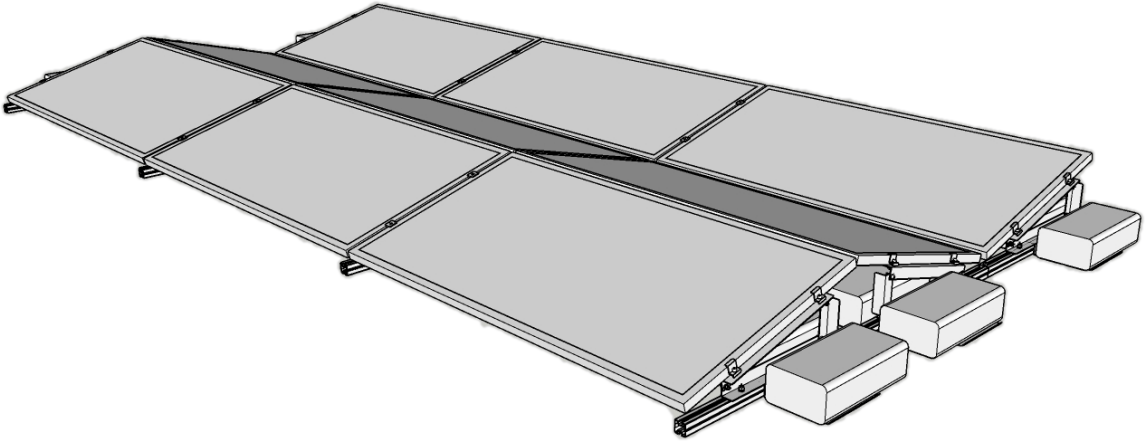

5. Ballast with Concrete Block.

6. 7.8. Install panel, tighten bolt of clamps.



Merit:
