Dual tilt solar racking

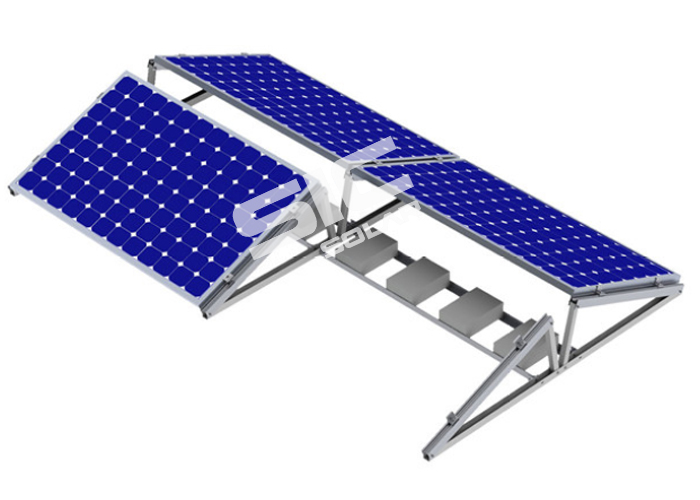

Ballasted PV roof mounting system is developed for Non-Penetrating applications, which can reduce the spaces between panels, minimize the installation space and will not damage the flat roof. Without rail that can save material cost and simply packing, meanwhile can help our customer to save more shipping cost.
Category: Flat roof mounting
|
Installation Site
|
Flat Roof or Ground
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|

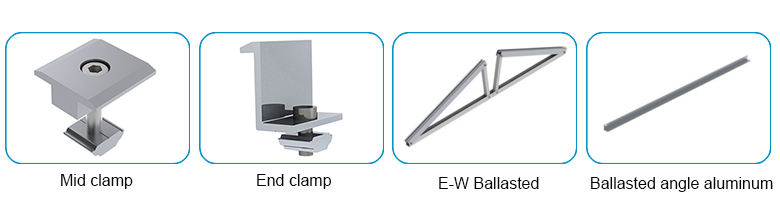

☆ Easy to use- only 4 components
☆Minimize the installation space - East-West design reduce the space between panels.
☆ Ballast design -Non-Penetrating to concrete roof.
☆ Pre-assembled ballast frame – highly save the labor cost at your installation site.
☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list
Main ballast frames could be packed into cartons with plywood pallet. Below steel pallet could be offered for large project.
