EASY INSTALL PLASTIC GRAVEL GRID SYSTEM FOR HORSE STALL
Horse stall gravel grid system is filled with gravel and sand can provide a beautiful and functional walkway, driveway, or parking lot that does not cause runoff. Stable flooring grid uses are limitless.
LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT –GRAVEL GRID SYSTEM

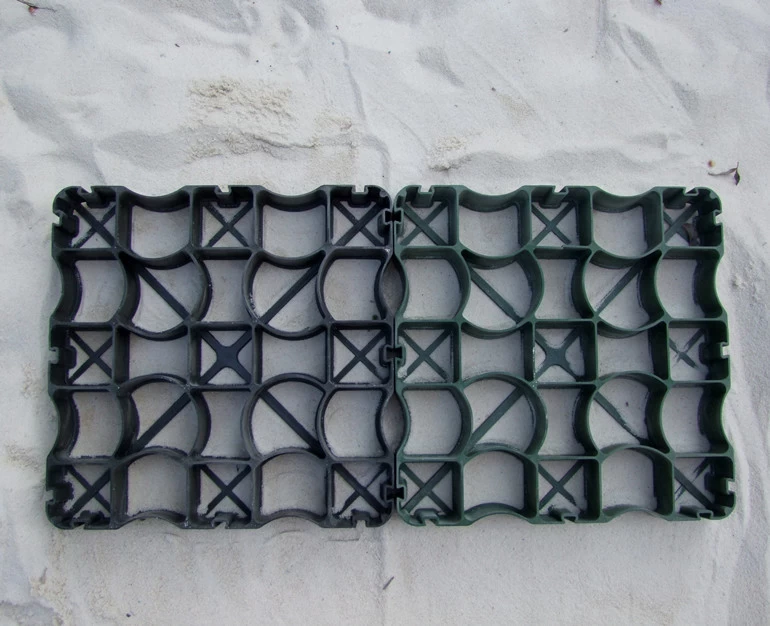

Easy install gravel grid system is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Plastic gravel grid system from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.
DIMENSION
| MATERIAL: |
HDPE(100% Recycled High Density Polyethylene) |
| SIZE: |
336*336*50mm |
| COLOR: |
Black; Dark Green |
| CELL WALL THICKNESS: |
2mm |
| WEIGHT: |
0.65kg/pc; 5.85kg/m² |
| PACKING: |
Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go. |
| LOADING QUANTITY: |
570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ |
SPECIFICATION
| LOADING BEARING CAPACITY: |
More than 250tons/m2 after filled |
| OPEN CELL PERCENTAGE: |
92% top; 75% base |
| ANTI HCL: |
According to GB4218-1984, 30%x24h, no visible change |
| ANTI NaOH: |
According to GB4218-1984, 30%x24h, no visible change |
| THERMAL AGING: |
According to GB/T 7141-1999, 70ICx24h, no visible change |
| UV RESISTANCE: |
According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified |
| TOXICITY: |
Non Toxic |
| DURABILITY: |
Durability of at least 10 years in neutral ground of 4<pH<9 |
COLORS
APPLICATION
- Indoor and outdoor riding arenas
- Paddocks and open stables
- Tethering and mounting areas
FEATURE
-Light weight
-Non-slip
-Elastic and robust
-Easy Install
-Crack-proof
-Weatherproof
-Environmentally friendly, 100% recyclable
-High load capacity
-Ammonia resistant
-Withstands frost and UV light
-Does not rot
PROJECT SHOW
