Easy Solar Kit Home Photovoltaic Panel Balkonkraftwerk 400w Plug And Play BlackMini Solar On Grid System

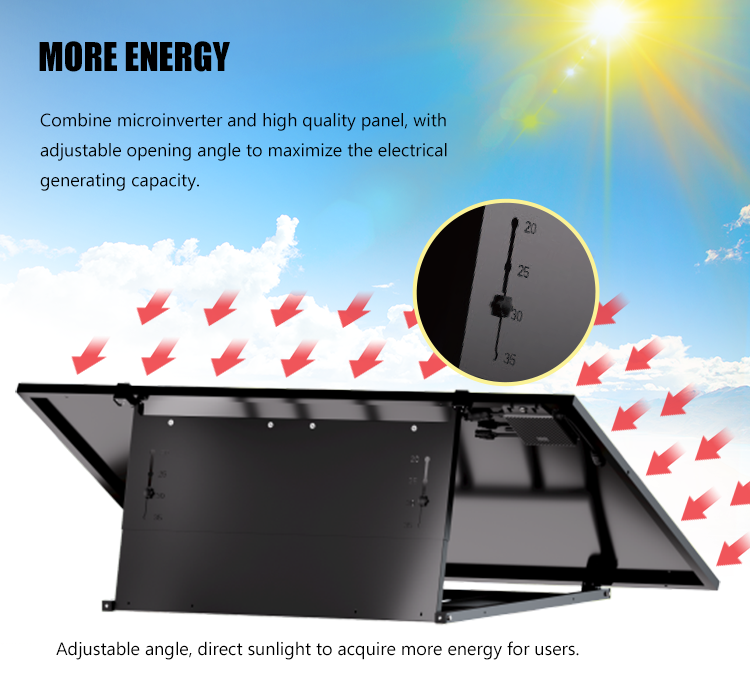

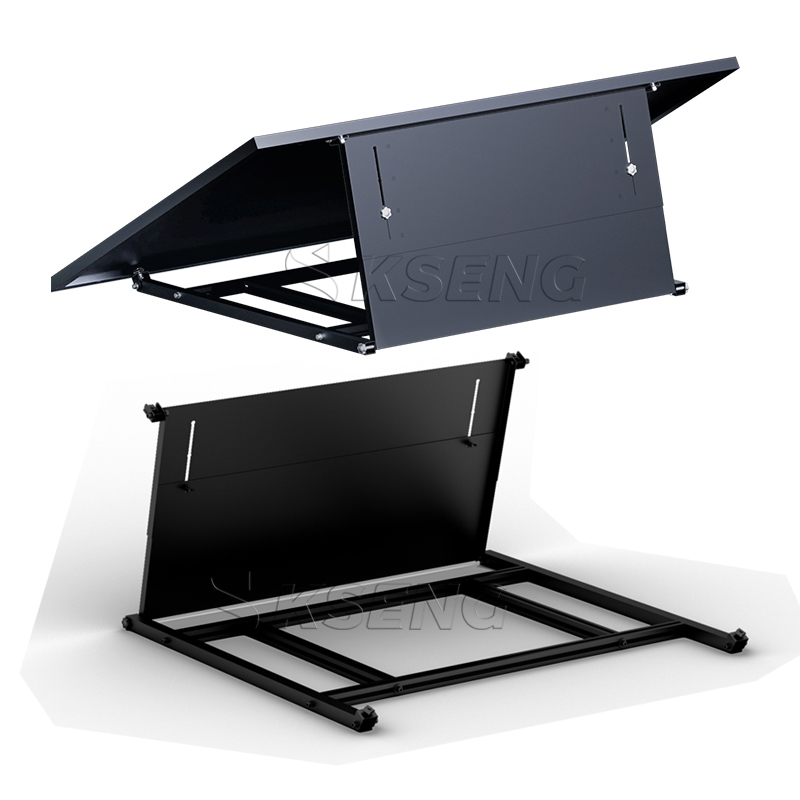

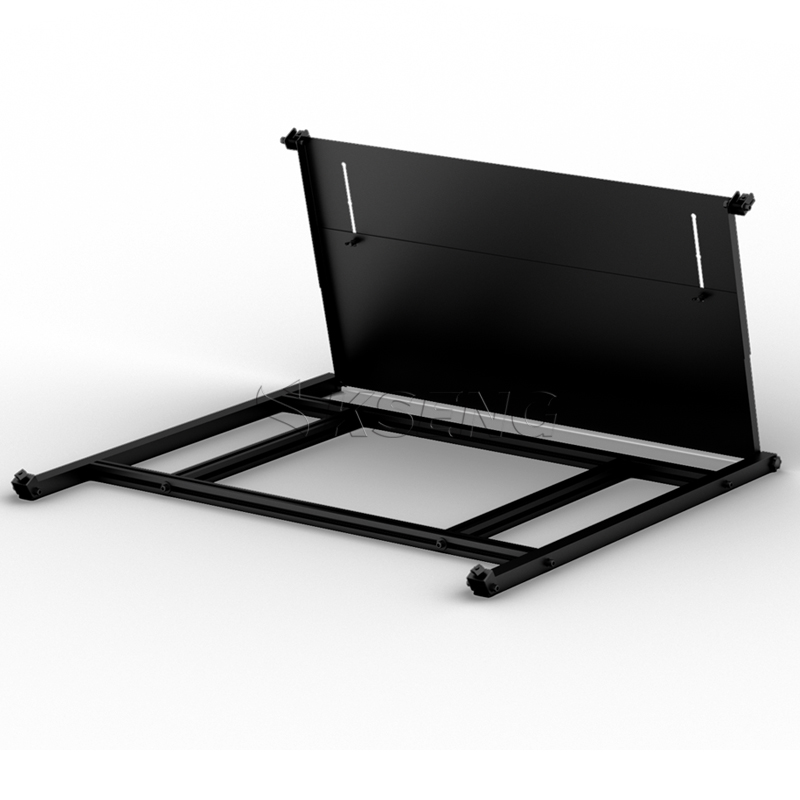

Kseng easy solar kit is a plug ‒and-play system composed of solar panel, micro inverter and angle-ad justable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.


  • Applicationgarden,flat roof
  • CertificationISO9001/CE
  • Service Life25 years
  • Warranty10 years
  • MaterialAluminum Alloy


Overseas Warehouse

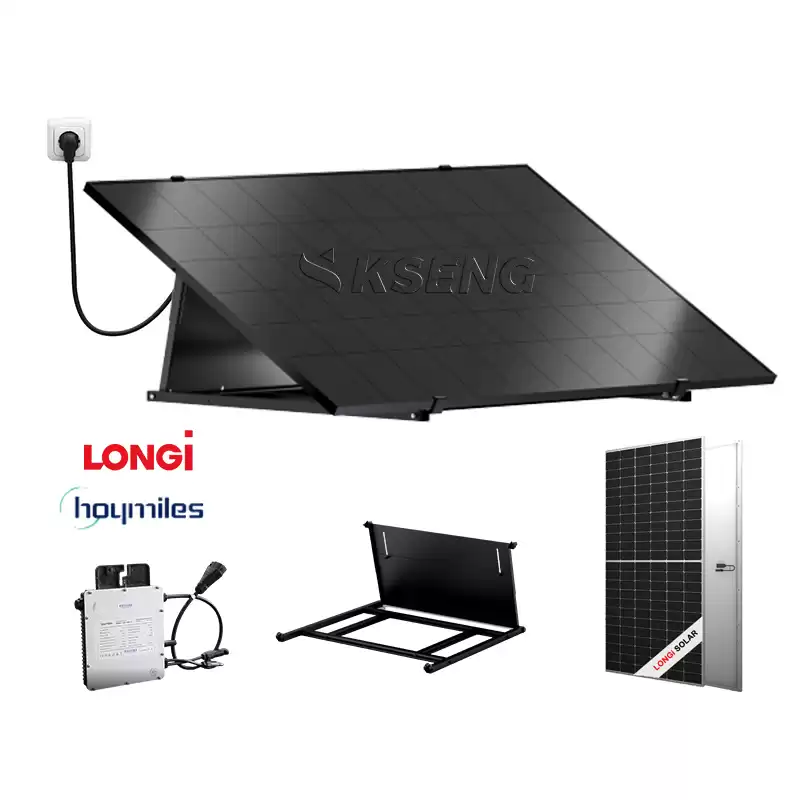

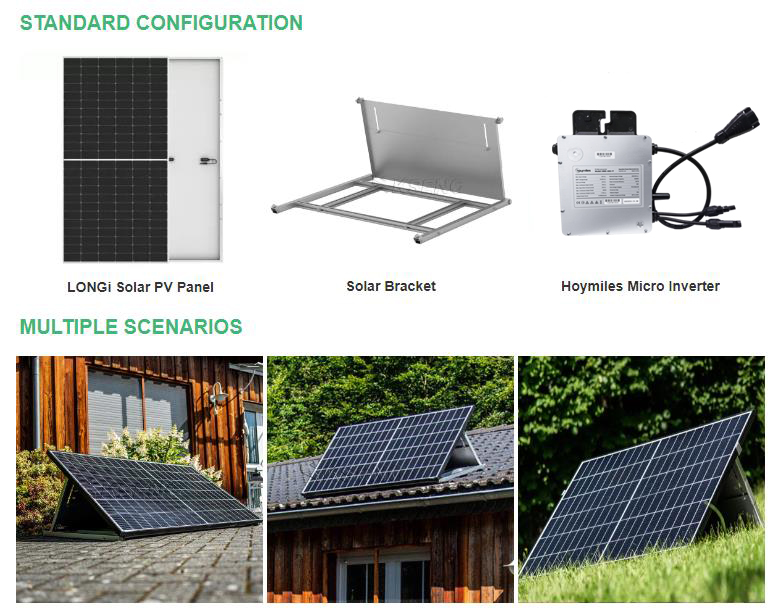

Easy Solar Kit System

Kseng easy solar kit is a plug ‒and-play system composed of solar panel, micro inverter and angle-ad justable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.



Advantages

1.Output Power Up To 500 VA
2.
Modular Design, No Debugging And Easy Installation
3.

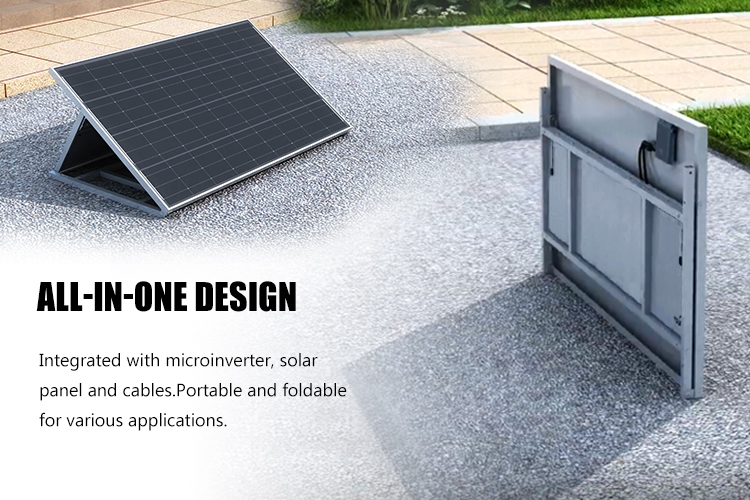

Various Scenes, Roof, Balcony and Garden
4
.App Cloud Monitoring, MPPT Controller To Optimize Power Generation Effiffifficiency
5.
12-Year Global Warranty


Products Description

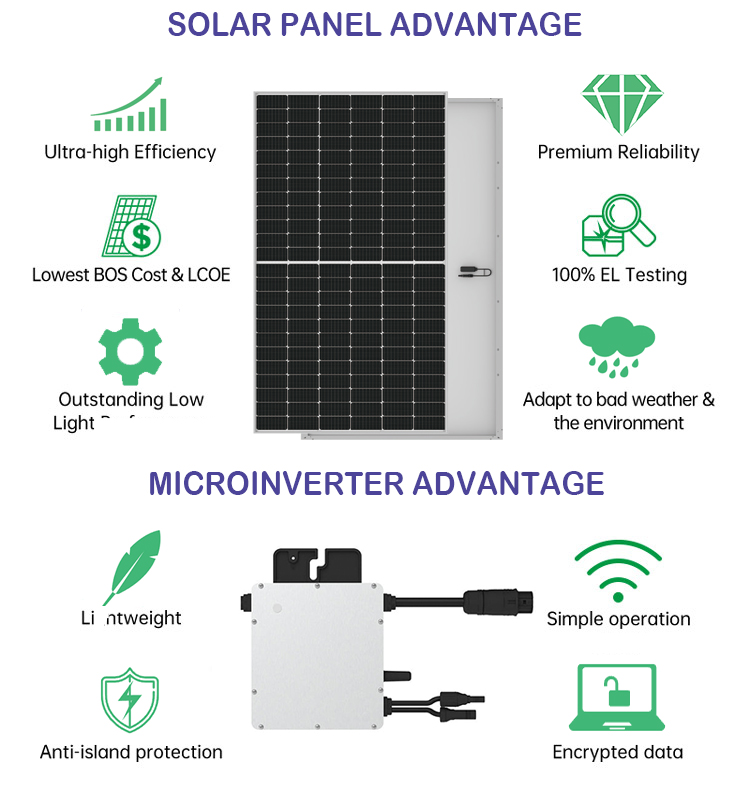

Solar PV Panel
Power:
410 W
Module efficiency:
21%
Current at maximum power:
13.12A
Glass:
Single glass, 3.2mm coated tempered glass
Frame:
Anodized aluminum alloy frame
Dimension:
1722 X 1134 X 30 mm
Weight:
20.8 kg
Micro Inverter
Recommended module power:
320 to 540 + W
Maximum Input current:
12.5 A
Rated output power:
400VA
Rated output current:
1.82 /1.74/1.67A
Output voltage/range:
220土10/ 180-275V
Dimensions:
182 X 164 X 30 mm
Weight:
1.75 kg
AC Extension Cable
Length of Cable:
2/3/5/ 10 m optional
Rated Voltage:
AC 230 V
Certificate:
VDE, CE
General Parameter
Environment protection rating:
IP67
Operating ambient temperature range:
-40to 60 °C
Relative humidity:
0 - 100 %




Product Tags Balkonkraftwerk 400w Plug And Play          plug and play solar panel          plug and play solar system          solar plug and play          all in one solar power system          easy solar kit all-in-one solution
