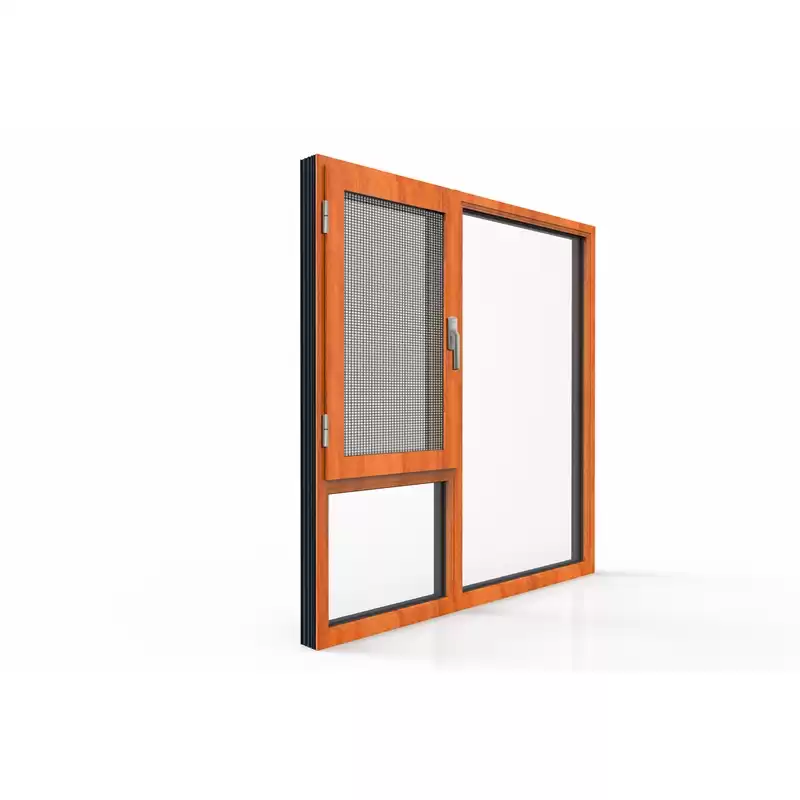

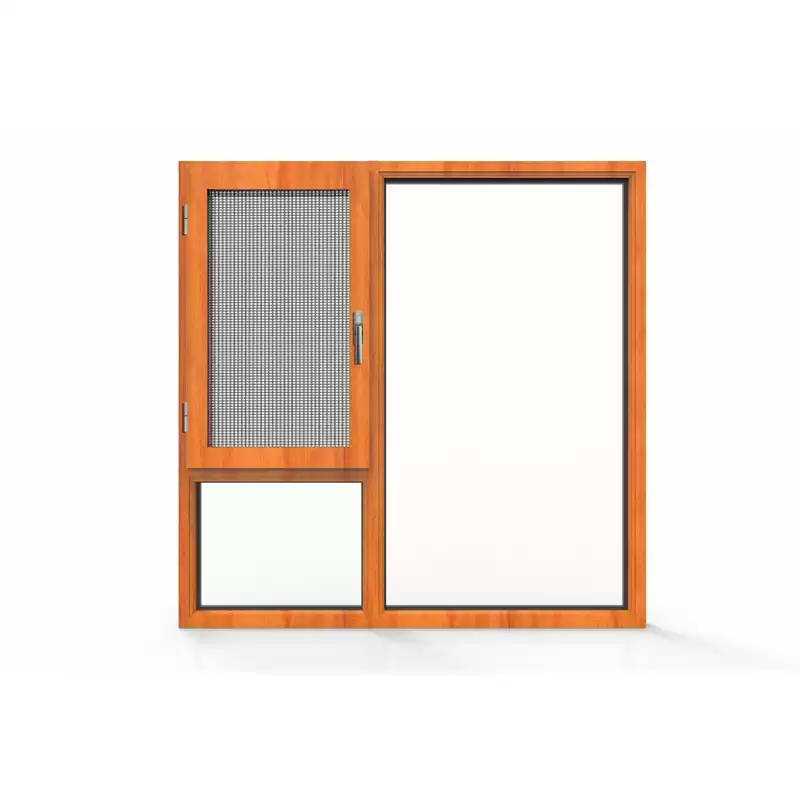

Eco Aluminium Clad Wooden Hinged Windows with Steel Fly Screen
Aluminum clad wood windows combine the best features of wood and aluminum into a second to none, premium system. The combination of superior craftsmanship, thermal performance and long-term durability make wood aluminum windows ideal for luxury homes, passive houses and modern architectural projects. With a solid wood frame clad in aluminum on the exterior, our windows deliver the beauty and cozy look inside that only nature can. A wide assortment of woods, glazing and color options mean you can customize them to meet your exact aesthetic, energy and security needs.
- The system is included security screen sash.
- Sash glass thickness up to 34mm

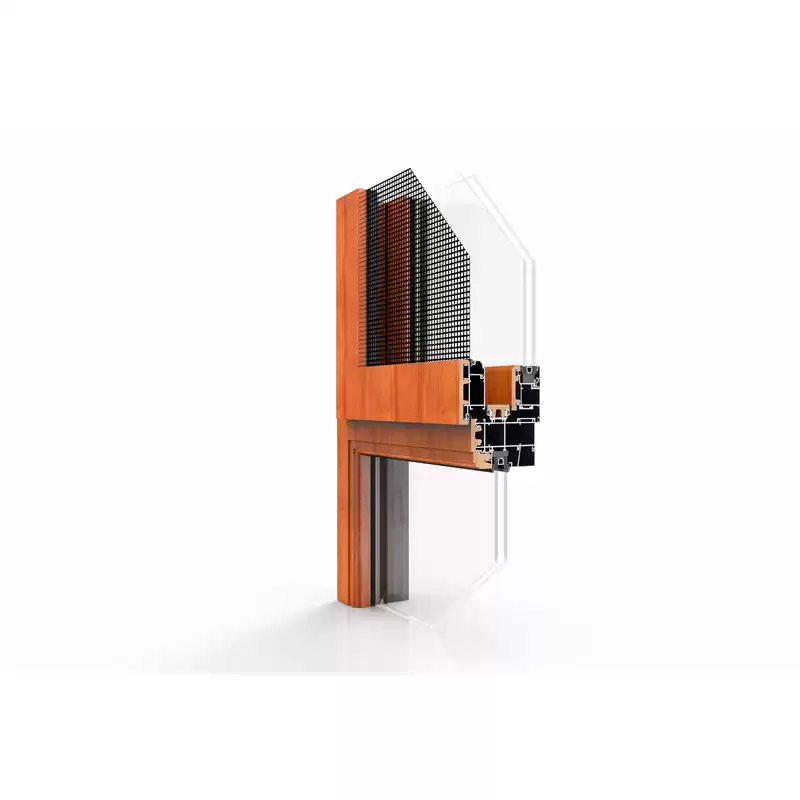

- The connection of aluminium and wooden part is installed with special clips which is easy to be replaced.
- The wooden material is ECO wooden which is avoided cracking, water absorption and inflammation.
| Parameters |
|
Suitable Width/Height of Sash
(mm)
|
Visible Width/Height
(mm)
|
Aluminium width
(mm)
|
Glass(Thickness) |
|
Outswing Casement Window
-Width 300-800mm
-Height 300-1800mm
-Weight 45kg
|
HCW100
Frame Width 41mm;
Sash Width 74mm.
|
HCW100
Frame Depth 100mm
Sash Depth 47mm
|
SGU:
4-10mm
DGU:
14-35mm
|
| Performance |
|
Heat Preservation Performance
W(m2.k)
|
Sound Insulation Performance
(DB)
|
Watertight Performance
(Pa)
|
Airtight Performance |
Wind Load Resistance
(KPA)
|
|
6+12A+6 Low-E,2.3-2.6,
level 5
|
35DB
level 4
|
500PA
level 5
|
level 6 |
4.1KPA
level 7
|
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
