Introduction

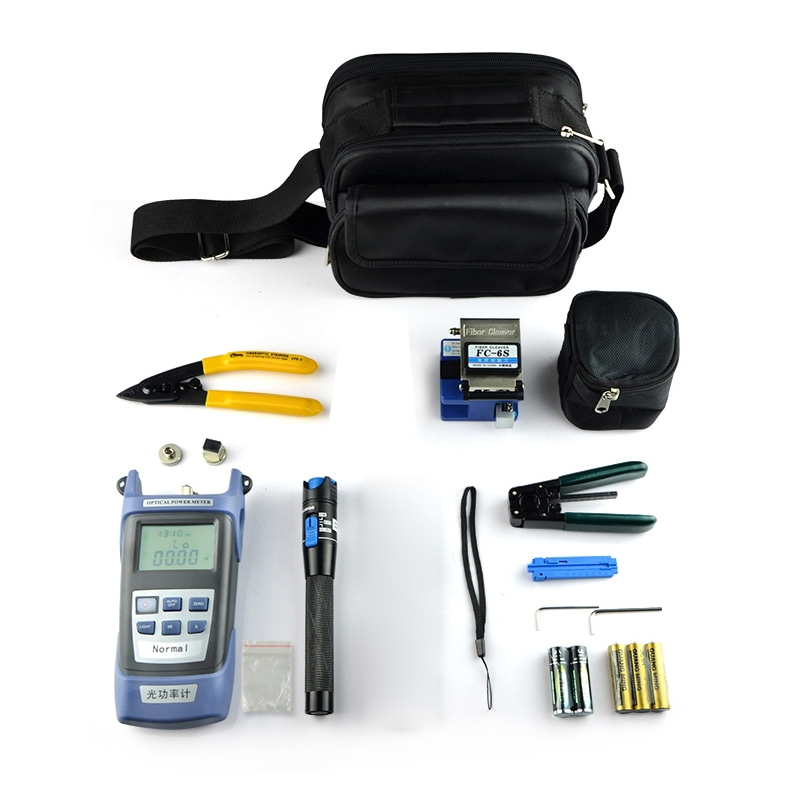

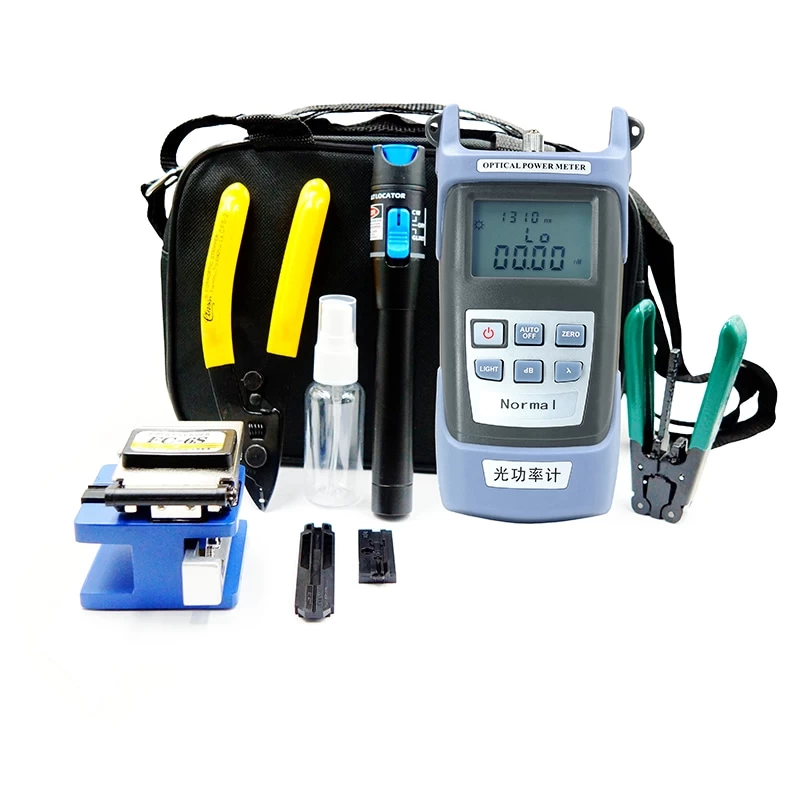

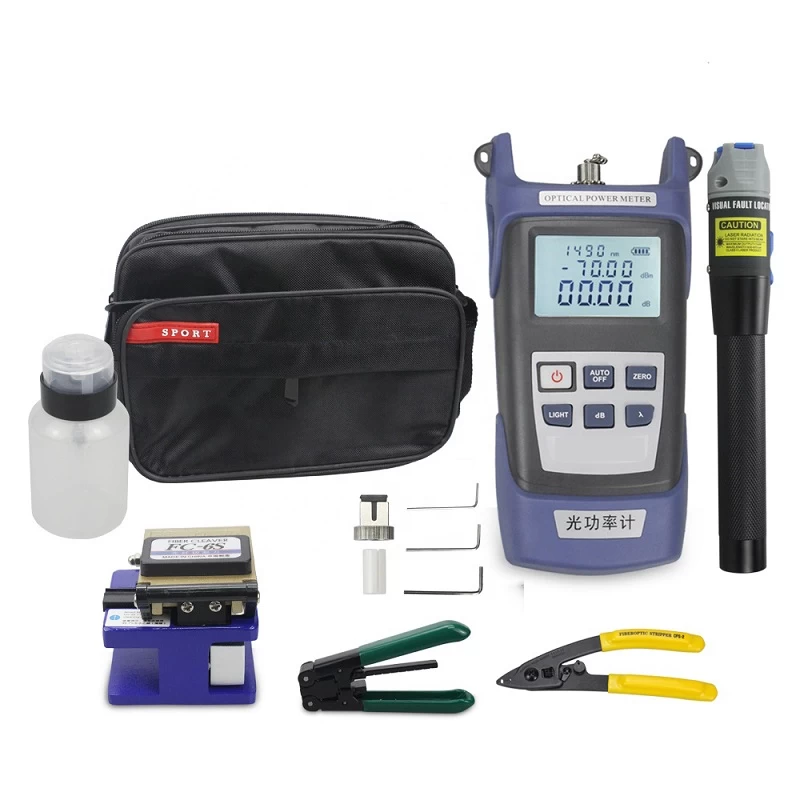

The Fiber Optic FTTH tool kit is a simple and convenient integration solution for FTTH fiber-to-the-home quick-connect construction, such as, stripping, fiber cutting, cleaning and testing. It is economical and practical, and is an ideal tool for construction operators.
Specifications
|
Model
|
Opitcal power meter-A
|
Optical power meter-B
|
|
Measurement range
|
-70~+10
|
-50~+26
|
|
Type of probe
|
InGaAs
|
|
Range of wave length
|
800~1700
|
|
Uncertainty
|
±5%
|
|
Standard wave length (nm)
|
850,980,1300,1310,1490,1550, 1625nm
|
|
Resolution
|
Linear indication: 0.1% Logarithmic indication: 0.01dBm
|
|
Working temperature (°C)
|
-10~+60
|
|
Storage temperature (°C)
|
-25~+70
|
|
Auto power-off time (min)
|
10min
|
|
Continuous working hours
|
At least 48 hours
|
|
Dimensions (mm)
|
190×100×48mm
|
|
Power supply
|
AA battery
|
|
Weight(g)
|
400g
|

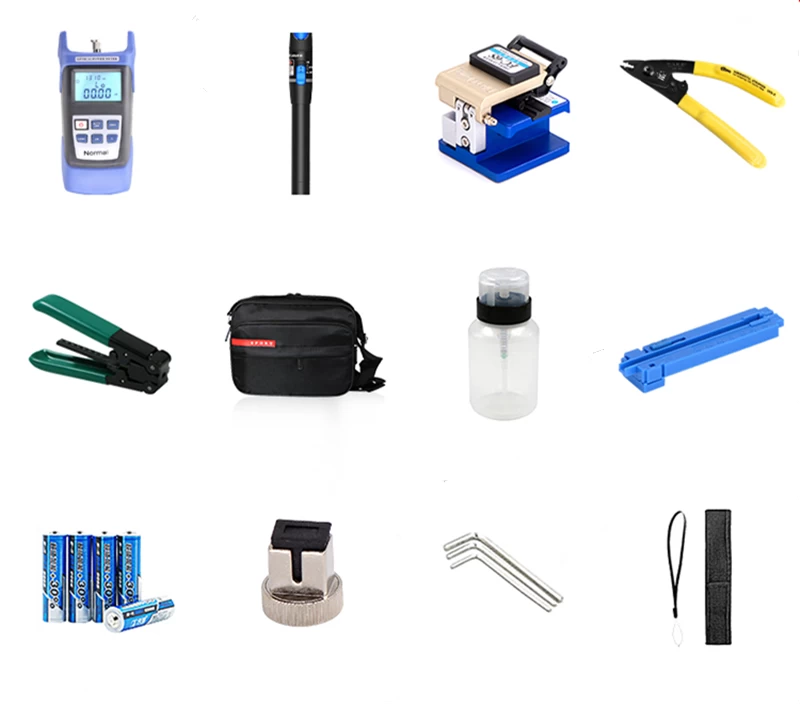

Item 1: Optical power meter
Color Orange or Blue optional,
Default measurement range: -70~+10dBm
Support SC, FC, ST connector,
Support testing for 7 kind of wavelength
Support regular shut down with backlight, automatic shut down
Item 2: Visual Fault locator 5KM
Optical pen/Red laser pointer 5km, other distance 10/20/30km optional
Imported laser head, High thermal conductivity
Aluninum alloy case, good durability
Item 3: FC-6S fiber cleaver
Imported refining tungsten steel blade , Automatic rebound
Precision Blade features 12 blade positions with 3,000 cleavers per position
Item 4: Miller Clamp
125um fiber coating layer for peeling
Top 1.98mm open hole stripping out shield
Item 5: Wire Stripper
Used for 3.1 x 2.0 mm rubber-insulated wire
Belt scale, fatigue resistance, pressure resistance
Item 6: Alcohol Bump Bottle
Offering empty plastic bottle

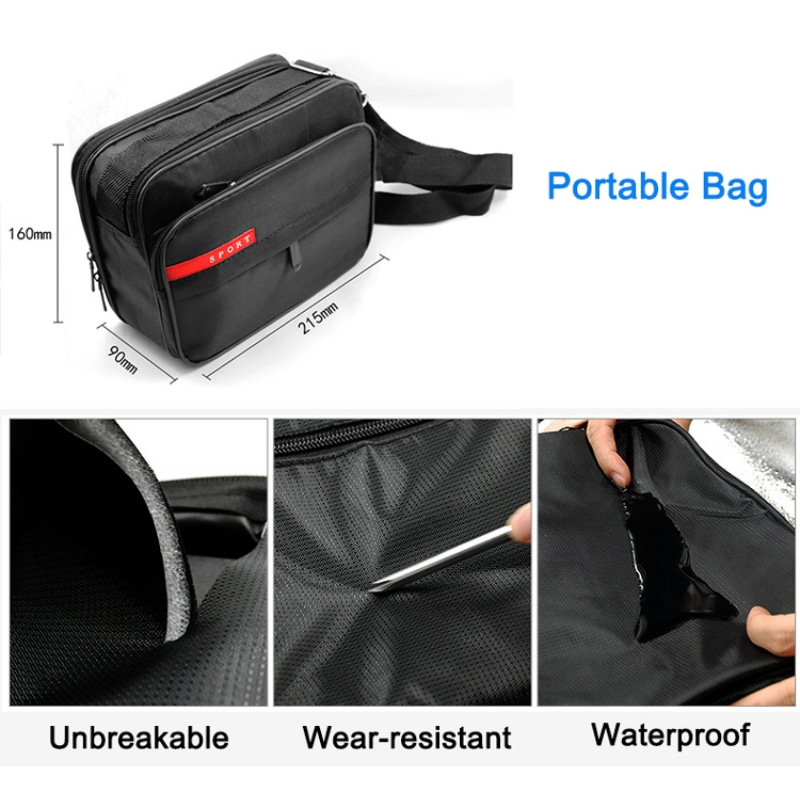

Item 7: Carry Bag
Portable bag/Toolkit, is made of high-density oxford fabric
Unbreakable, Wear-resistant, Waterproof
Item 8: Others
Other accessories, "L" Tool, FC Adapter, etc
