EITAI 5KW Home Solar Energy System

EITAI Commercial On-grid Solar System Three Phase  Solar Panel Europe Ground Solar Plant with Ground Mounting, Roof Mounting, Carport Mounting

  • Power range5-10KW
  • Warranty10years
  • CertificateTUV
  • Output TypeThere Phase
Facebook Twitter Pinterest LinkedIn 分享

EITAI PV Accessories Solar Panel System Home 5KW Grid Tied Solar Power System 6kw 8kw 10kw


On-grid solar system


Product Detail:


Model Number: On Grid Solar System

Application: HOME

Solar Panel Type: Monocrystalline Silicon

Output Frequency: 5060HZ

Work Time (h): No-Limited

Certificate: TUV

Inverter: Growatt On grid inverter

Brackets: Aluminum alloy bracket

Warranty: 3 years

Output Voltage: 220-240V Single Phase or 380V Three Phase

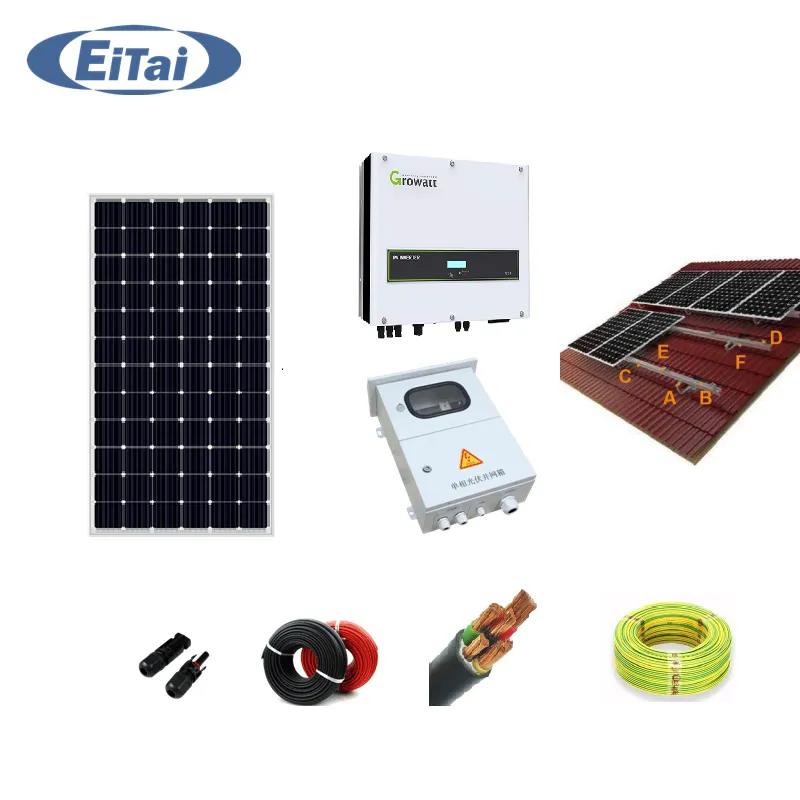

On-grid Solar System 5KW
Item
Description
Qty
Unit
Mounting Brackets
EITAI standard custmoized Roof Ground mounting kit
     1
     set
Solar Panel
MONO 380W
72 Cells
14
pcs
Solar Inverter
GROWATT
5000TL3-S
1

  set

DC Cable
1*4mm²
50
meters
AC Cabel
3*6mm²
20
meters
Ground Wire
 1*4mm², yellow green wire
30
meters
Connector
Waterproof
MC4
14
pairs
AC Combiner Box
Three Phase
1 in 1 out
1
set
Tool Box
PV wiring Tools
1
set
Package

Wooden box

1
set


Configuration Detail:



Mono Solar Panel


> Brand: EITAI

> Optional MonoPoly BlueBlack Panels

> 25 years Warranty

> Excellent mechanical load resistance

> PID Resistant,High salt and ammonia resistance

   On Grid Solar Inverter


   >  Brand:Growatt

   >  Power: 5KW

   >  Type: Single Phase On Grid

   >  Max.Efficiency 99.7%

   >  AC Output 220V

Grid Tied Solar Power System
Grid tied solar system

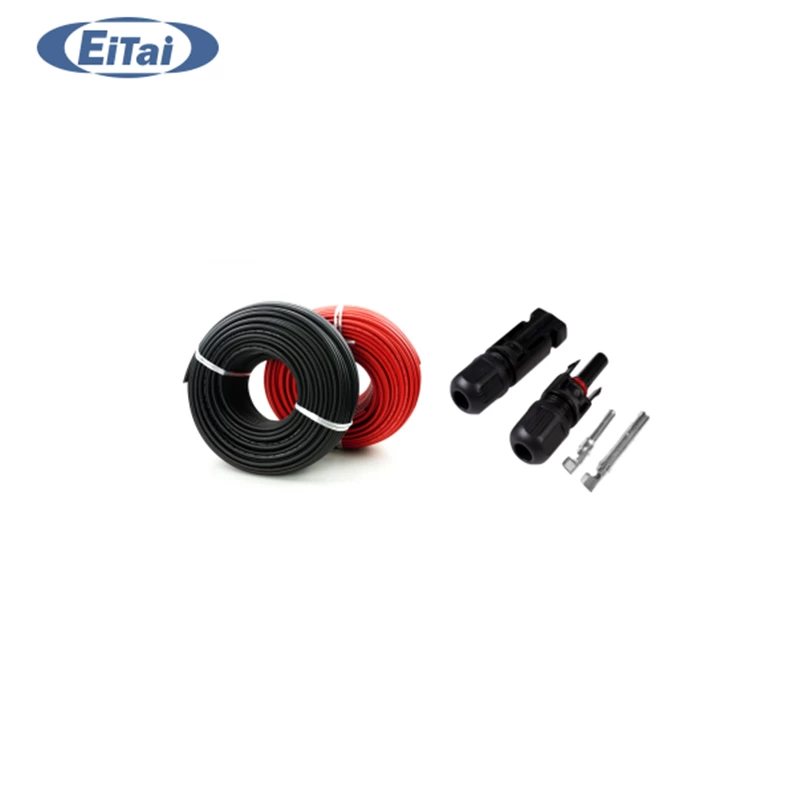

PV Cables& Connector


>DC Cable 4mm 6mm

>AC Cable

>MC4 Standard Connector


 AC Combiner Box



 >  Include FUSE,SPD,  Leakage

     Breaker etc.

 >  Protect Solar System


Home solar systems
On grid system solar

Solar Mounting System



> Customized for :Rooftop(FlatPitched), Ground , Carport etc

> Adjustable tile angle from 0 to 65 degree

> Tile roof: Aluminium type

> Compatible with all solar modules

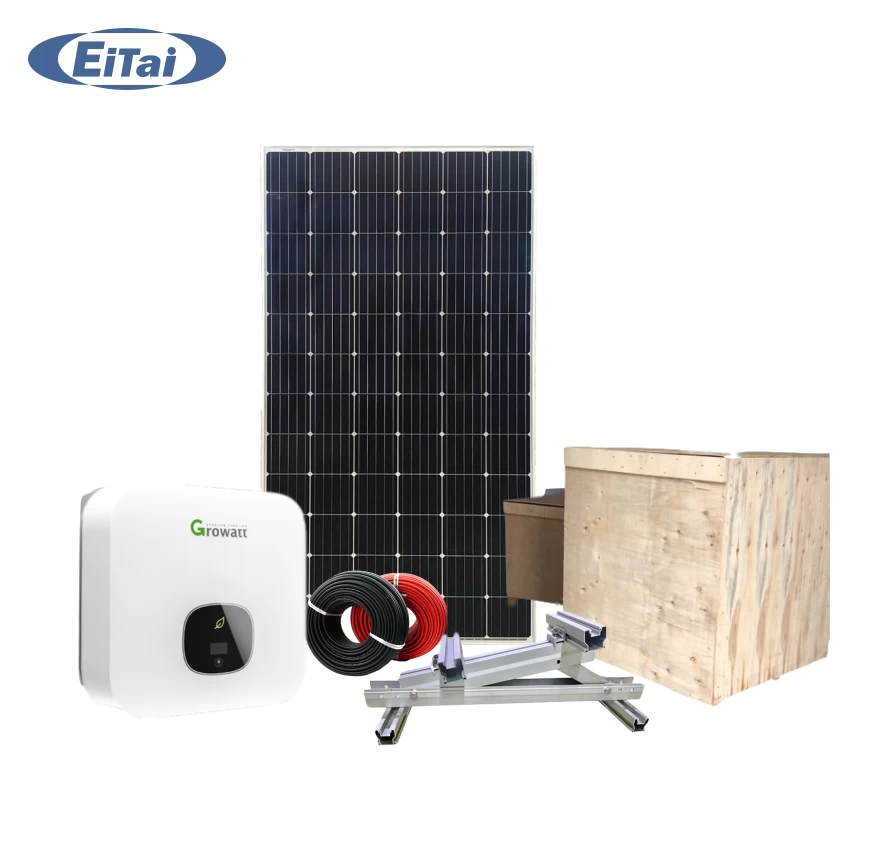

Product packaging :


Packing Details:Carton Packing

Delivery Details:12-30 days after place the order


Portable solar power system
