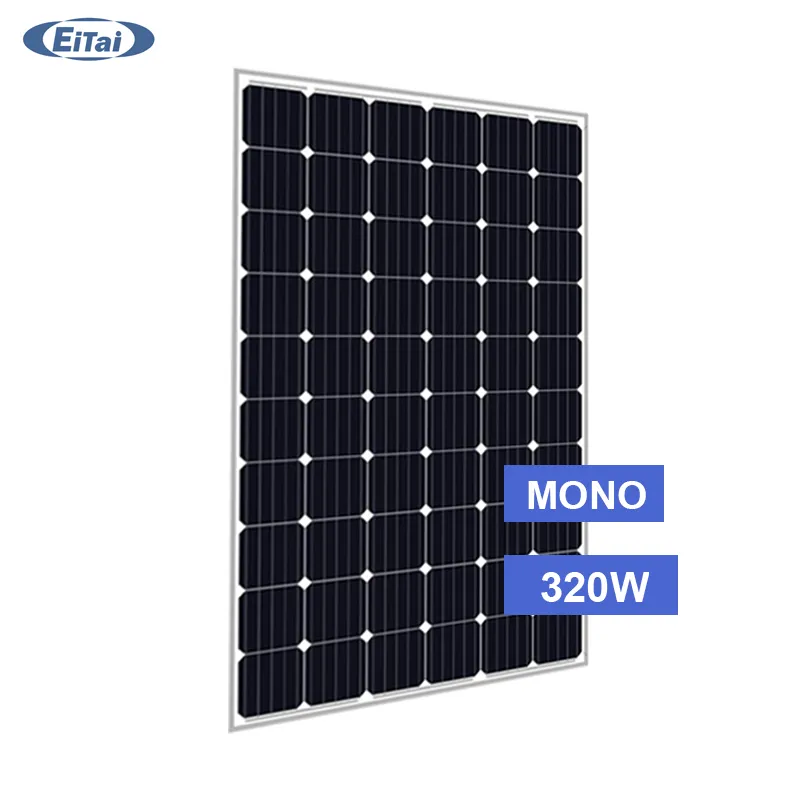

EITAI Photovoltaic Module 60cells Solar Panel
EITAI Solar Panel 320w Price Monocrystalline Solar Panel Mounting 5BB 60cells 300w 310w 320w 325w PV Module
OLY YCRYSTALLINE MODULEETP 310-350W(72)Mechanical Parameter
|
POLY YCRYSTALLINE MODULE
|
ETP 310-350W(72)
|
|
Mechanical Parameter
|
|
|
Encapsulation : Glass/EVA/Cell/EVA/Backsheet
|
|
Size and Number of cells : 156mm*156mm 72/6*12pcs
|
|
Weight(kg) : 20.3
|
|
Dimensions(L*W*H)：1956*992*40mm
|
|
Junction Box(protection degree)：≥IP67
|
|
Frane Thickness：40/'45/40mm
|
|
Frame Colour：Gold/Brown/Black/Silver
|
|
|
Temperature Coefficients
|
|
NOminal Operating Cell Temperature(NOCT)：45°C±2°C
|
|
Short Circuit Current Temperature Coefficients：
α（Isc)+0.045%/°C
|
|
Open Circuit Voltage Temperature Coefficents：
β（Voc) -0.292%/°C
|
|
Peak Power Temperature Coefficients：
γ（Pmax） -0.408%/°C
|
|
Output
|
|
Cable 4.0mm Length 900/1200mm Connector MC4 type
|
Specifications :
|
Module
|
ETM285-320W(60)
|
|
Maximum Power Pmax
|
W
|
285
|
290
|
295
|
300
|
305
|
310
|
320
|
|
Maximum Power Voltage(Vmp)
|
V
|
31.65
|
31.8
|
31.95
|
32.1
|
32.25
|
32.4
|
32.7
|
|
Maximum Power Current(Imp)
|
A
|
9
|
9.12
|
9.23
|
9.35
|
9.46
|
9.57
|
9.79
|
|
Open Circuit Voltage(Voc)
|
V
|
37.98
|
38.16
|
38.34
|
38.52
|
38.7
|
38.88
|
39.24
|
|
Short Circuit Current(Isc)
|
A
|
9.45
|
9.58
|
9.69
|
9.82
|
9.93
|
10.05
|
10.28
|
|
Cell Efficiency
|
%
|
19.91
|
20.26
|
20.61
|
20.97
|
21.31
|
21.66
|
22.36
|
|
Module Efficiency
|
%
|
17.7
|
18.01
|
18.32
|
18.63
|
18.94
|
19.25
|
19.87
|
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
Product Application :
Category : Solar Panel
Product Case :
Package :
- Corrgurate paper box with pallet/ wooden box
- 26pcs per pallet/ customized wooden box size
- 260pcs per 20ft, 624pcs per 40hq
Delivery way :
Recommend by SEA/ AIR/ RAILROAD/ ROAD
