EITAI Solar Panels 300w Poly Panel PV Module
Eitai Hot Sale Europe Warehouse Stock Poly 285w 290W 300W Photovoltaic Pv Solar Panels
Ploy Specifications :
|
Module
|
ETP260-290W(60)
|
|
Maximum Power Pmax
|
W
|
260
|
270
|
275
|
280
|
290
|
300
|
|
Maximum Power Voltage(Vmp)
|
V
|
31.2
|
31.5
|
31.8
|
32.1
|
32.3
|
32.35
|
|
Maximum Power Current(Imp)
|
A
|
8.33
|
8.57
|
8.65
|
8.87
|
8.98
|
9.23
|
|
Open Circuit Voltage(Voc)
|
V
|
37.44
|
37.8
|
38.16
|
38.52
|
38.76
|
39
|
|
Short Circuit Current(Isc)
|
A
|
8.75
|
9
|
9.08
|
9.16
|
9.43
|
9.69
|
|
Cell Efficiency
|
%
|
18.4
|
18.88
|
19.21
|
19.6
|
20.02
|
20.44
|
|
Module Efficiency
|
%
|
15.98
|
16.6
|
16.9
|
17.21
|
17.83
|
18.48
|
|
Tolerance
|
0+3%
|
|
Max System Open Circuit Voltage
|
1500V
|
|
Max Series Fuse Rating
|
15A
|
|
Operate Temperture Scope
|
-40/+85°C
|
|
Relative Humidity
|
0~100%
|
|
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|
|
Tolerance of Pmpp:0~3%.Certified in accordance with IEC61215,IEC61730-1/2.
|
Show details :
|
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
|
|
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
|
|
|
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
|
|
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
|
|

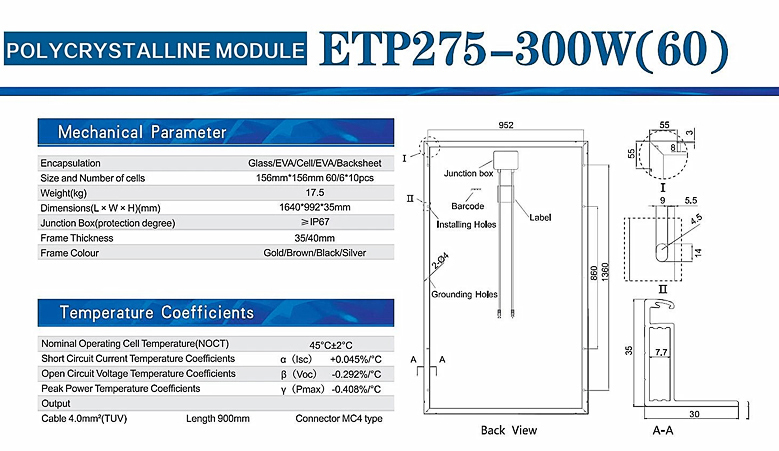

Dimensions

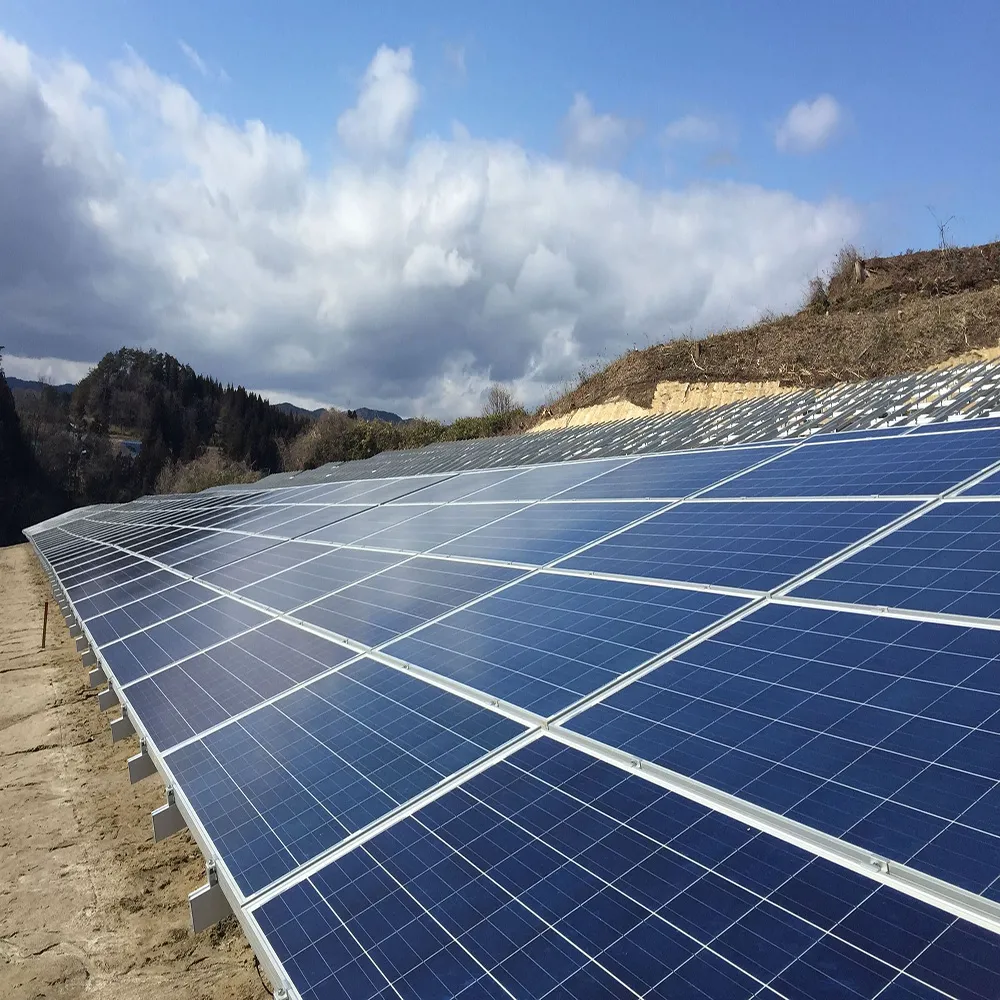

Product Application :
Category : Solar Panel

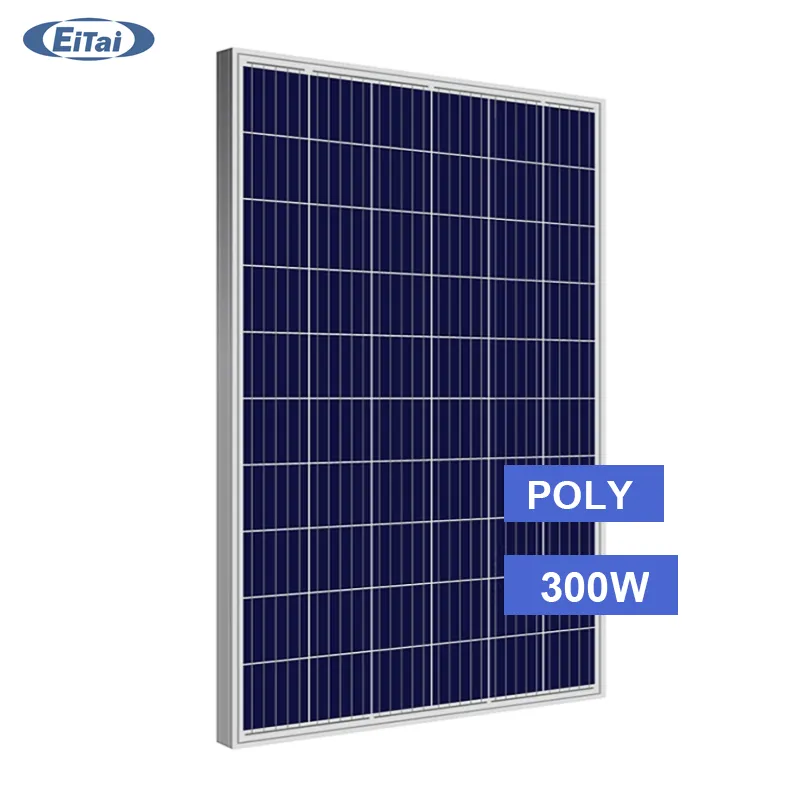

Product Display :
