Electric Air Cooled 12V/24V Radiator Ventilation Blower

Lightweight, low energy consumption, and  long service life. This blower fan offer Concentrated airflow is suitable for 3D printer, humidifier and other small appliances cooling. Also it will be your first chooice when you need fan replacement.




High Speed Radiator 12V 24V DC Brushless Silent Centrifugal Fans Air Blower. It's approved by UL/CE, as well as in compliance with RoHS requirement.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 97 mm(L) x 97 mm(W) x 33 mm(H) / The size of fan in inch is 3.91 in(L) x 3.91 in(W) x 1.30 in(H); The center to center distance beween the mountiong holes is 99.5 ± 0.3 mm / 3.91 in.
  • Operating Voltage Range: DC 12V/24V | Current: 0.10 ~ 0.40 Amp | Speed: 2000 ~ 3000 RPM | Airflow: 15.40 ~ 22.57 CFM | Noise: 35 ~ 45 dBA | Pressure: 4.90 ~ 13.30 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

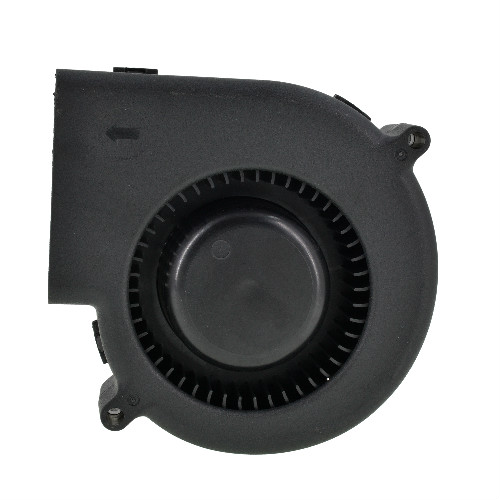

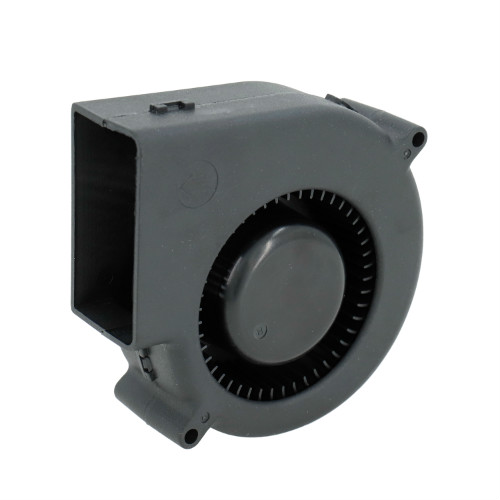

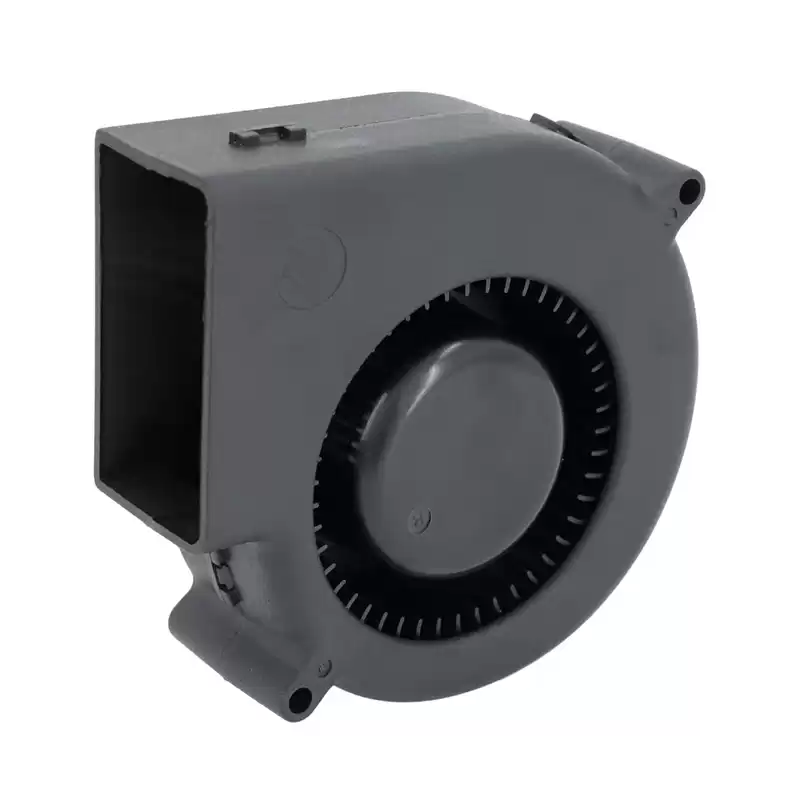

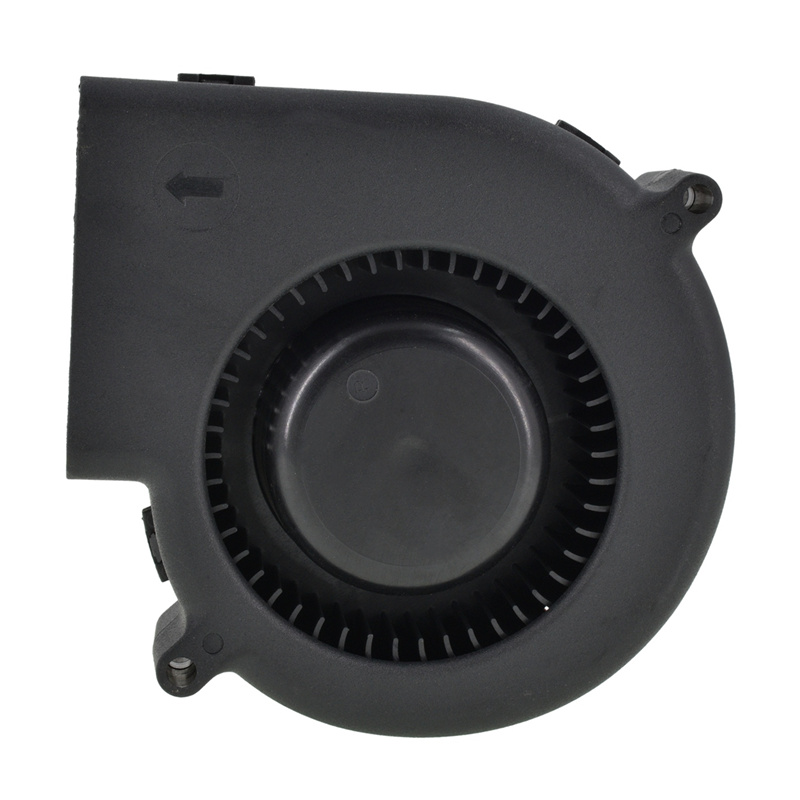

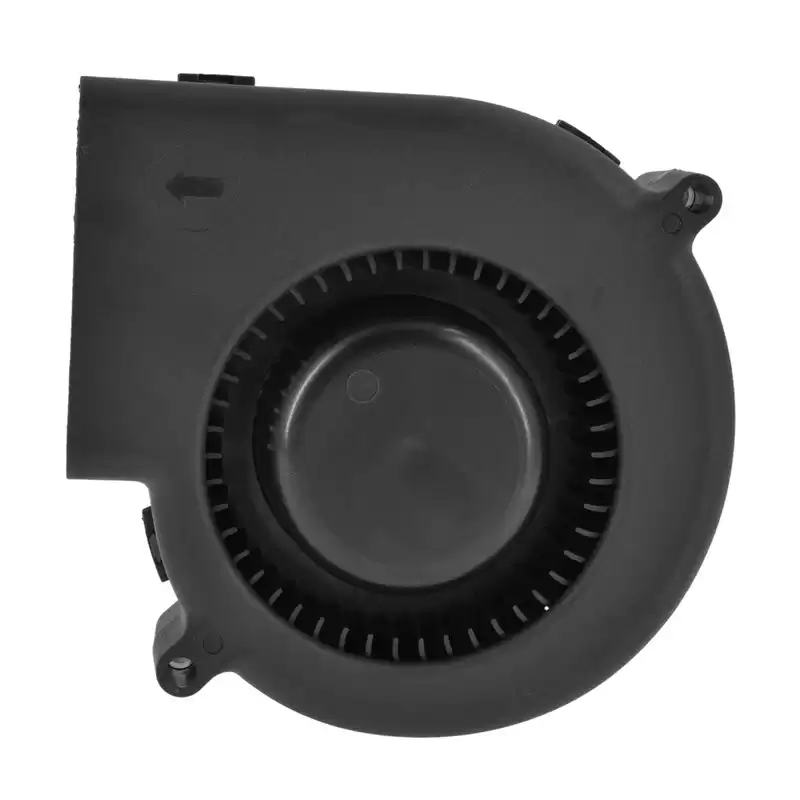

DC BLOWER FAN 97x97x33mm(3.91"x3.91"x1.30")



 97x97x33mm dc fan blower 12v 24v mini blower fan

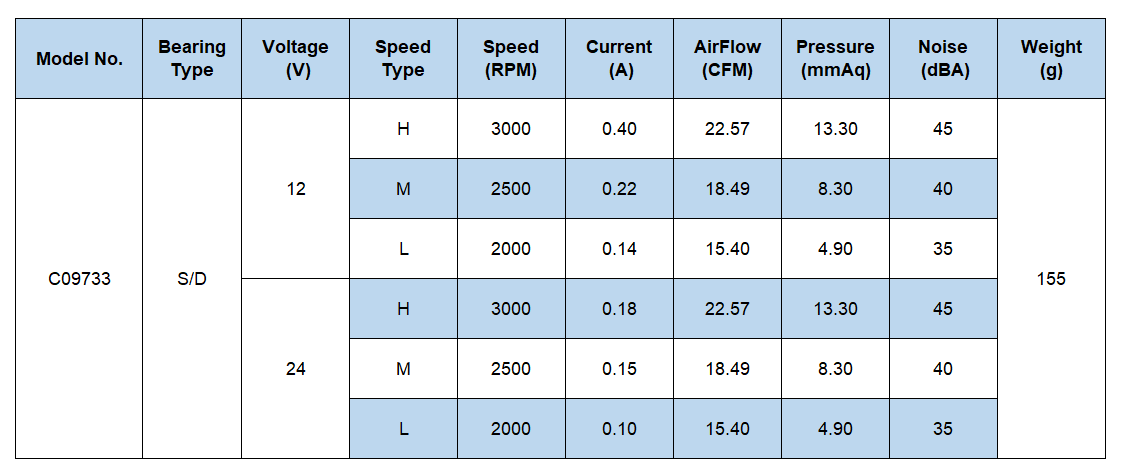

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


high speed 3000rpm blower fan

    9733 brushless centrifugal blower

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Short Production Time & Prompt Delivery;
  • All products are RoHS compliant and impedance protected;
  • High energy saving, high efficiency, low vibration, low noise;
  • DC blower fan with ball bearings system has a lifespan of 67,000 hours;
  • PBT housing and blade ensures a wide operation temperature ranged from -10℃ to +70℃;



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Blower C04020 40x40x20mm(1.57"x1.57"x0.78") DC Blower C06015B 60x60x15mm(2.36"x2.36"x0.59")
C05015 50x50x15mm(1.96"x1.96"x0.59") C07525 75x75x25mm(2.95"x2.95"x0.98")
C05025 50x50x25mm(1.97"x1.97"x0.98") C07530 75x75x30mm(2.95"x2.95"x1.18")
C05828 58x58x28mm(2.28"x2.28"x1.10") C09733 97x97x33mm(3.91"x3.91"x1.30")
C06015A 60x60x15mm(2.36"x2.36"x0.59") C12032 120x120x32mm(4.72"x4.72"x1.26")



Application

Our DC blower products are mainly used for ventilation and heat dissipation of equipment and instruments. Related fields include household appliances, projectors, medical equipment, oxygen generator, smart toilets, air purifiers, new energy, etc.

DC brushless 12v blower fan

  • Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
  • Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
