Electric Air Radiator 2500rpm Frameless Bracket Fan

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation, the impeller was designed with a focus on minimzing the noise level. Soft material silicone feet provide better shock absorption.




Long Lifetime 12V DC Brushless Air Cooler Frameless Bracket Ccentrifugal Fan. It's the perfect partner for space-constrained and noise sensitive applications.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 92 mm(L) x 92 mm(W) x 25 mm(H) / The size of fan in inch is 3.62 in(L) x 3.62 in(W) x 0.98 in(H).

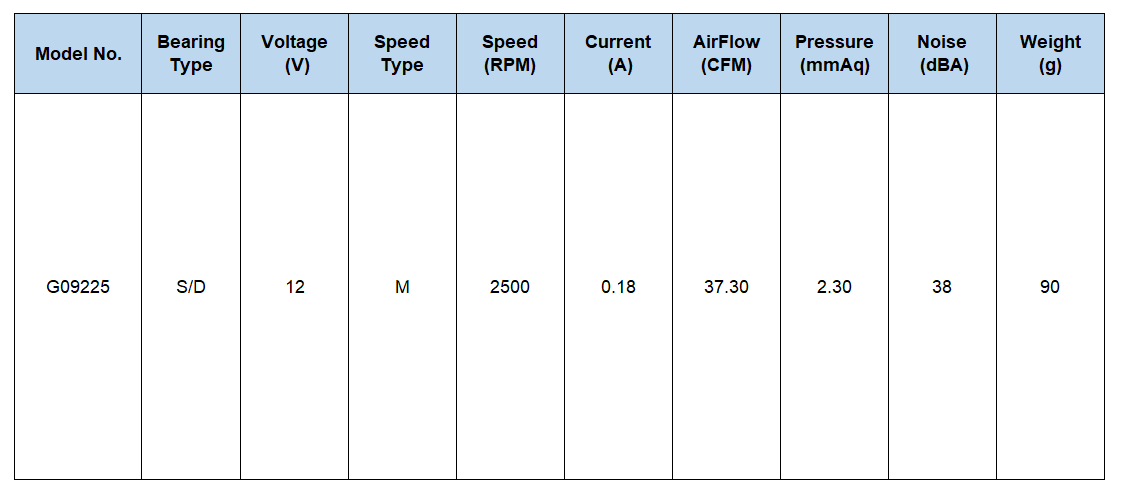

  • Operating Voltage Range: DC 12V | Current: 0.18 Amp | Speed: 2500 RPM | Airflow: 37.30 CFM | Noise: 38 dBA | Pressure: 2.30 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

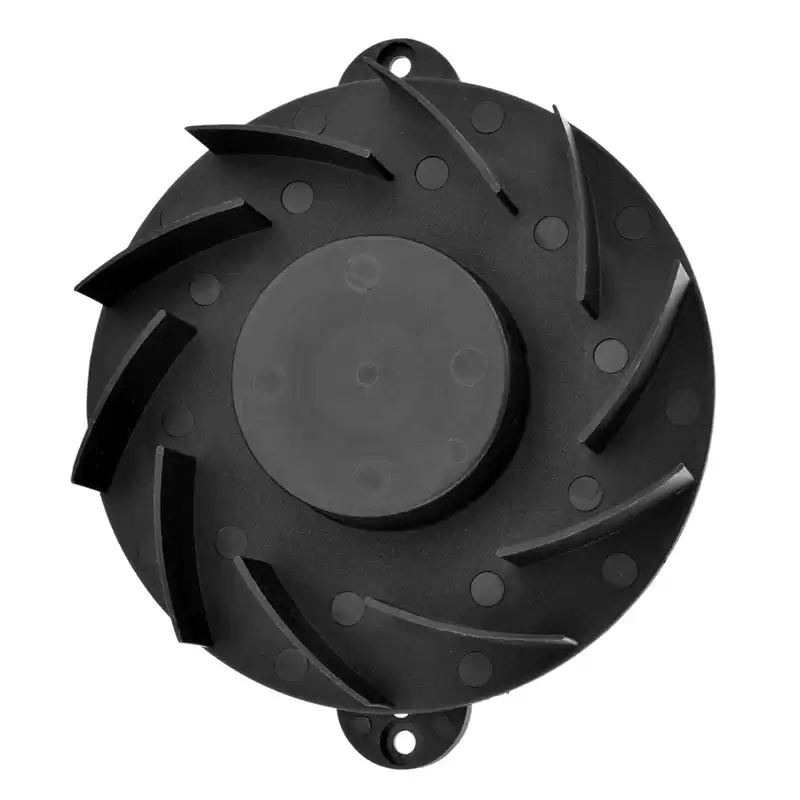

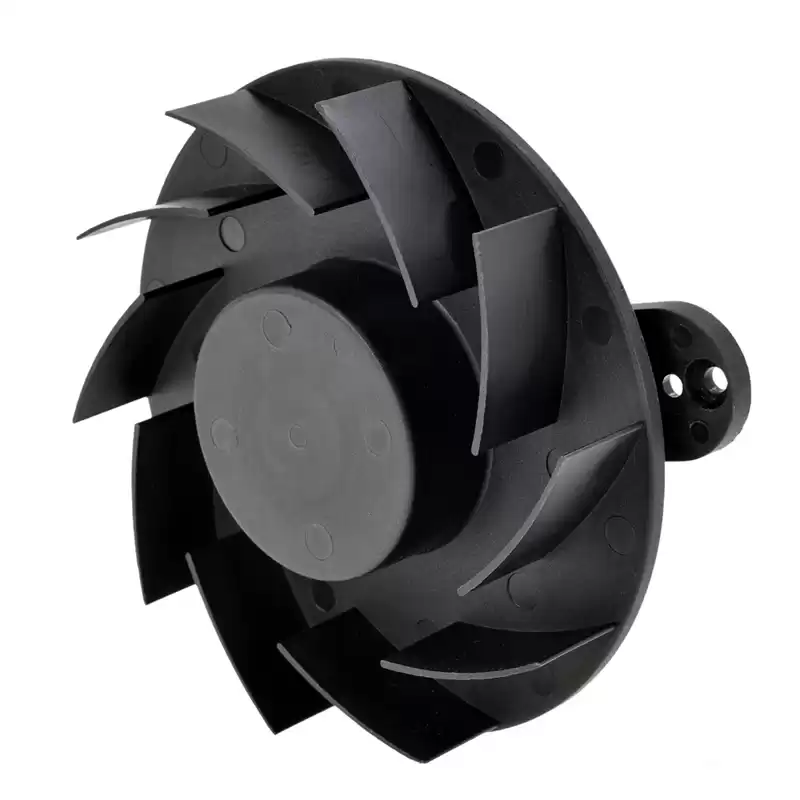

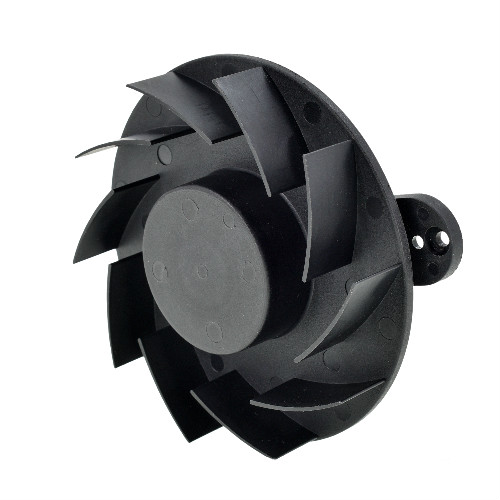

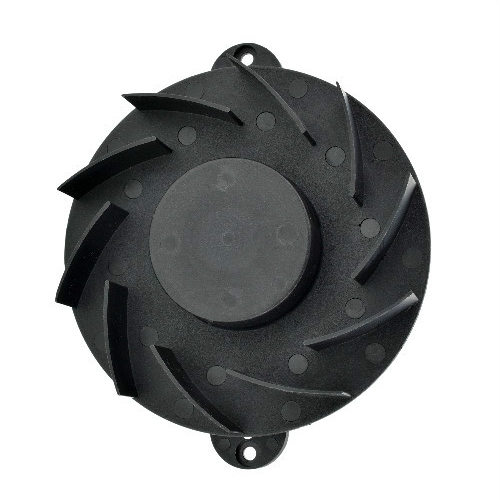

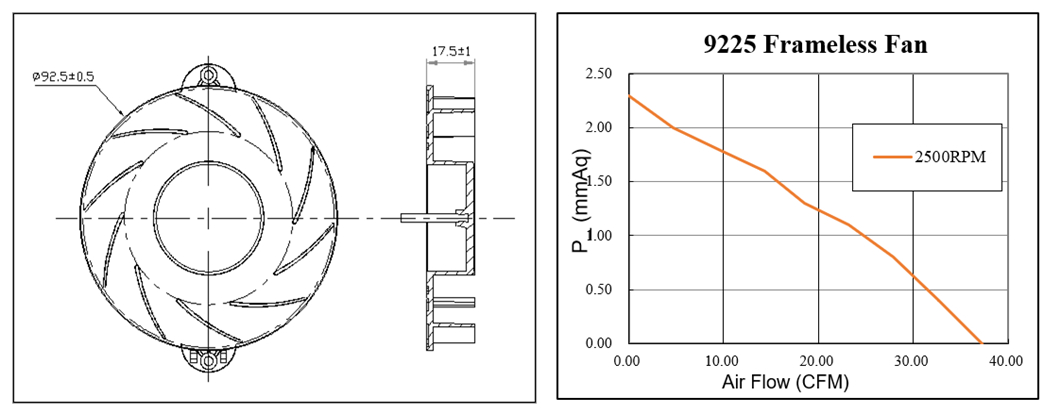

DC FRAMELESS BRACKET FAN φ92*25mm



 dc brushless air circulation centrifugal fan 9225 dc centrifugal flow fan


General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


12vdc brushless centrifugal fan

    centrifugal dc cooling fan 92x92x25mm

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Most our products has been approved by UL&CE;
  • Outstanding airflow performance with low static pressure;
  • Controllable versatility, high speed of 2200RPM in operation;
  • The frameless fan made of high-quality PBT material, is not easy to be deformed;
  • Lightweight, providing the most efficient cooling for applications with extremely limited space.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size
DC FRAMELESS BRACKET FAN G09225 φ92x25mm
G11030 φ110x30mm
G12030 φ120x30mm
G12040A φ120x40mm
G12040B
G12040C
G12540 φ125x40mm
G14044 φ140x44mm



Application

DC frameless bracket fan can be used for ventilation and heat dissipation in many applications such as detectors, cleaning machines, pipeline cameras, aromatherapy machines, air purifiers, etc.

12v dc brushless centrifugal fan

  • Customized items related to cooling systems such as refrigerators, humidifiers, air purifiers, power supplies, radiators and electric welding machines, ect.
  • Create a cooling system to keep the ventilation system of household appliances, computers, power supplies and other electronic equipment running at the ideal temperature and the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
