Electric Brushless AC Shaded Pole Fan Asynchronous Motor

The shaded pole motor features stable structure, reliable operation, low noise and no electromagnetic interference.




The shaded pole motor is the simplest type of single phase induction. The motor's stator assembly is composed of an iron core, the main winding and the auxiliary winding. The auxiliary winding is the short-circuit ring, whose function is to phase the magnetic potential covered by the short-circuit ring, forming an elliptical magnetic field to generate directional starting torque, thereby starting the motor.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.
  • Dimension of the motor is 82 mm(L) x 20 mm(H) / The size of fan in inch is 3.22 in(L) x 0.78 in(H).
  • Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
  • Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

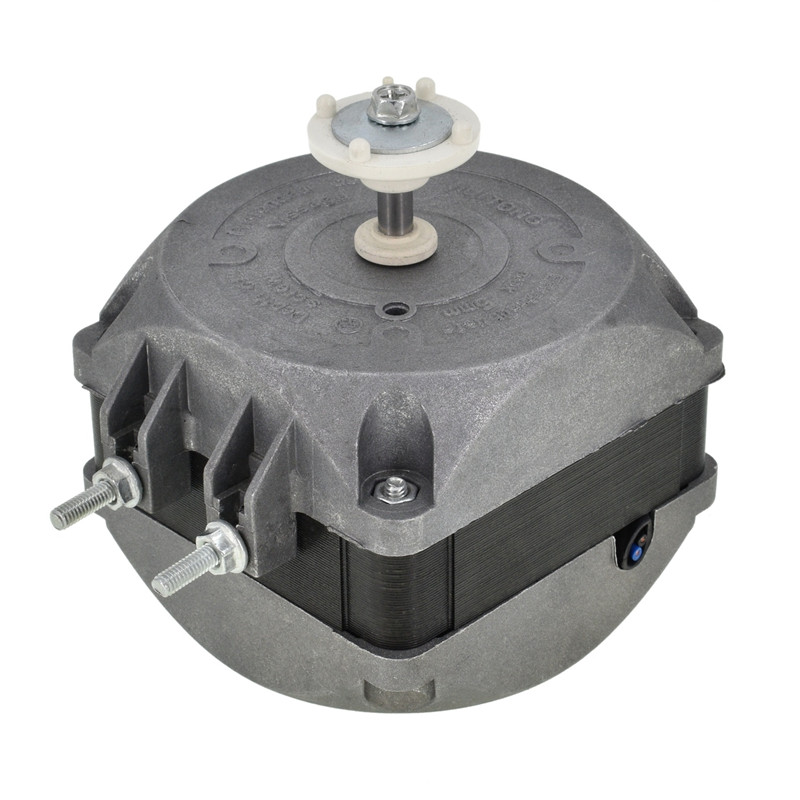

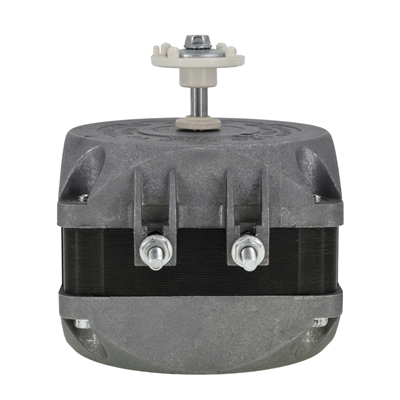

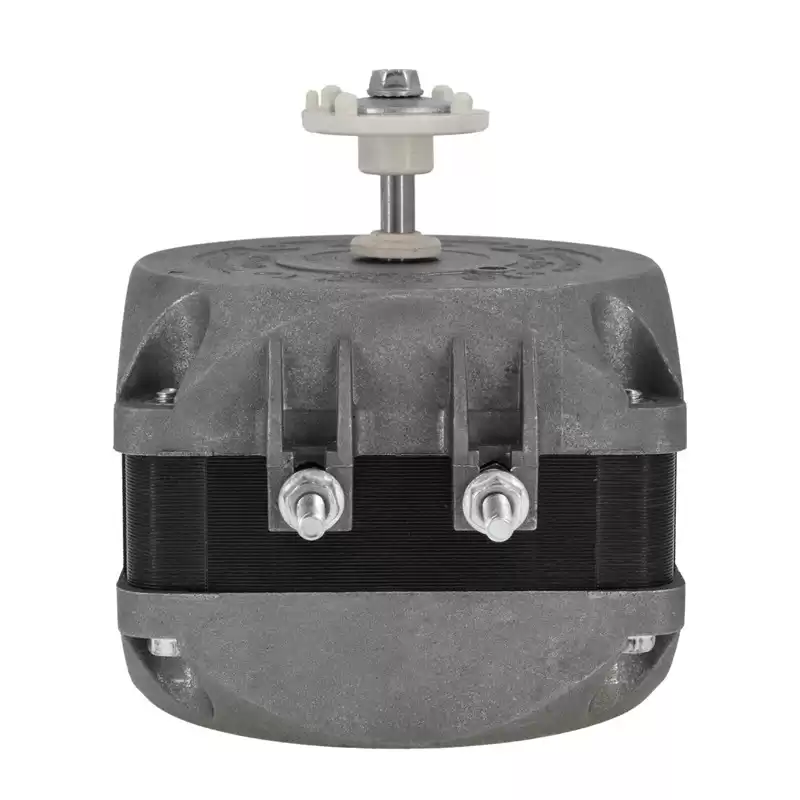

AC Shaded Pole Motor Z8220

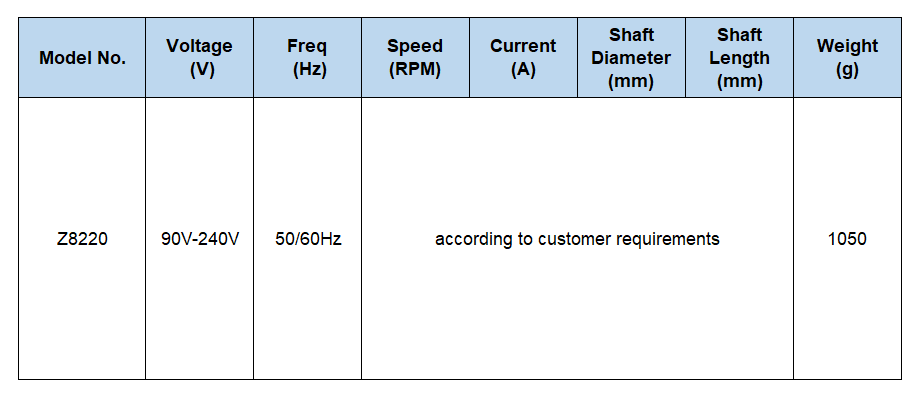

General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing





·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Features sleeve/ball bearing, can be work very quiet and silent;
  • Type of electric current is AC, high efficiency with excellent performance;
  • Long life span more than 50,000 hours when operated in room temperature;
  • AC shaded pole motor, which has passed strict waterproof and dustproof test;
  • Numerous sizes can meet the needs of customers and have a wide range of applications.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Type Model
AC Shaded Pole Motor Z4815 DC Brushless Motor M25-20
Z6110 M38-20
Z6120 M6830
Z6130
Z8213
Z8220



Application

The shaded pole motors are widely used in underloaded startup: such as range hoods, exhaust fans, air heaters, air purifiers, humidifiers, microwave ovens, ovens, wall mount boilers, sprayers, refrigerators, water pumps, oil pumps, medical equipment, etc.

  • Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
  • Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

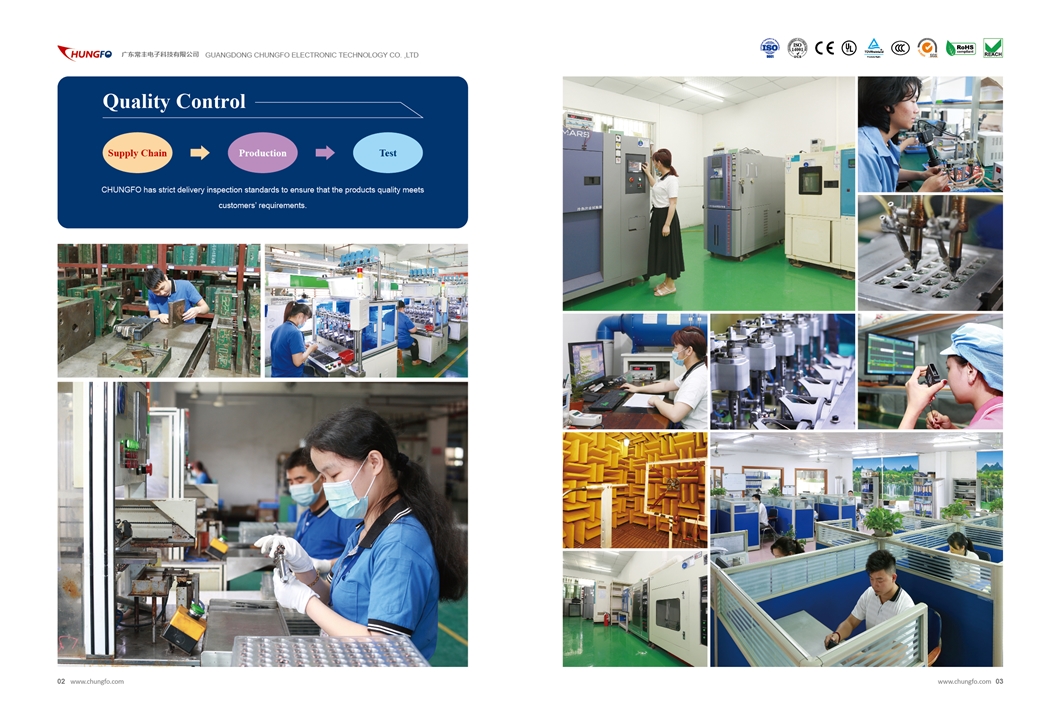

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
