Our latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying. Easy to install,and set aside a mechanical emergency unlocking position.
Self Elastic Design,suitable for weight 0.5~4kg door.
Product Description
|
Brand
|
Landa
|
Model Number
|
SHL-7757L-12I06
|
|
Rated Voltage (V)
|
DC 12/24
|
Rated Power(W)
|
24
|
|
Work Model
|
Latch
|
Reset Time(s)
|
0.2s
|
|
Service Life
|
500 Thousand Times
|
Certification
|
CE,ROHS,ISO9001,UL
|
|
Material
|
Stainless steel
|
Lead Wire Length(mm)
|
200
|
|
Install Style
|
screw
|
Tolerance of Dimension
|
gb/t1804-m
|
|
Water-proof
|
IP65
|
Insulation Class
|
B
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Max. power-on time(s)
|
2
|
|
Working Temperature
|
-5°C-55°C
|
Duty Cycle
|
10%
|
|
Temperature Rise
|
Max. 65°C under rated voltage
|
Payment Term
|
TT,PAYPAL
|
|
Sample Order
|
Yes
|
Warranty
|
1 Year
|
|
MOQ
|
1000 pcs
|
Supply Ability
|
10000 pcs per Week
|
|
Delivery Time
|
7 Days
|
Port of Loading
|
Zhongshan
|
Features
1. Made of high quality pure carbon steel, electrophoretic paint surface treatment, corrosion resistance
2. Adjustable elasticity, suitable cabinet door, automatically popped open with power on
3. Size:80*59*13 (mm). Easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position
Specifications Dimension: 80*59*13 (mm)
Working mode: independent (power-off door locking, power-on instant trigger open lock)
Service life: more than 500 thousand times under rated working conditions,the locking hook can carry 150 kg class pull without obvious deformation
Certification: CE, ROHS, ISO9001, UL. 11 years of designing and producing experience, good quality, best service, competitive price

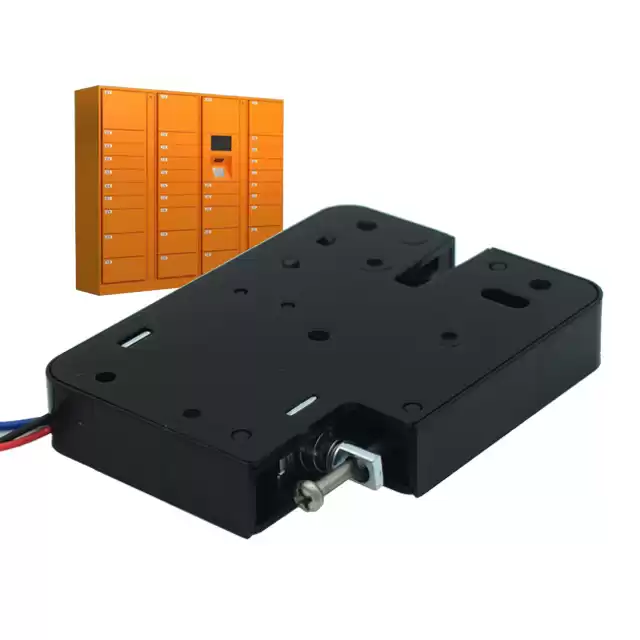

Widely use:widely used in Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Counter, Changing Clothes Cabinet etc
