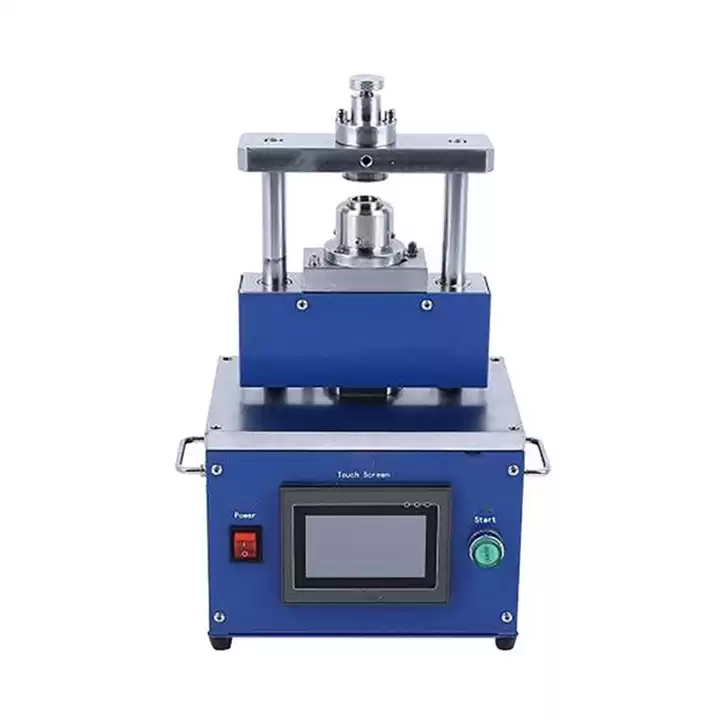

Electric Coin Cell Crimping Machine


It's used for various of button cell electric crimping .
Standard configuration can be used for disassembling CR20 series of coin cell. The machine has the advantages like small dimensions, easy operation, stable crimping , etc. Equipped with different moulds

can also be used for other works like powder pressing ,button cell disassembing etc .

1.Electric operation with touch screen .
2.High precision moudel design to ensure stabe sealing
3.Simple to change crimping die .

4.Small size can be put into glovebox through φ360 antechamber.

We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!



Power

110 - 240V AC 50/60Hz for universal use
24V DC motor with reducing gear, 20W

Die Set & Compatibility

Assembling dies for crimping CR2032, CR2025, & CR2016 coin

cells (Optional CR2325, CR2450 die sets are available upon request).

Pressure

1. The pressure applied to seal the cell case is pre-set to a

constant pressure at about 800 kg before shipping.
2. Pressure adjustment knob at the top can be used to adjust

the pressure applied to the negative cap of the cell  to prevent

case deformation.

Structure

Heavy Duty Steel Platform

Protection Shield

Protection shield / enclosure (plexiglass) with safety interlock is

installed

Product Dimensions

250mm(L) x 150mm(W) x 450mm(H)

Compliance

CE

Warranty

Two years limited warranty with lifetime support

Maintenance Notes & Warnings

1. Electrolytes are highly corrosive materials.The die set must be

cleaned with alcohol after each use to avoid corrosion
2. The PTFE die (found at the top die) ejects the cell casing after

crimping via spring loaded pressure. Do NOT over tighten the

pressure adjustment knob to avoid damaging this PTFE die.
3.To set the proper pressure on the die, loosen the knob all the way

 until the spring compression is no longer stressed. Then start tightening the knob and stop turning it once the

 spring compression is felt.
4.This will prevent the PTFE die from becoming deformed by being

subjected to excessive pressure.

Net Weight

32 kg

Shipping Weight

46 kg
