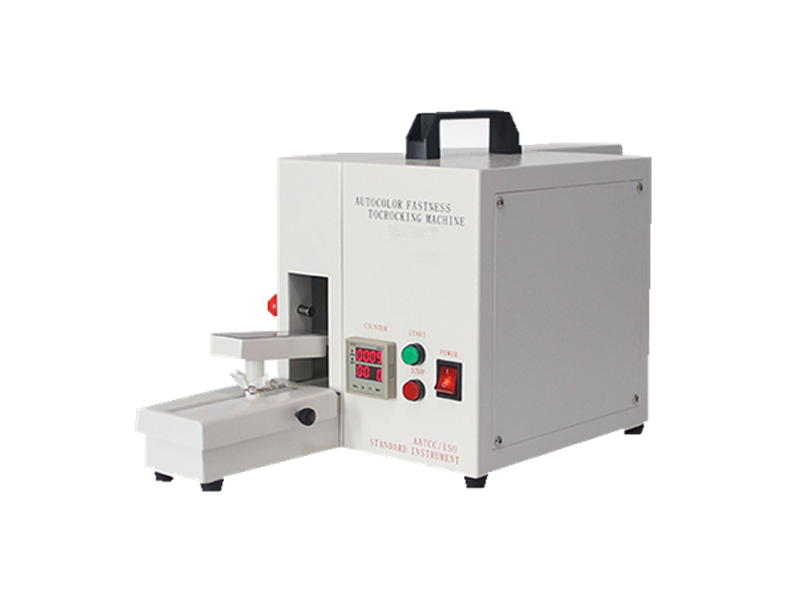

Electric Crockmeter

Electric Crockmeter is used to simulate the scene that test piece is rubbed against a white cotton cloth attached to the rubbing head to determine the color fastness.

Test Standards

ISO-105x12/D02
AATCC-8/165
JIS-L1084 L0815 K6328
BS 1006 D02
BS 4655

Parameters

Model AT-L9003-A
Rubbing head Dia 16mm
Rubbing distance 104mm±3mm, 100mm (adjustable)
Rubbing load 9N
Rubbing speed 60cpm
Machine weight 9.5kg
Machine dimension 600mmX230mmX260mm
Power supply 1 phase, AC 220V, 50Hz or specified
