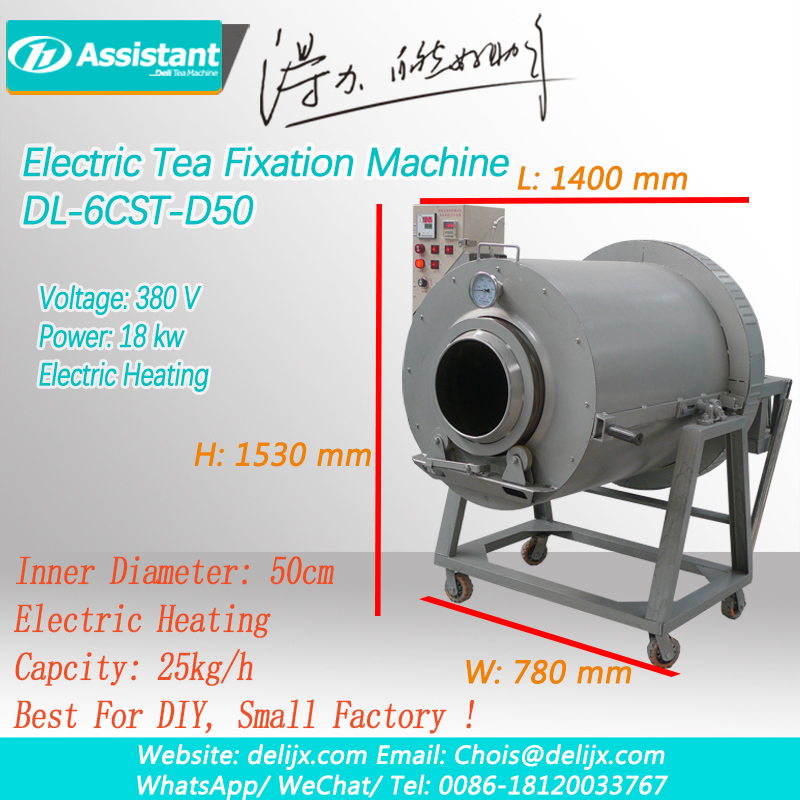

Electric Heating Tea Leaf Roasting Machine 6CST-D501

DL-6CST-D501 electric heating tea roasting machine can use for many kinds of tea, such as green tea, oolong tea and so on.


  • Efficiency25 kg/h
  • Heating typeElectric heating
  • Barrel speed5-37 min
  • Heating power18 KW
  • Barrel length850 mm
  • Barrel diameter500 mm
  • Voltage380/50 V/Hz
  • Dimension780×1400×1530 mm

Description:
Electric heating tea leaf panning machine use of high temperature to destroy the activity of enzymes in fresh leaves, to prevent polyphenol oxidase from continuing to oxidize, so that the water inside the fresh leaves evaporates. Making the smell of grass in the tea subsides, the fragrance of tea emerges, and the leaves become soft, creates conditions for rolling process.

Application:
Electric heating fresh tea leaves fixation machine can processing many kinds tea, such as green tea, yellow tea, brick tea and oolong tea and so on.

Parameter:
DL-6CST-D501 green tea leaf steaming machine specification:
Model DL-6CST-D501
Dimensions 780×1400×1530 mm
Voltage 380/50 V/Hz
Inner barrel diameter 500 mm
Inner barrel length 850 mm
Heating power 18 KW
Drive motor Power 0.75 KW
Speed 1390 rpm
Voltage 220 V
Exhaust fan Power 85 W
Speed 2200 rpm
Voltage 220 V
Barrel speed 5-37 min
Heating type Electric heating
Efficiency 25 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Details:
DL-6CST-D501 green tea leaf panning machine decomposition diagram:
Electric Heating Tea Leaf Roasting Machine 6CST-D501
①
Electric control panel

Heating wire box

Thermometer

Outer barrel

Inner barrel

Balance bolt

Nylon wheel

Shock absorber rod

Wheel

Suppoet frame

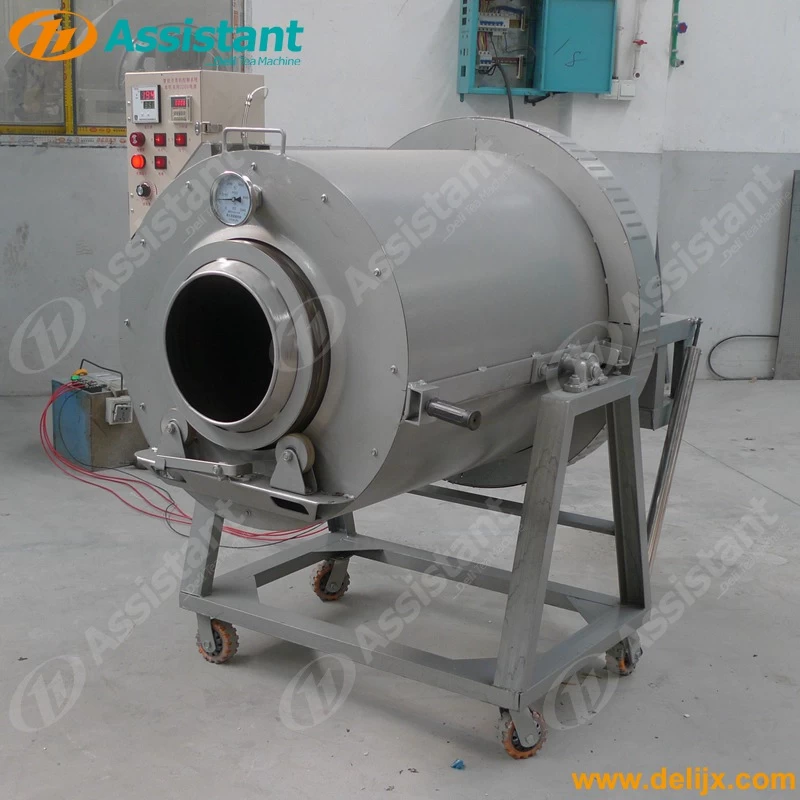

DL-6CST-D501 tea leaf panning roasting machine photos:

Electric Heating Tea Leaf Roasting Machine 6CST-D501
Electric Heating Tea Leaf Roasting Machine 6CST-D501
Electric Heating Tea Leaf Roasting Machine 6CST-D501

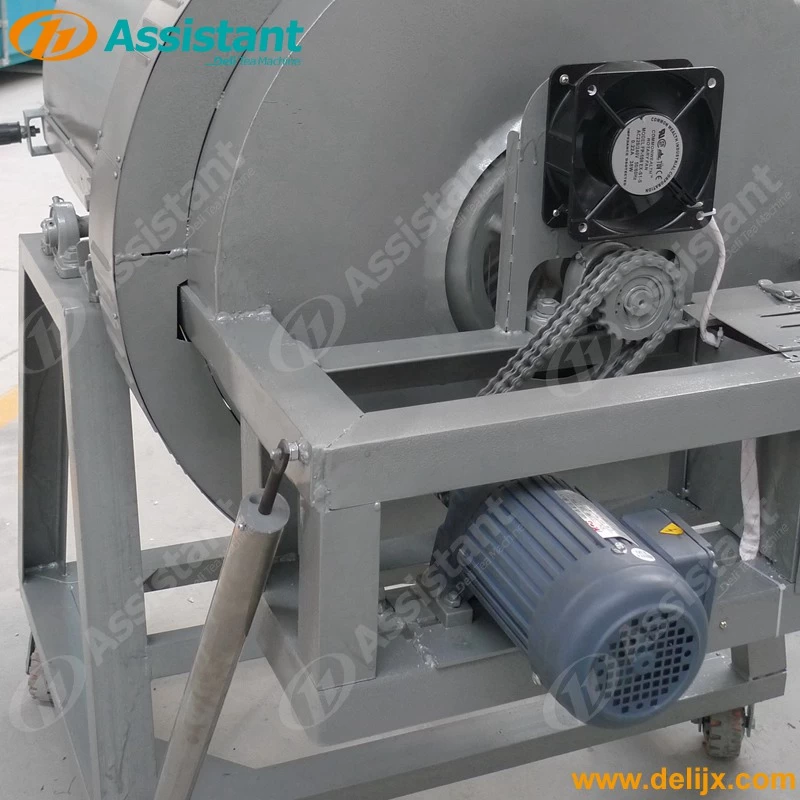

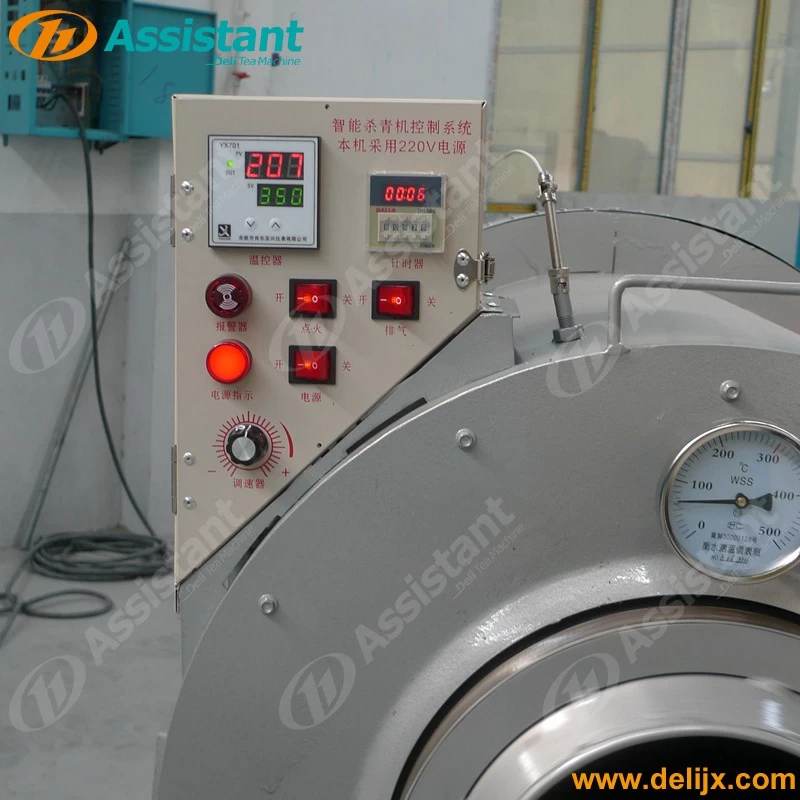

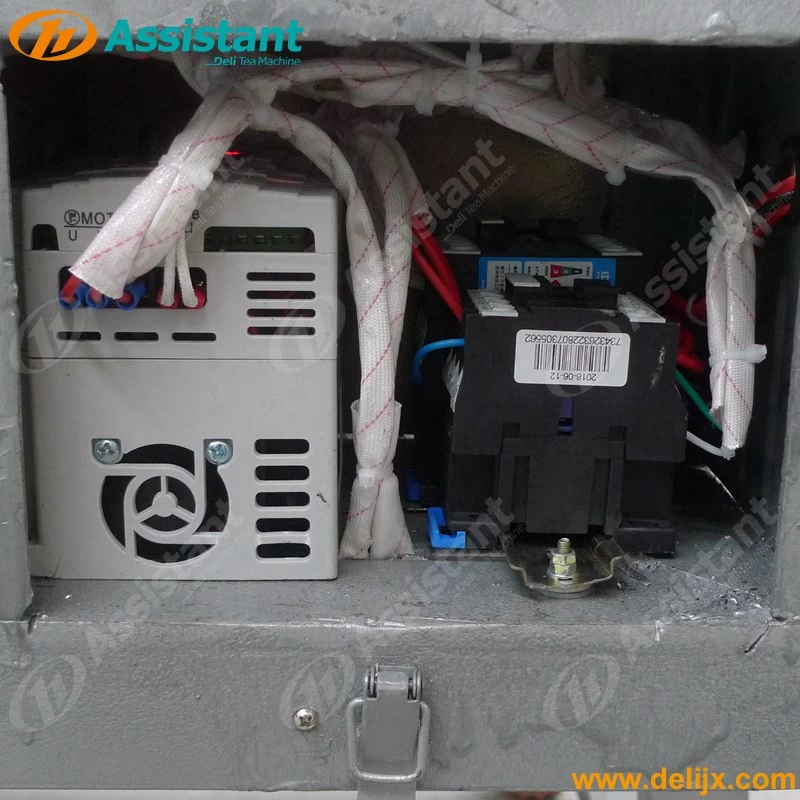

Copper core driving motor Total control area
Green Tea Leaf Steaming Roasting Machine Supplier 6CST-D501
