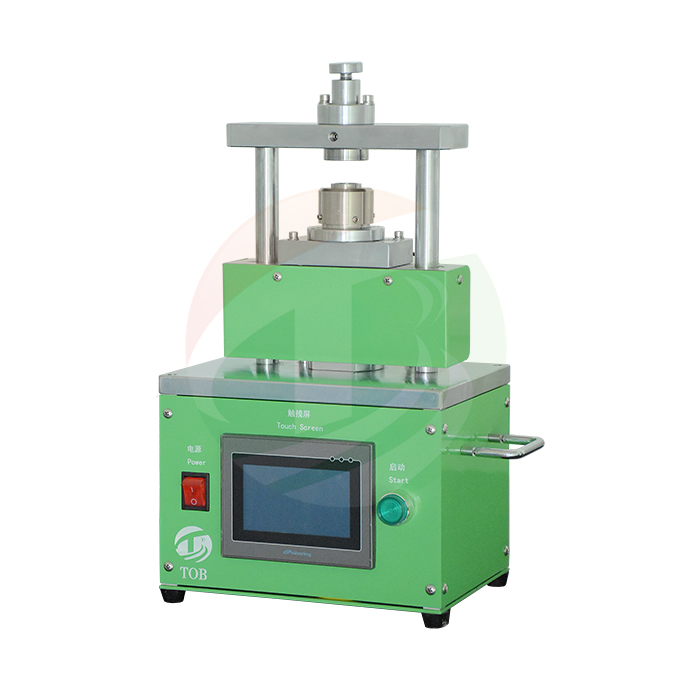

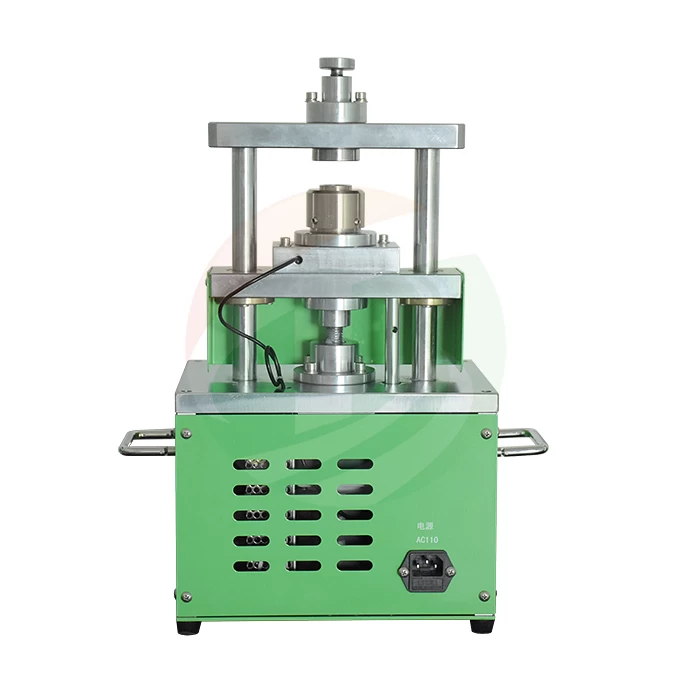

Electric Lab Use Coin Cell Battery Crimping Machine with Touch Screen
Product specification
Standard configuration can be used for disassembling CR20 series of coin cell. The machine has the advantages like small dimensions, easy operation, stable crimping , etc. Equipped with different moulds can also be used for other works like powder pressing ,button cell disassembling etc.
Features :
1.Electric operation with touch screen .
2.High precision moudel design to ensure stabe sealing
3.Simple to change crimping die .
4.Small size can be put into glovebox through φ360 antechamber.
|
Model
|
Electric Crimping and Disassemble Machine for Coin Cell
|
|
Voltage
|
110 - 240V AC 50/60Hz
|
|
Die Set &
Compatibility
|

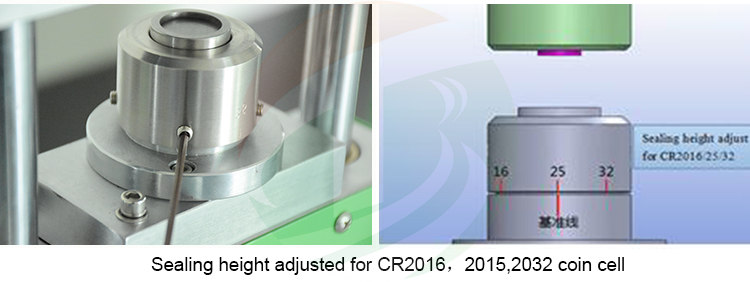

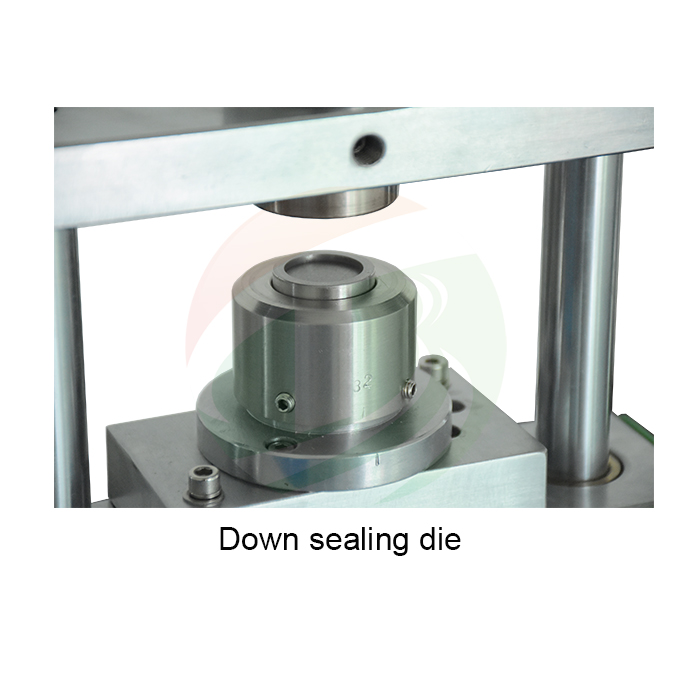

1.Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells.
2.Please read operation manual to see how to replace die from crimping to disassembling.
|
|
Structure
|
Heavy Duty Steel Platform, High strengthen chrome steel or alloy aluminum, the surface treated through environmental electroplating and painting and never rusts.
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Maintenance
Notes
|
Electrolytes are highly corrosive materials, and therefore the die set must be cleaned
with alcohol after each use to avoid corrosion and to maintain the equipment's integrity.
|
|
Net Weight
|
40 kg
|

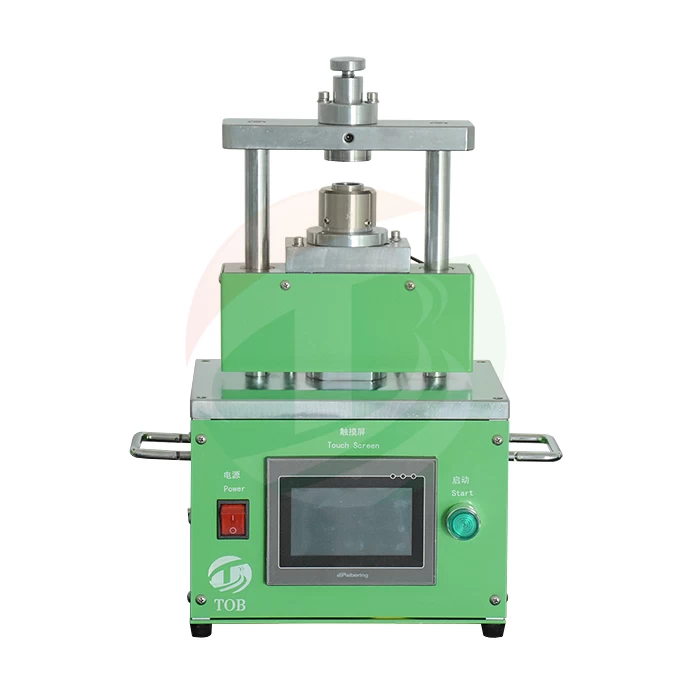

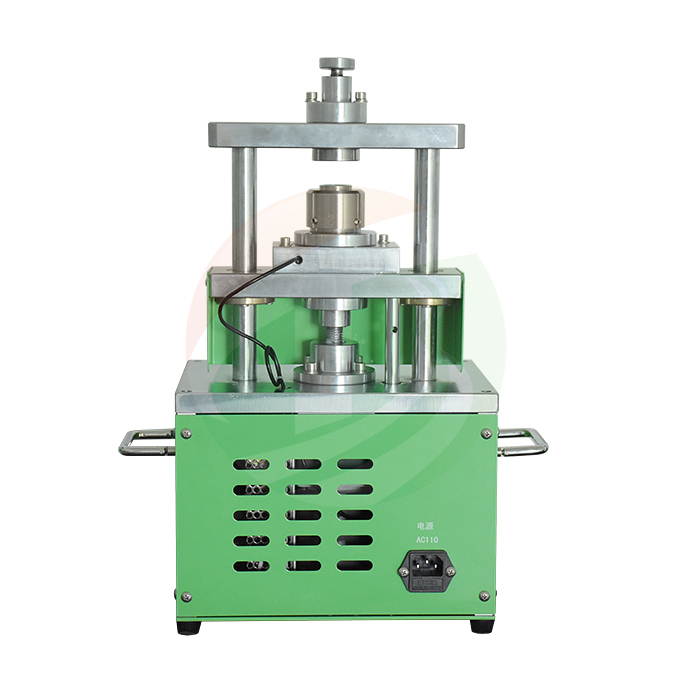

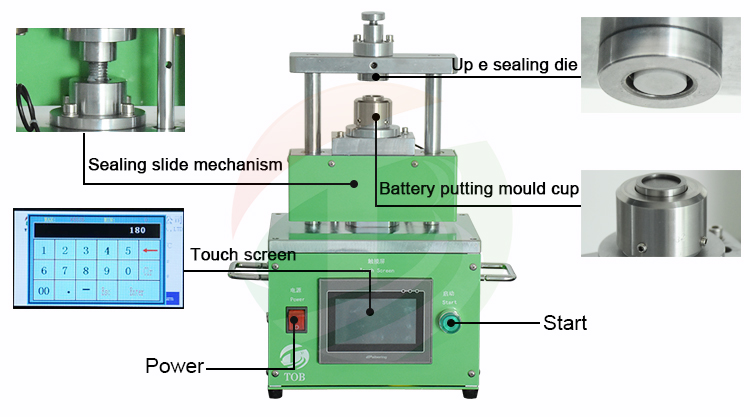

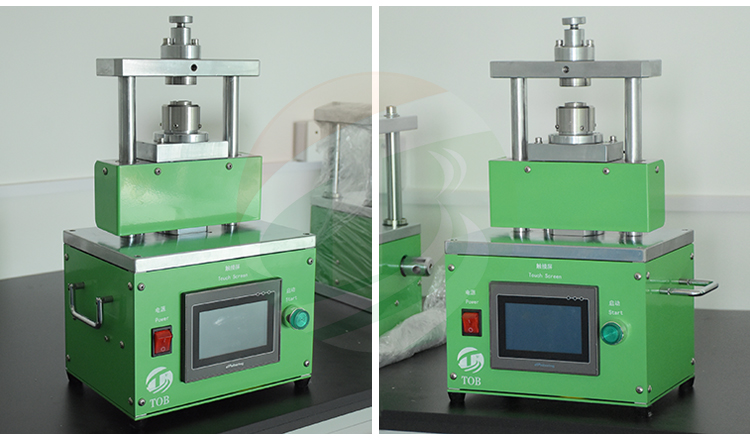

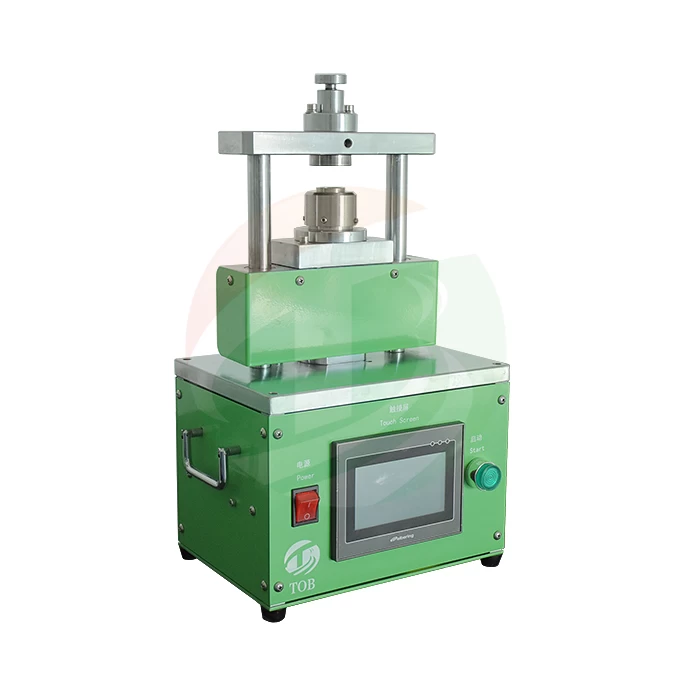

Product Images
Product Packing
