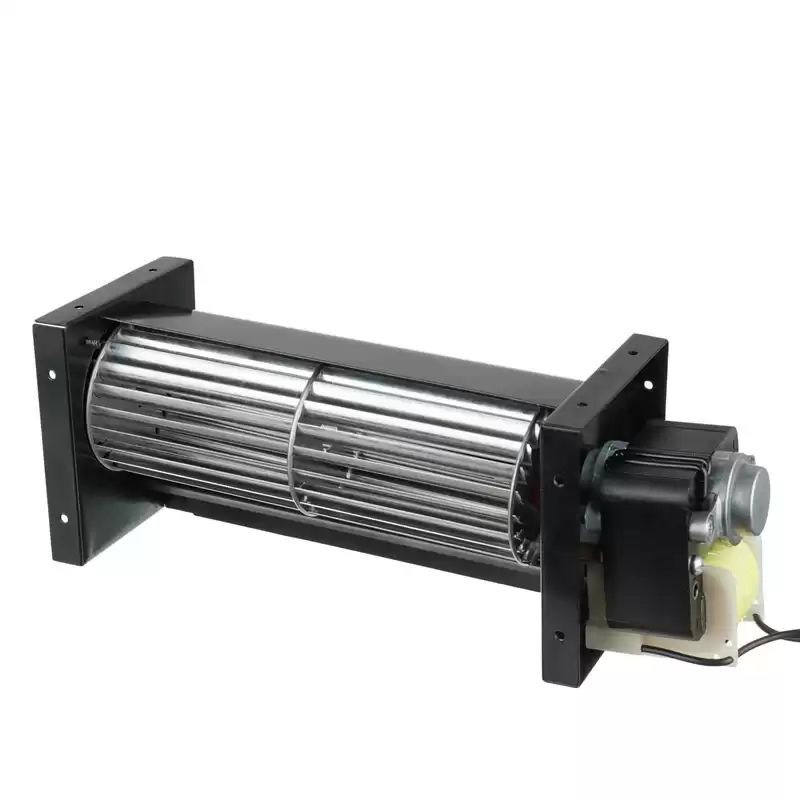

Electric Motor Air Cooler 2500rpm Crossflow Metal Fan

The AC cross flow fan consists of AC motor with external rotor and metal impeller, and has the following features: compact construction, light weight, high speed, high air flow, low noise & vibration and easy mounting etc.




Industrial Air Cooling Radiator Cross Flow Exhaust Fan with AC Motor. Our fans are high-quality products that can meet customers' requirements for various functions such as automatic start, tachometer output, pulse width modulation, dustproof and waterproof.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 210 mm x 190 mm x 30 mm / The size of fan in inch is 8.26 in x 7.48 in x 1.18 in; The center to center distance beween the mountiong holes is 210 ± 1 mm / 8.26 in.
  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.10 Amp | Speed: 2500 RPM | Airflow: 24.83 CFM | Noise: 39 dBA | Pressure: 0.60 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

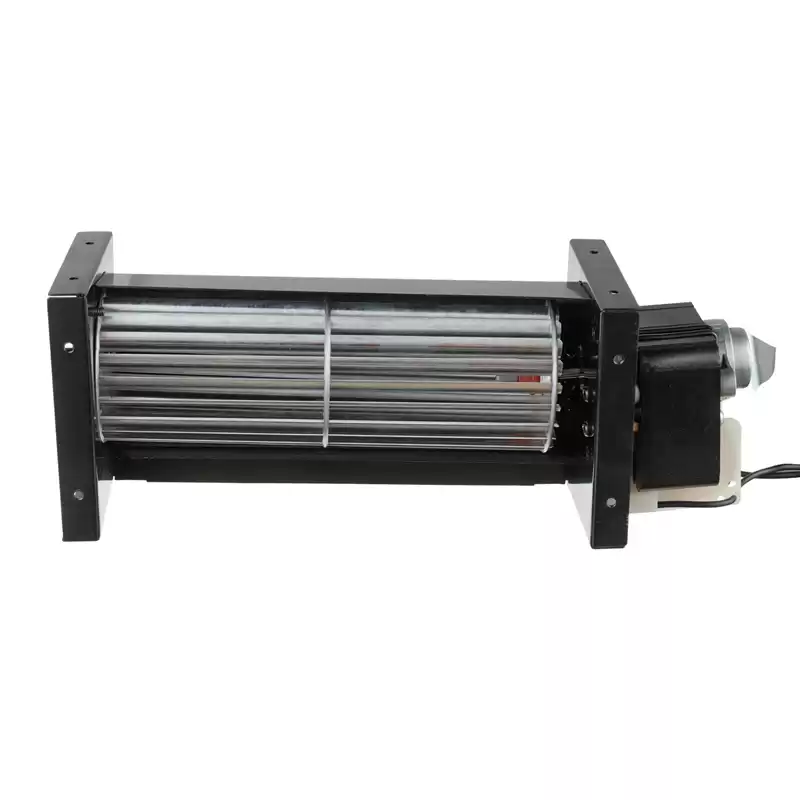

AC Cross Flow Fan 200x180x60mm

     60mm aluminum wheel cross flow fan       ac cross flow custom tangential fan

General Specification:
Frame: Cold Rolled Steel
Impeller: Aluminum Alloy
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

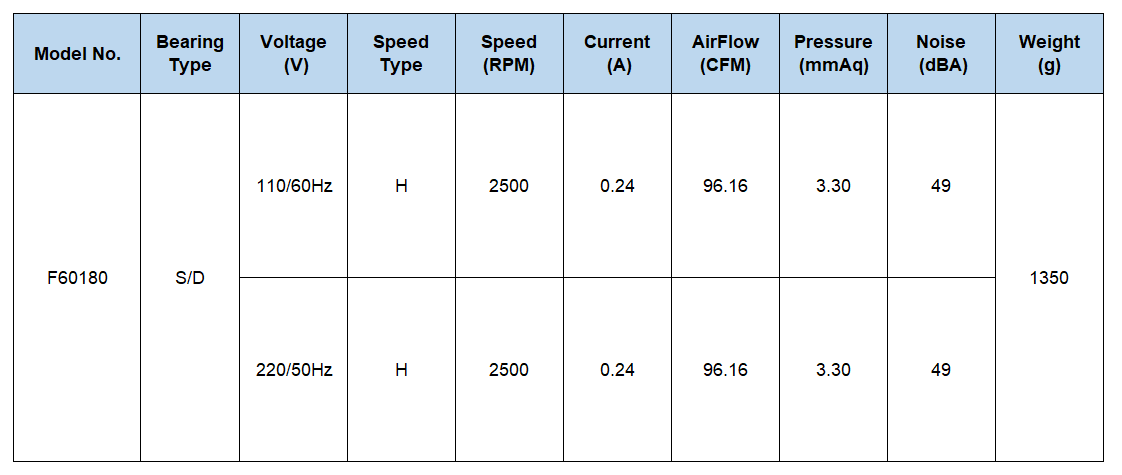

High Speed 2500rpm AC Cross Flow Fan

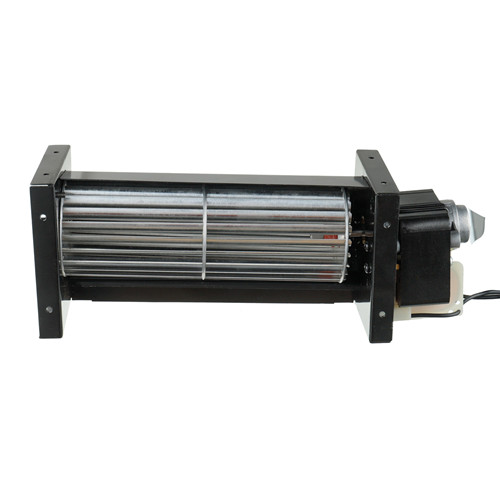

    Industrial Exhaust Cross Flow Fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Short Production Time & Prompt Delivery;
  • Feature a metal frame and are equipped with an aluminum rotor;
  • Has stable performance, lower operating noise and long service life;
  • The power frequency is fixed and it will not change with the voltage;
  • Due to the compact structure of the axial fans, they can save a lot of space, and are easy to install and widely used.



More Models

These cross flow exhaust fan are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Crossflow Fan F25090 109x90x25mm AC Crossflow Fan F30190 210x190x30mm
F30090 108x90x30mm F30290 310x290x30mm
F30090(PBT) 108x90x30mm F60180 200x180x60mm
F30150 168x150x30mm F60240 260x240x60mm
F30190 210x190x30mm F60300 320x300x60mm
F30250 270x250x30mm

F30290 310x290x30mm

F40150 170x150x40mm

F40300 320x300x40mm

F50100 132x90x50mm

F50200 263x200x50mm



Application

It can be customized according to different requirements of customers, so as to be suitable for ventilation and heat dissipation in any environment, such as air conditioners, air purifiers, humidifiers, dryers, treadmills, display screens, etc.

wholesale dc ac tangential cross flow fan

  • Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
  • Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
