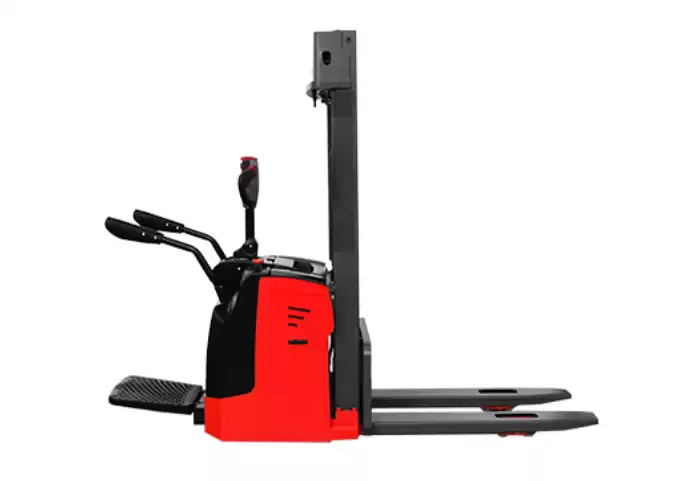

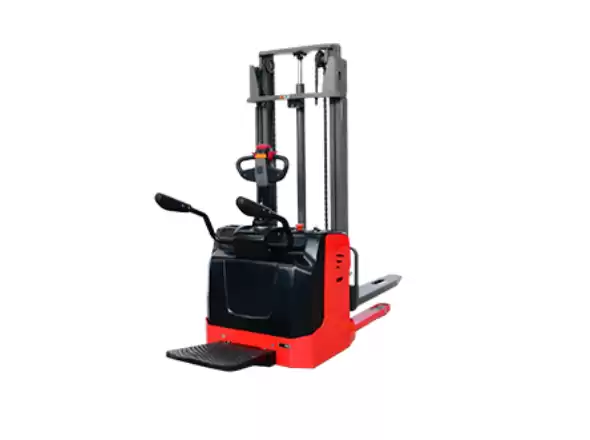

Electric Pallet Stacker 1.5~2.0 ton

Hifoune ST series is electric pallet trucks at 1.5~2.0ton capacity optional, man stand-on operating type



1.5t electric pallet stacker



Brand
HIFOUNE HIFOUNE
Model
ST15 ST20
Power Type
Battery Battery
Operation Type
Stand-on Stand-on
Service weight(incl. battery) kg 1270 1300
Rated Capacity Q(kg) 1500 2000
Load Center C(mm) 600 600
Lifting height h3(mm) 3000 3000
Forks size l/e/s(mm) 1150/190/56 1150/190/56
Front Overhang x(mm) 428 428
Turning radius Wa(mm) 1755 1755
Max. climbing ability %(tanθ ) 8/10 6/8
Driving speed(load/unload) km/h 5/6 5/6
Lifting speed(load/unload) mm/s 125/175 65/100
Lowering speed(load/unload) mm/s 115/135 95/100


1.5T-2.0T Power Pallet Stacker with 24V 210AH Battery Main Features:

1. 1.5t electric pallet stacker uses Maintenance-free high-power AC drive system which provide reliable driving power. The 210AH large-capacity battery gives strong endurance;

2.Standard CURTIS series controller is reliable and durable. AMP waterproof and dust proof plug-in which provides reliable protection for the line and greatly reduces electrical faults;
3.Station board type, pure electronic steering, integrated joystick. It is safe, labor-saving, flexible operation;
4.The newly designed floating suspension system makes the steering operation more flexible and convenient;
5.The electric lift pallet stacker adopts 5 points low gravity design and the frame is made of high-strength steel plate frame structure, which has large spare capacity and long service life.



Our Factory


    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.



    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

Certifications

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
