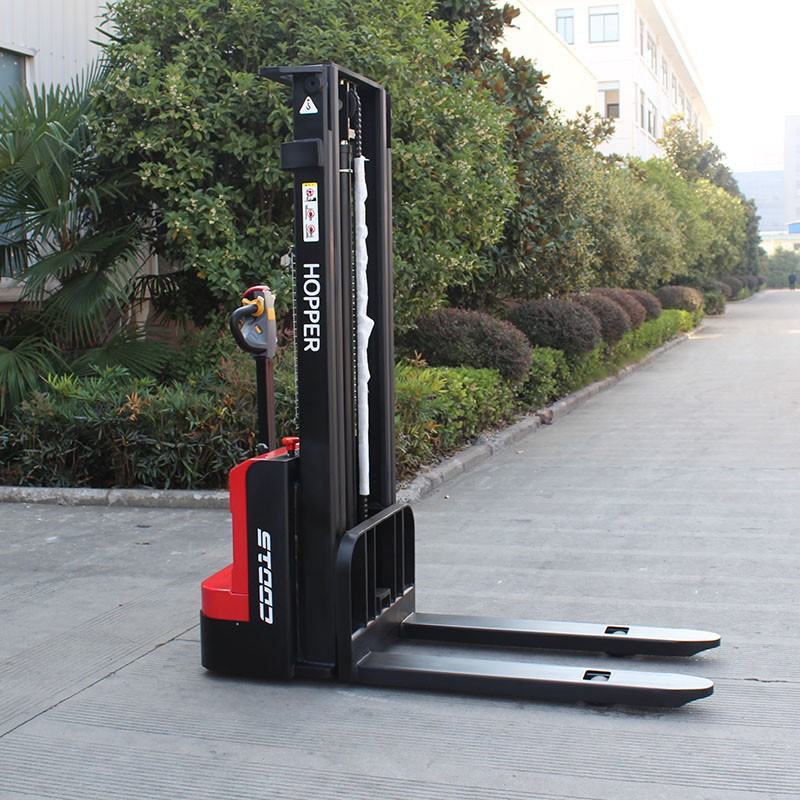

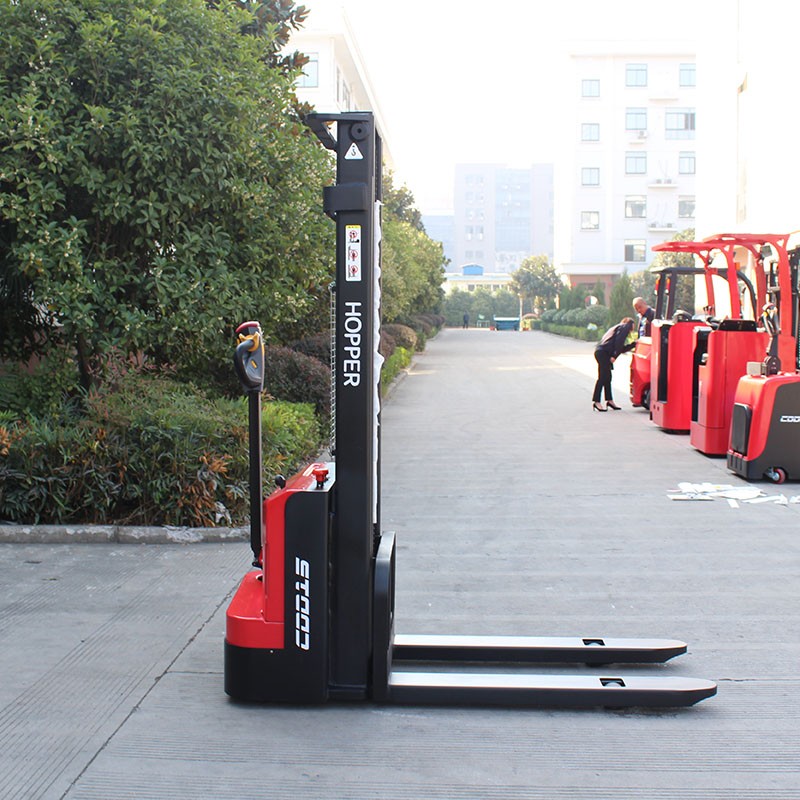

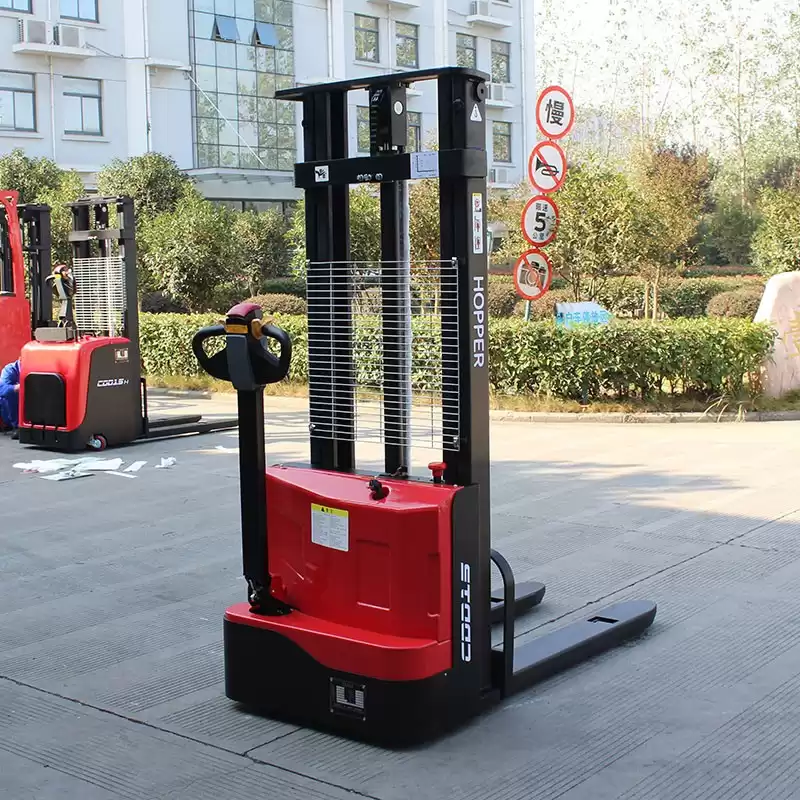

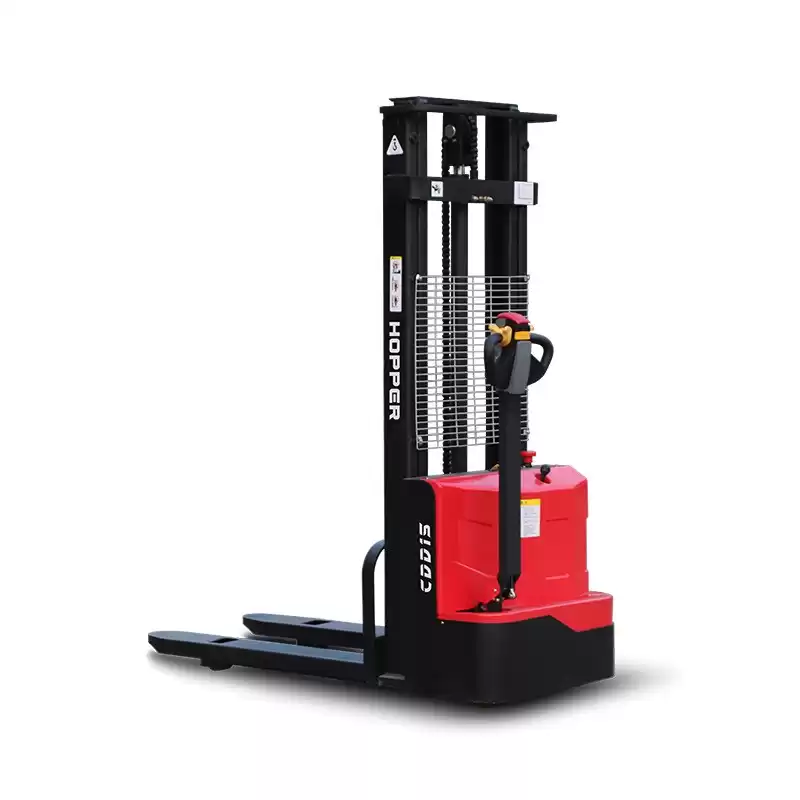

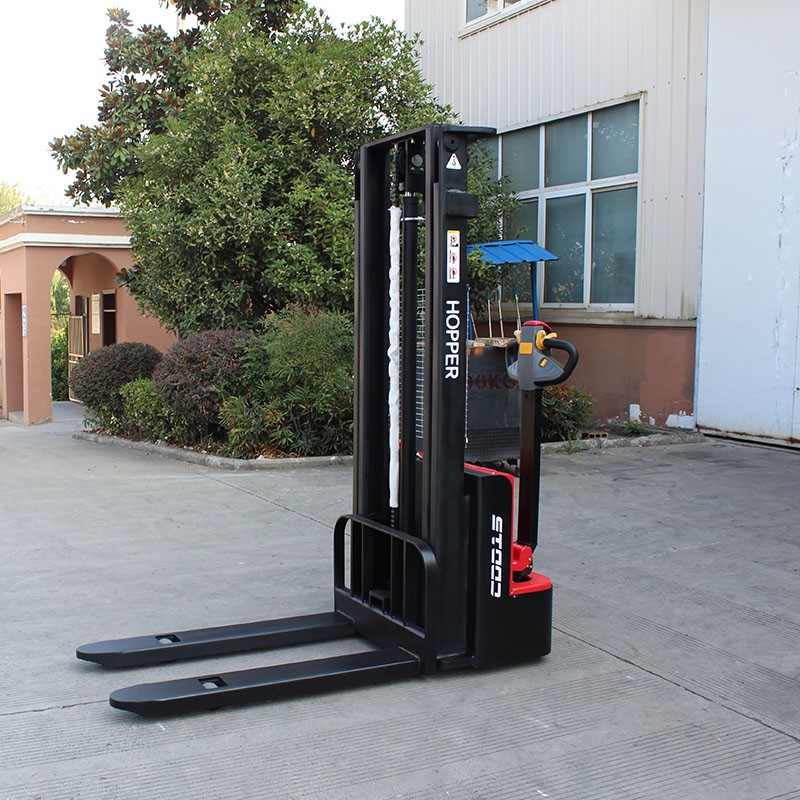

Electric Pallet Stacker Series 1.5 ton CDD15



Small size, light and flexible, simple operation;



Adopting permanent magnet motor with excellent performance and low heat generation;



Built-in charger, colloidal maintenance-free battery,easy to use and maintenance free;



CURTIS control system, control precision, high efficiency and stability;



Identification 1.1 Manufacture' s type designation HOPPER
1.2 Model     CDD12 CDD15
1.3 Power Type Electric
1.4 Type of operation Pedestrian
1.5 Steering Mode Mechanical
1.6 Load capacity/rated load Q kg 1200 1500
1.7 L oad center distance C mm 500 500
1.8 Wheel base Y mm 1240 1240
Weight 2.1 Total Weight/with battery)   kg 540 560
2.2 Axle Load(laden):Drive side/Load-bearingside   kg 640/1100 750/1310
2.3 Axle Load(unladen):Drive side/Load -bearingside   kg 380/160 400/160
Dimension 3.1 Overall Length L1 mm 1765 1755
3.2 Overall Width W1 mm 800 800
3.3 Lift Height h1 mm 3000 3000
3.4 Lowered mast height h2 mm 2050 2050
3.5 Lowered mast height h4 mm 3520 3520
3.6 Extended mast height l/e/s mm 1150/160/60 1150/160/60
3.7 Fork Dimension b2 mm 560/685 560/685
3.8 Width of Fork h3 mm 85 85
3.9 Min.Fork Height m1 mm 30 30
3.1 Ground Clearance at center of wheelbase (Min) h14 mm 1290 1290
3.11 Height of Operating Handlebar Wa mm 1435 1435
3.12 Turning Radius   mm 2275 2275
3.13 Aisle width for lengthways (Pallet size 1000*1200)   mm 2215 2215
Tyre 4.1 Aisle width for lengthways (allet size 800*1200)     Polyurethane Polyurethane
4.2 Tyre Type   mm φ80x70 φ80x70
4.3 Tyre Size(Front)   mm φ115x55 φ115x55
4.4 Tyre Size(Auxiliary wheel)   mm φ210x70 φ210x70
4.5 Tyre Size(Driving Wheel)     2/1x+1 2/1x+1
Performance 5.1 Wheels Quantity,front/rear (x=driving wheels)   Km/h 3.2/3.3 3.2/3.3
5.2 Traveling Speed(laden/unladen)   mm/s 100/135 100/135
5.3 Lifting Speed(laden/unladen)   mm/s 155/150 155/150
5.4 Lowering Speed(laden/unladen)   % 3月5日 3月5日
5.5 Max.Gradient performance(laden/unladen)     Electromagnetic Electromagnetic
5.6 Service Brake Type     Electromagnetic Electromagnetic
PowerUnit 6.1 Parking Brake Type   kW 0.75 0.75
6.2 Drive Motorrating(AC) S2-60min   kW 2.2 2.2
6.3 Lift Motor rating(DC) S3 15%   V/Ah 24/80 24/80
6.4 Battery Voltage/Capacity K5   kg 50 50
Others 7.1 Battery Weight     CURTIS CURTIS
7.2 Controller Brand     1212P 1212P
7.3 Controller Model   dB 70 70

CDD12 Mast parameters
Designation Lift height Lowered mast height Extended mast height load capacity/ rated load
mm mm mm kg
One-stage 1600 2065 2065 1000
Two-stage 2500 1800 3020 800
3000 2050 3520 600
CDD15 Mast parameters
Designation Lift height Lowered mast height Extended mast height load capacity/rated load
mm mm mm kg
One-stage 1600 2065 2065 1500
Two-stage 2500 1800 3020 1200
3000 2050 3520 900
