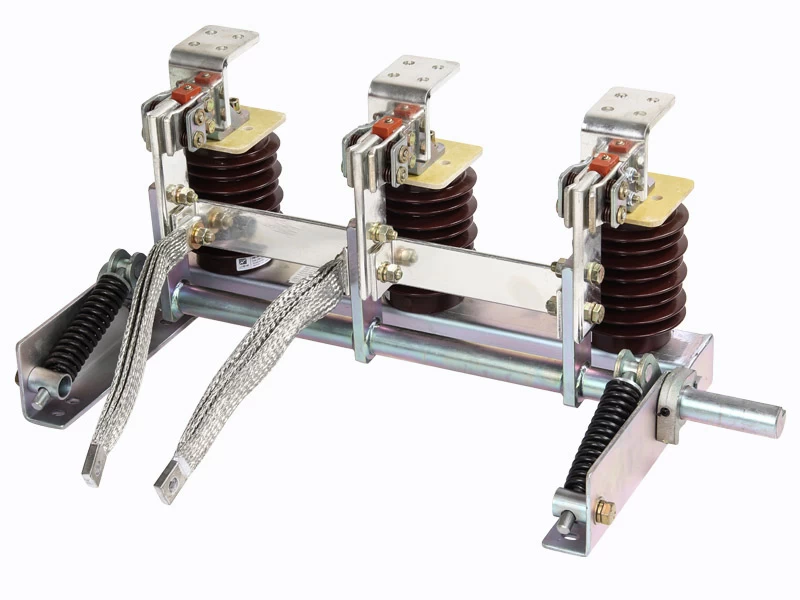

Electric power ground switch JNH1-12 Series
This electric power ground switch product is a new earthing swith designed and developed by our company. It is of an integral structure,featuring simple and advanced design and convenient installation. It adopts the new contact structure with national patent. The fixed contact is of novel design, with the guiding function when the single-blade moving knife is insered; the bulging contact is reliable and the pressing force is even. It is an ideal product for updating of earthing switch for middle-placed cabinet.
|
Rated Voltage (kV)
|
Thermal Steady Current (kA)
|
Thermal Steady Time(s)
|
Dynamic Steady Current (kA)
|
Short Circuit Making Current（KA）
|
Phase Distance（mm）
|
|
12
|
25
|
4
|
63
|
63
|
150-275
|
|
12
|
31.5
|
4
|
80
|
80
|
150-275
|
|
12
|
40
|
4
|
100
|
100
|
210-275
|
Environmental conditions
|
Ambient air temperature
|
+60℃ to -30℃，daily temperature difference: 30℃.（Actually upon the temperature of insulators）
|
|
Relative humidity
|
<90% (daily mean)
|
|
Seismic intensity
|
No higher than 8
|
|
Altitude
|
No higher than 1000m (if the product is to be used in plateau, please make a note in the order).
|
|
Places without fire or explosion hazards, or heavy dust, chemical corrosion or violent vibration.
|
Operating Interlock Machanism
Production Capacity
1.Annual Capacity: 30000 earthing switches
2.Over 30 machines,like CNC lathe, CNC milling machine, CNC bending, Automatic welding machine, Punching, Shearing machine etc
3.All kinds of Inspection Equipments:
switch mechanical characteristics tester, rockwell hardness tester, automatic spring tension and compression tester, circuit resistance tester, eddy current conductance tester, multifunctional electrolytic thickness tester, salt spray test and others
Professional research and development, strict inspection, perfect after-sales service.
