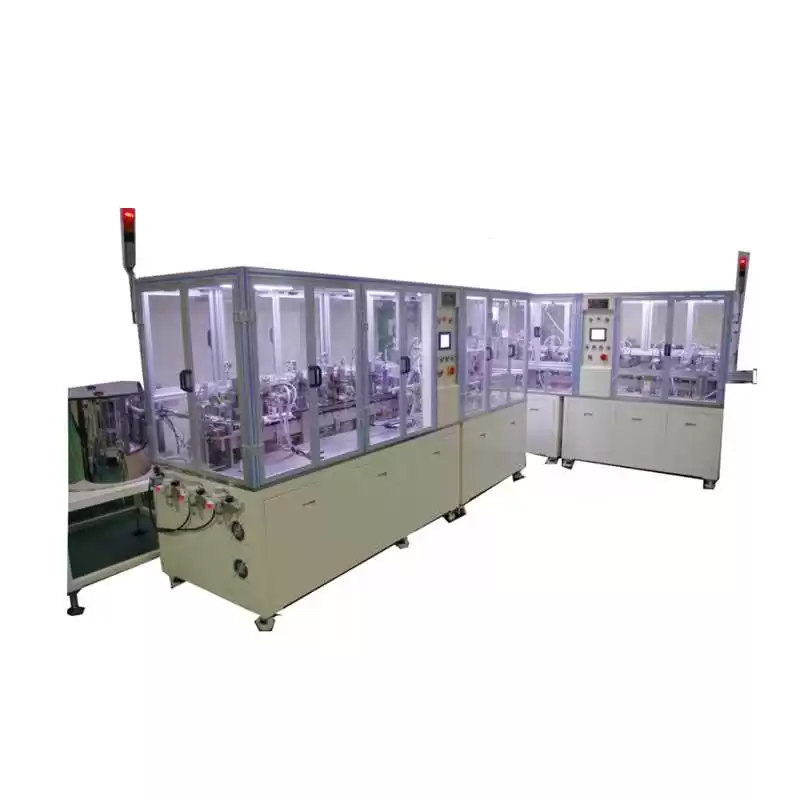

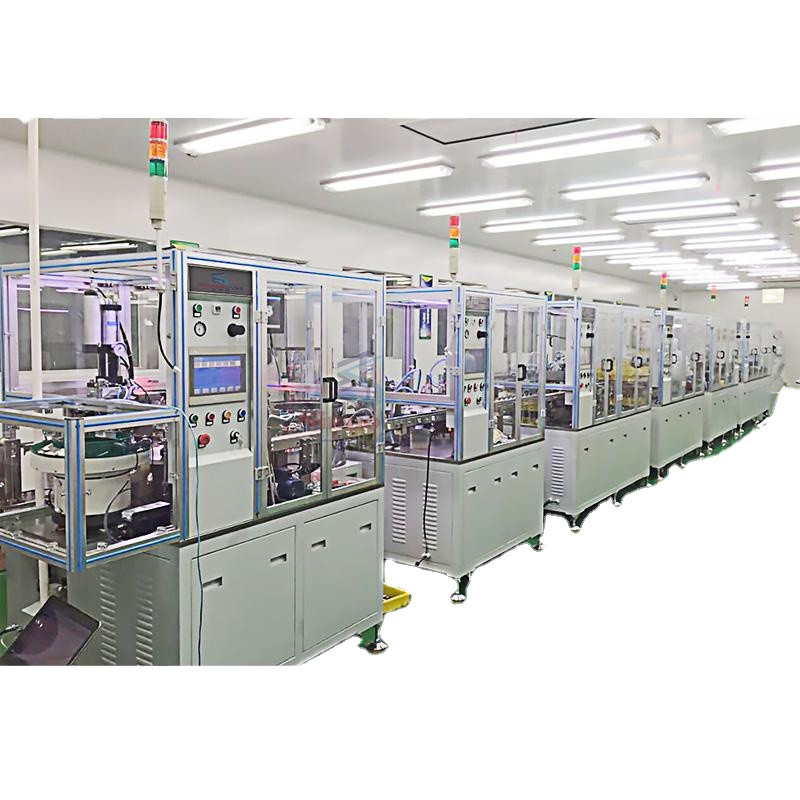

Automotive Start Relay Production Line
This machine is an automatic relay assembly machine, divided into "U-shaped production line front" STC-1509-1 top cover assembly assembly machine" and "U-shaped production line back" STC-1509-2 coil assembly assembly machine. Covers, springs, contacts, contact terminals M, contact terminals B, square nuts, yokes, coil formers, gaskets, springs, iron cores and other materials are automatically loaded with a vibrating hopper, automatically inserted, and detected after completion and unloading automatically.
Products Features：
1. The linear structure is simple and easy to install and maintain.
2. Operating parts adopt parts of world famous brands.
3. Highly automated and intelligent operation, no pollution.
Technical Parameters:
|
Work efficiency
|
1000-1200 pcs/hour
|
|
Applicable power supply
|
220VAC, 50HZ
|
|
Equipment power
|
6000W
|
|
Applicable air source
|
0.50～0.80Mpa (0.50Mpa is the best)
|
|
Equipment length
|
7000mm
|
|
Equipment width
|
4630mm
|
|
Equipment height
|
1800mm
|
|
Warranty period
|
One year
|
|
Additional services
|
Professional English technology training
|
|
Brand of Main Parts
|
SMC Japan, SIEMENS Germany, Panasonic Japan,Keyence Japan, Schneider France, BASLER Germany, HIWIN Taiwan.
|
Application
