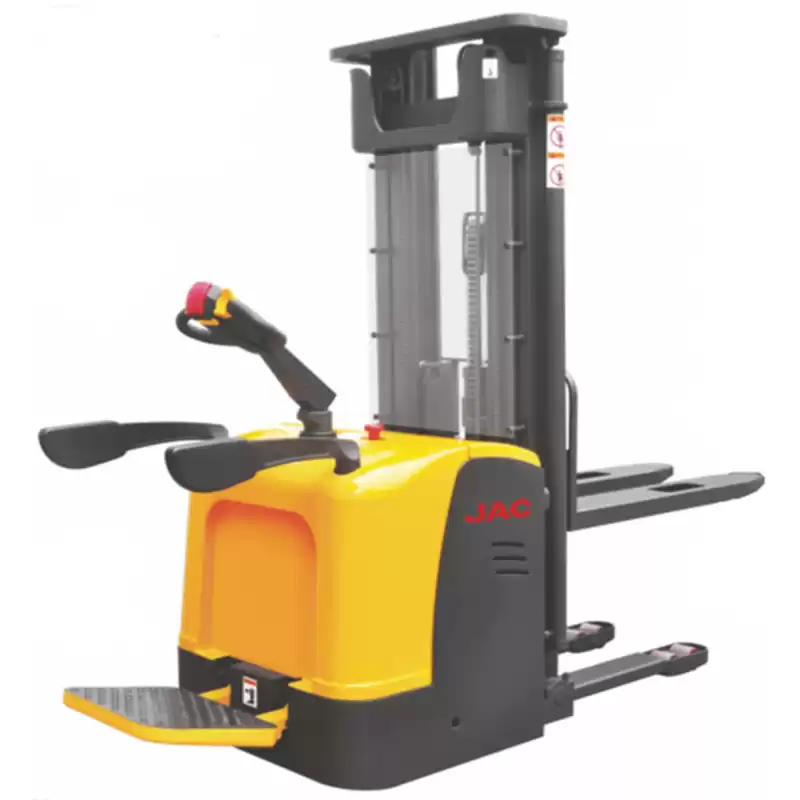

1. Advantages:
SAFETY AND PRODUNCTIVITY:
• AC Motor eliminates carbon brush replacement.
• Multi-function display with BDI and hour meter.
• Side way battery is easy to maintain.
• Damping cushion for low-noise operation.
• Emergency reversing device equipped handle to keep safe.
• Auto deceleration function makes operation more safely.
• Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
• With brake in handle upright and horizontal position, increasing the safety of the truck.
• Emergency power disconnect switch.
• Turtle-shaped low speed switch.
• Stepless speed control.
OPTIMUM STRUCTURAL DESIGN
• Low barycenter ensures the stable operation.
• Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius.
The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
• The mast and the frame are dividable and exchangeable.
• Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door).
Serviceability:
• Low voltage protection setting prolongs the battery use time.
• The electronic components’ concentrated design simplifies the circuit and makes easy access to assemble, debug and maintain.
• CANbus technology reduces wiring complexity and increase reliability.
• Hall element reduces wear components, resulting in increased component life.
2. Specification
|
Model
|
|
CDDR10-Ⅲ
|
CDDR12-Ⅲ
|
CDDR15-Ⅲ
|
|
Load capacity/rated load
|
Q(kg)
|
1000
|
1200
|
1500
|
|
Load centre distance
|
c(mm)
|
500
|
500
|
600
|
|
Load distance,centre of drive axle to fork
|
x(mm)
|
600
|
600
|
697
|
|
Fork height, lowered
|
h13(mm)
|
90
|
90
|
90
|
|
Tyre size, front
|
mm
|
φ250×70
|
φ250×70
|
φ250×70
|
|
Tyre size, rear
|
mm
|
φ80×70
|
φ80×70
|
φ80×70
|
|
Additional wheels(dimensions)
|
mm
|
φ150×60
|
φ150×60
|
φ150×60
|
|
Wheels,number front rear(x=driven wheels)
|
|
1x+2/4
|
1x+2/4
|
1x+2/4
|
|
Height,mast lowered
|
h1(mm)
|
2087/1837/2087/2237
|
2087/1837/2087/2237
|
2087/1837/2087/2237
|
|
Free lift(option 2500~3500mm)
|
h2(mm)
|
~
|
|
Max. Lift height
|
h3(mm)
|
1600/2500/3000/3300
|
1600/2500/3000/3300
|
1600/2500/3000/3300
|
|
Height,mast extended
|
h4(mm)
|
2087/3087/3587/3887
|
2087/3087/3587/3887
|
2087/3087/3587/3887
|
|
Height of tiller in drive position min./max.
|
h14(mm)
|
1150/1450
|
1150/1450
|
1150/1450
|
|
Overall length
|
l1(mm)
|
1955
|
1955
|
2025
|
|
Length to face of forks
|
l2(mm)
|
840
|
840
|
920
|
|
Overall width
|
b1(mm)
|
850
|
850
|
850
|
|
Fork dimensions
|
s/e/l(mm)
|
60/170/1070(1150)
|
60/170/1070(1150)
|
60/170/1070(1150)
|
|
Width overall forks
|
b5(mm)
|
570/695
|
570/695
|
570/695
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
2440
|
2440
|
2520
|
|
Turning radius
|
Wa(mm)
|
1575
|
1575
|
1655
|
|
Travel speed,laden/unladen
|
Km/h
|
6.5/6.7
|
6.5/6.7
|
6.5/6.7
|
|
Lift speed,laden/unladen
|
m/s
|
0.06/0.13
|
0.06/0.13
|
0.06/0.13
|
|
Lowering speed,laden/unladen
|
m/s
|
0.13/0.10
|
0.13/0.10
|
0.13/0.10
|
|
Battery voltage,nominal capacity K5
|
V/Ah
|
24/120
|
24/120
|
24/200
|
|
Battery weight
|
kg
|
90
|
90
|
160
|
|
Battery dimensions l/w/h
|
mm
|
753x178x240
|
753x178x240
|
800x254x320
|
|
Service weight (with battery)
|
kg
|
700/750/780/800
|
800/850/870/890
|
840/920/930/945
|
