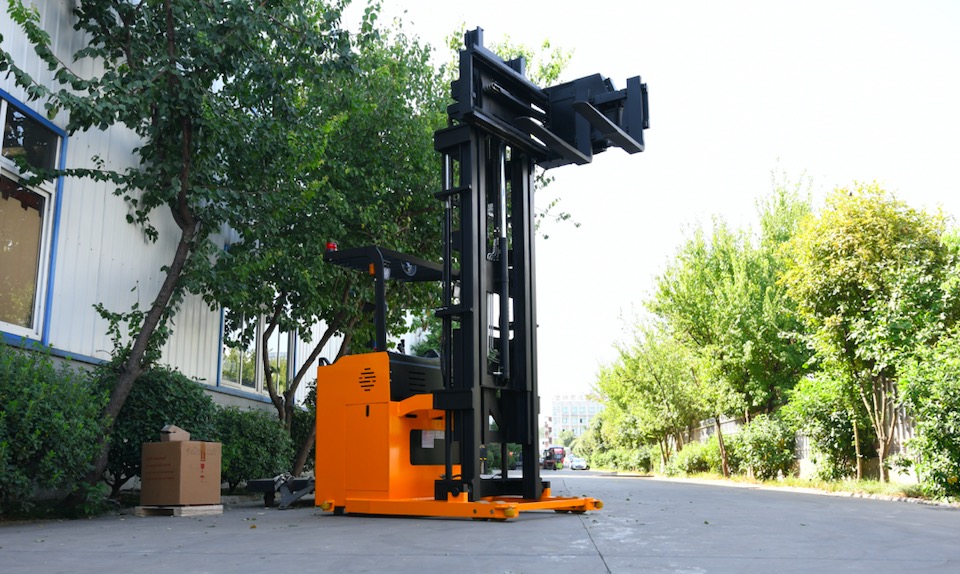

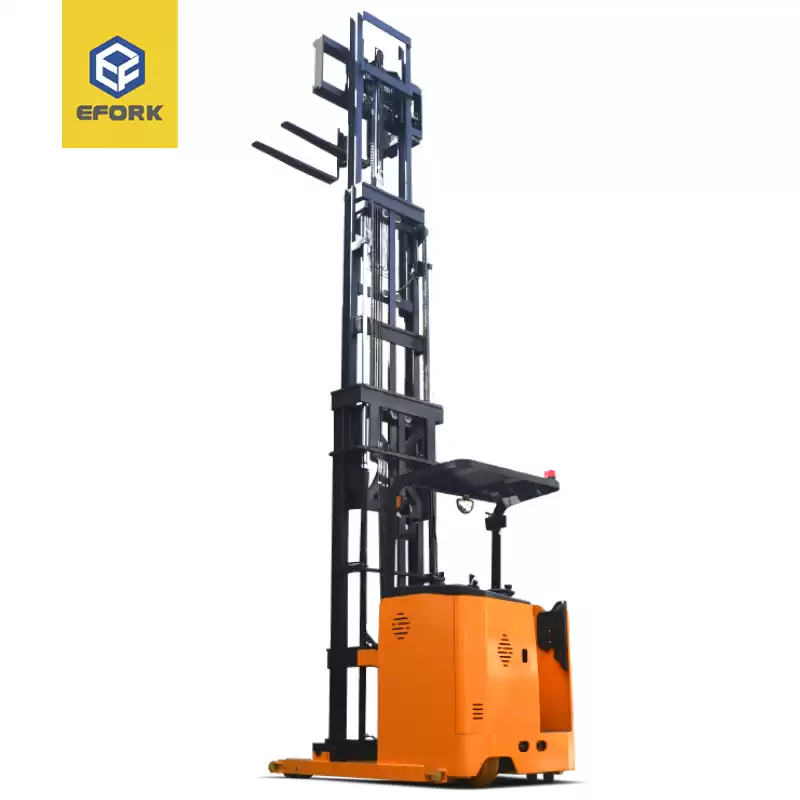

Product Name:Very Narrow Aisle Forklift Trucks | CDDM15-75 3-Way Electric Pallet Stacker
The EFORK turret truck has a high throughput rate in particularly for very narrow aisle, so it is the proper solution for optimizing pallet storage.Operating in very narrow aisle,CDDM series can increase the warehouse density as well as the ability of handling high volumes quickly and safely.
Product Advantage :
Safe
●Regenerative braking, mechanical disc braking, double braking, safe and reliable three sets of braking system;
●Rotation, side shift interlock function, avoid the wrong operation in the roadway, ensure the safety of the driver operation;
●The lifting system with descending buffer and lifting electronic limit ,which can offer good buffering when goods descended the lowest and rised the highest ,to make sure smooth and safe operation.

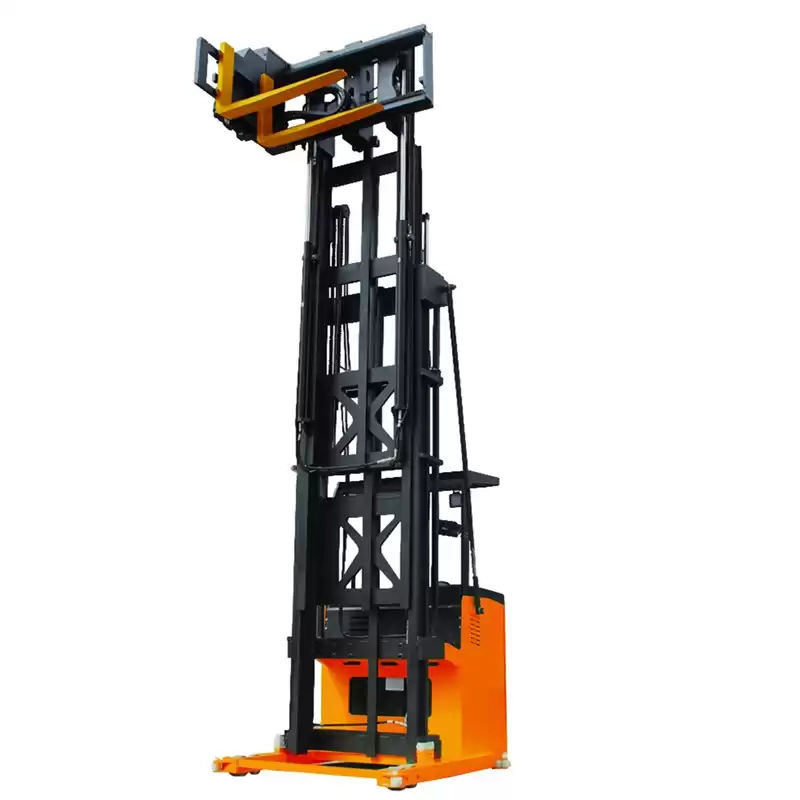

●Forks can be 180 ° rotation and left and right side shift, which is convenient to handle and stack by three-way forks , improve efficiency;
●With body stability system of rear floating bridge design, improve the stability of high position stacking, comfortable and stable of driving.
High automatic
●Optional magnetic guide function cancels the installation and construction of warehouse and shelf bottom guide rail, greatly reduce the cost of warehouse construction and shorten the construction period. With automatic orbit entry function, automatically corrects the driving directions in roadway instead of manual operation of steering wheel, reducing the labor intensity of driver and improving the labor efficiency.
Parameters
|
Name
|
Electric3-way stacker forklift
|
|
Operation type
|
Standing type
|
|
Model No.
|
Unit
|
CDDM15-60S
|
|
Power type
|
|
Full-Electric
|
|
Capacity
|
KG
|
1500
|
|
Max Lifting Height
|
H2(mm)
|
6000
|
|
Load center
|
C(mm)
|
500
|
|
Wheel type
|
|
Pu solid tire
|
|
Fork dimensions
|
mm
|
1070*125*45
|
|
Fork spread
|
mm
|
260-650
|
|
Overall length including fork
|
L(mm)
|
4000/3100
|
|
Overall width
|
S(mm)
|
1550
|
|
Guide wheel width
|
mm
|
1550
|
|
Channel guide width
|
mm
|
1600
|
|
Channel guide height
|
mm
|
120
|
|
Channel shelf width
|
mm
|
1760(1200*1200 pallet）
|
|
Main channel width
|
mm
|
4000
|
|
Height--Mast Lowered
|
H2(mm)
|
3180
|
|
Maximum height when fork is lifting
|
H3(mm)
|
7250
|
|
Turning radius
|
Wa(mm)
|
2017
|
|
The height of overhead guards
|
mm
|
2280
|
|
Min ground clearance
|
mm
|
32
|
|
Max travel speed
|
Km/h
|
7/8
|
|
Lifting speed
|
mm/s
|
215/275
|
|
Total weight
|
KG
|
＞5000
|
|
Driving wheel
|
mm
|
Ø382*142
|
|
Front wheel
|
mm
|
Ø145*100
|
|
Balance wheel
|
mm
|
Ø180*76
|
|
Battery capacity
|
V/Ah
|
48/400
|
|
Charger-Intelligent
|
V/A
|
48/50
|
|
Driving motor
|
Kw
|
6.5（AC）
|
|
Lifting motor
|
Kw
|
8.6（AC）
|
|
Steering control type
|
|
EPS
|
|
Walking Adjustable Type
|
|
Holzer type accelerator
|
|
Brake type
|
|
Electromagnetism
|
|
Unit price
|
USD
|
|
Configuration
1、CURTIS controller
2、ALBRIGHT contactor
3、CURTIS control accelerator
4、AC drive motor
5、Brand instrument
6、Brand multi way valve and gear oil pump
7、Key components such as oil seal and oil pipe are imported
8、Side pull battery
9、External 48V intelligent charger
10、Polyurethane solid tire with high wear resistance
11、Drive wheel position display
12、Cylinder safety shut-off valve
13、Electromagnetic brake system
14、Electronic power steering
