CHUNGFO is a professional manufacturer and supplier of high quality Fans in Guangdong, China.

We have 20 years’ experience in Cooling Fan, provide our customers with unparalleled service and expertise, in addition to a wide range of products.

Our cooling products include AC Axial Fans, DC Axial Fans, EC Axial Fans, DC Blower, DC Frameless Fans, AC Cross Flow Fans and DC Cross Flow Fans.

AC Axial Fans are found in a variety of applications, including appliances, computing servers, telecommunication cabinets, and any type of equipment where the need for thermal control is necessary for the improved reliability and life extension of the components that are included in the system.

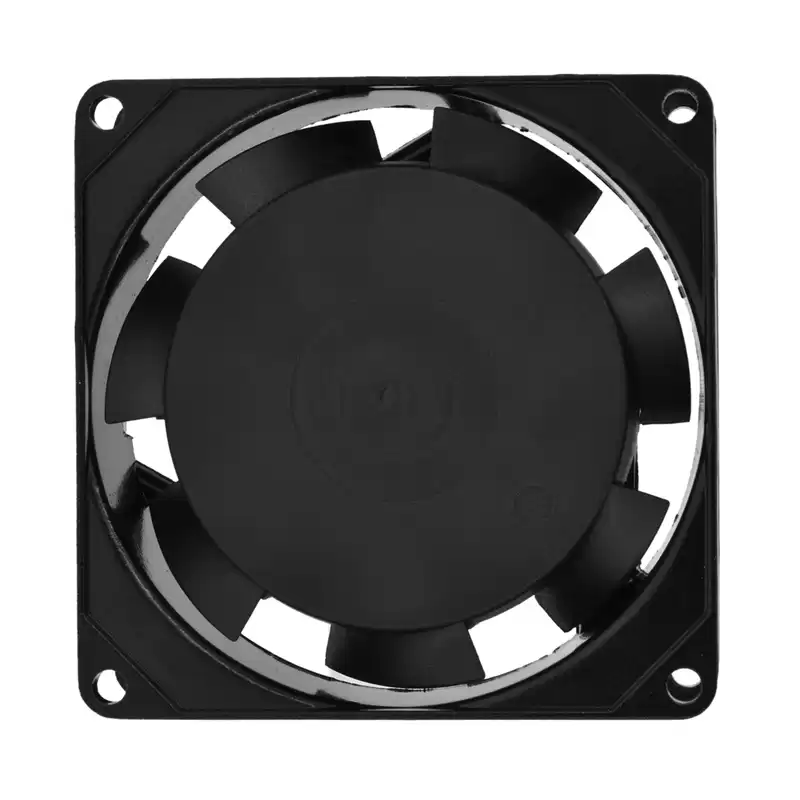

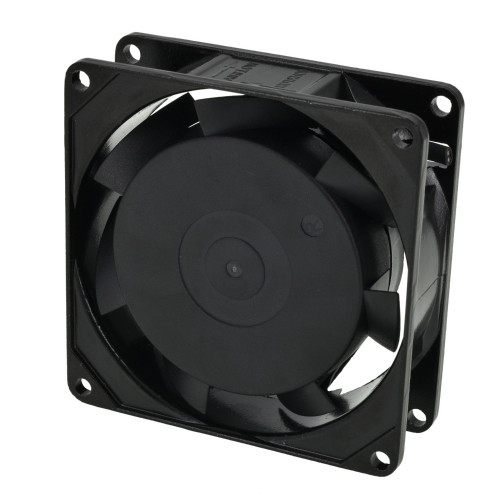

110V 220V Duall Ball Axial Industrial Cooling Fan, with a Aluminum alloy metal frame. It can operate stably at -10℃ - 70℃ and suitable for various environments.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

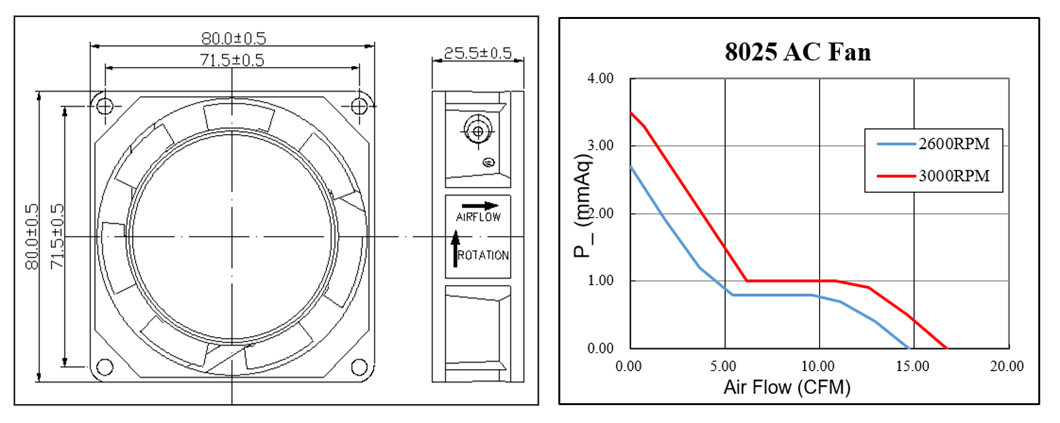

• Dimension of outer the frame is 80 mm(L) x 80 mm(W) x 25 mm(H) / The size of fan in inch is 3.15 in(L) x 3.15 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 71.5 ± 0.5 mm / 2.81 in.

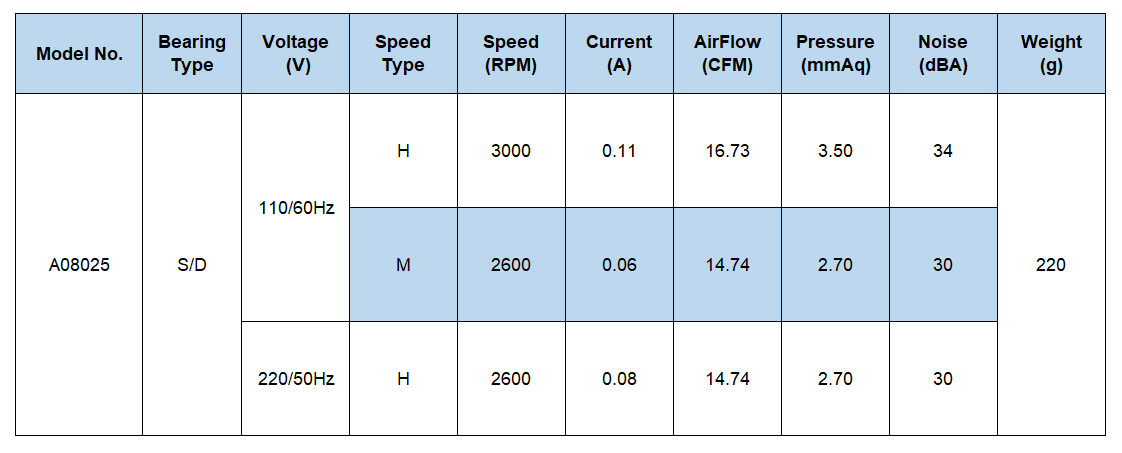

• Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.06 ~ 0.11 Amp | Speed: 2600 ~ 3000 RPM | Airflow: 14.71 ~ 16.73 CFM | Noise: 30 ~ 34 dBA | Pressure: 2.70 ~ 3.50 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

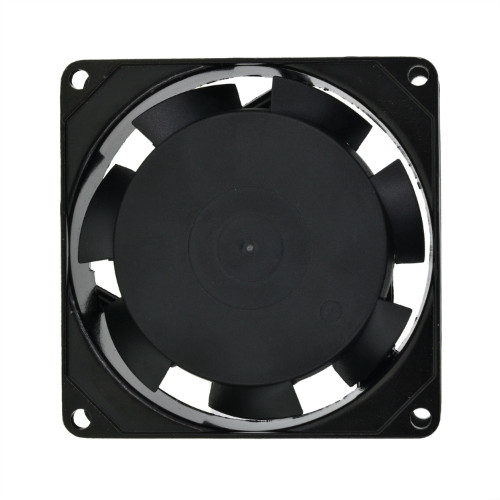

AC AXIAL FAN 80x80x25mm(3.15"x3.15"x0.98")

General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Compact axial fans have a square-shaped housing;
• Outstanding airflow performance with low static pressure;
• High-quality bearings ensure quiet operation and longer life;
• All Impellers are one body injected or directly welded onto rotor;
• Excellent choice to maintain just the right amount of cooling for the components.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Application

In refrigeration, air conditioning and building service industries, the axial cooling ventilation fan of AC motor can usually be used as the driving fan.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
