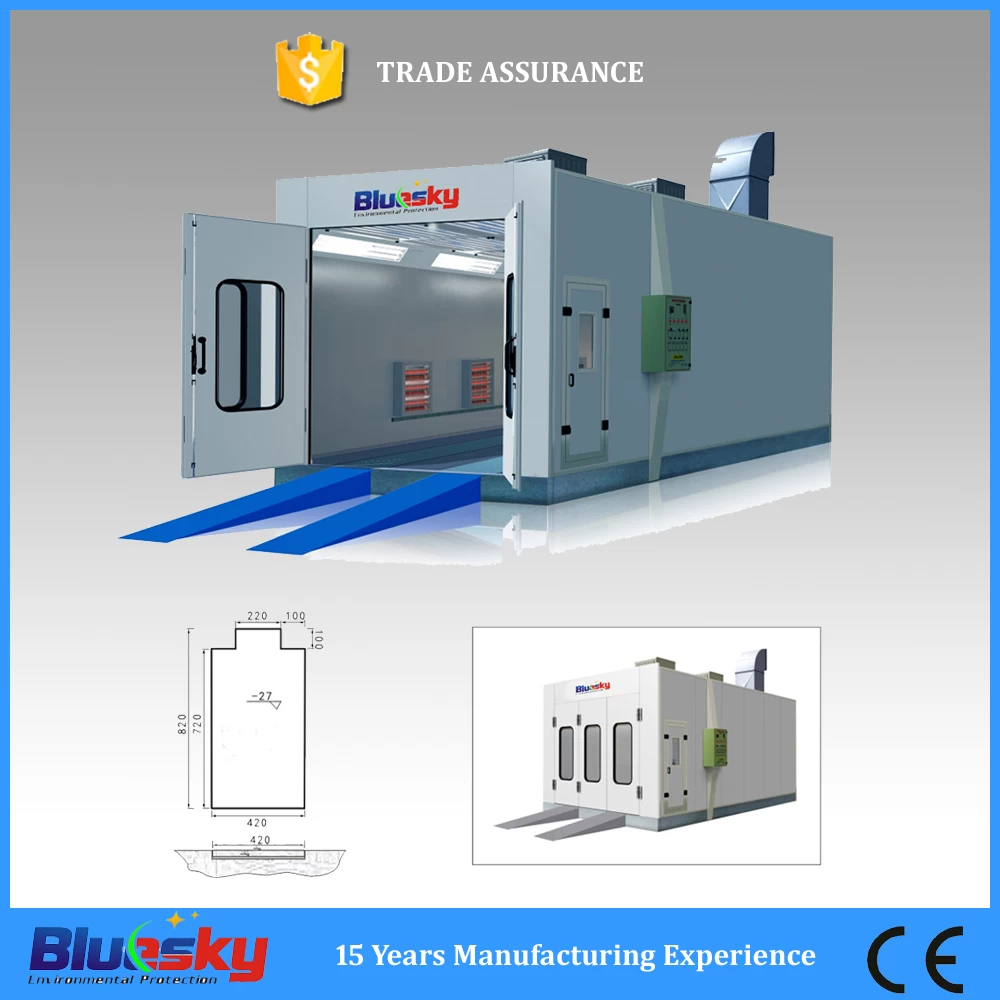

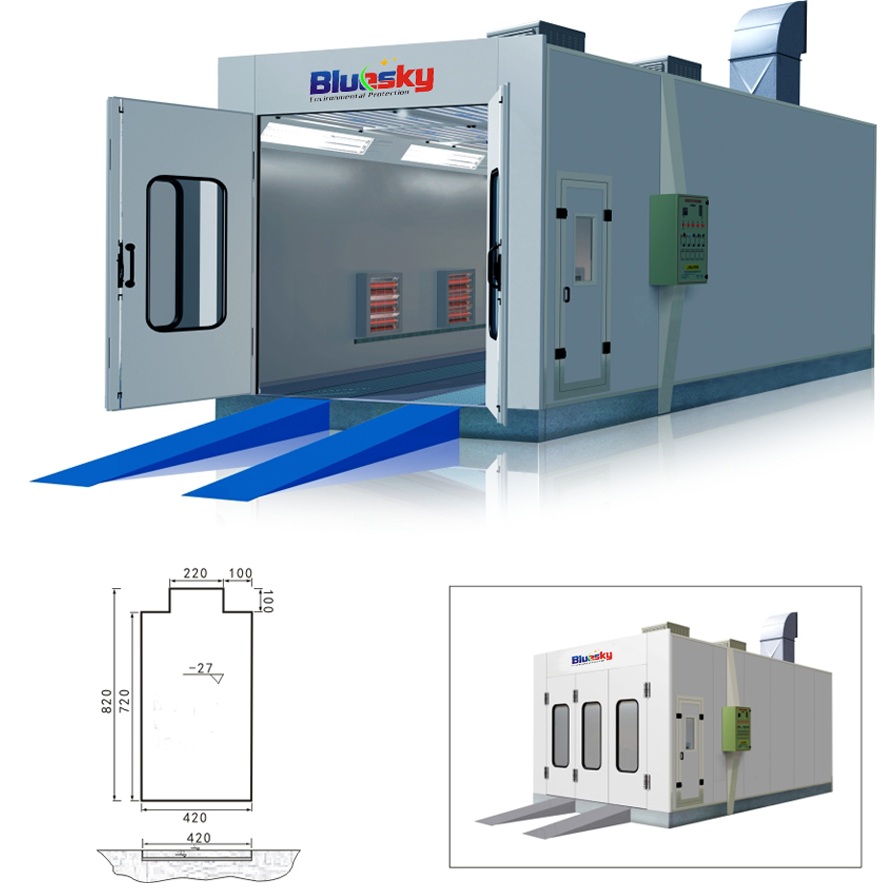

Electric Heating Down draft Spray Booth BSH-SP9100A
Main technical performance and parameter of electric heating spray booth:
Dimensions:
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
Outer Size
|
8,000
|
4,000
|
4,200
|
Internal Size
|
6,900
|
3,900
|
3,900
|
Entrance Door
|
Adopt with handle and lock
|
3,000
|
2,600
|
Operatior’s Door
|
Adopt with handle and Anti-Explosion
|
800
|
2,000
|
| Features: |
Total power 30 kw; 380V/3ph/50hz; Noise < 80db
|
| I. Wallboard & Roof board |
Adopt high quality EPS panel, thickness: 50mm, socket type assembling. Density is
12kg/m3 0.476mm thick colored steel on both side. Roof board with 0.7mm zinc plated steel sheet, single layer.
|
| II. Foundation System |
All around with welded 1.2mm zinc plated steel sheet,
Bearing bracket with welded zinc plated steel is full of hot dip galvanized steel.
Two rows of grid and three rows of diamond plate.
|
| III. Heating System |
Adopt surface type infrared heat lamp,10 group×3pcs, 1kw/pc.
|
| IV. Filtration System |
Inlet with high grad fiberglass filter, which filtered the dust larger than 10um,
roof with EU5 CC-600G filter, TSP value: ≤1.4mg/m3.
|
| V. Light System |
With Philips lamps and electronic ballast, with 45 degree installation at inner side of roof
|
| VI. Ventilation System |
Adopt two pcs energy saving fan, power 1.5kw, Air volume: 24000m3/h;
Rated air speed: 0.3m/s, air changes; 260 times/h.
With 3 pcs straight air ducts, 1pc ellow air duct.
|
| VII. Control Panel |
One unit, including lighting switch, painting switch, warm painting, baking temperature, time setting, urgent stop switch. All components with famous domestic brand .
|
| VIII. Other Include |
All sets of hardware, fasteners and sealants
|
Model
|
BSH-SP9100A
|
BSH-SP9100B
|
BSH-SP9200A
|
BSH-SP9200B
|
BSH-SP9300A
|
BSH-SP9300B
|
BSH-SP9500
|
Fuel
|
Electric
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Internal size
|
6.9*3.9*2.65m
|
6.9*3.9*2.75m
|
6.9*3.9*2.75m
|
6.9*3.9*2.75m
|
8*4*3m
|
8.6*4.5*3.5m
|
15*5*4.8m
|
Entrance door
|
3*2.6m
|
3*2.7m
|
3*2.7m
|
3*2.7m
|
3*2.9m
|
3*3.5m
|
4*4.8m
|
Personal door
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m
|
0.8*2m (2 units)
|
Panel
|
50mm
|
50mm
|
75mm
|
75mm
|
50mm
|
75mm
|
75mm
|
Air-intake fan
|
2*1.5kw
|
2*4KW
|
2*4KW
|
1*7.5KW
|
2*5.5KW
|
2*5.5KW
|
4*7.5KW
|
Exhaust fan
|
0
|
0
|
1*4KW
|
1*7.5KW
|
1*5.5KW
|
1*7.5KW
|
2*7.5KW
|
Air speed
|
0.3m/s
|
0.25m/s
|
0.3m/s
|
0.4m/s
|
0.35m/s
|
0.3m/s
|
0.3m/s
|
Ceiling Lights
|
32*36W
|
32*36W
|
32*36W
|
32*36W
|
40*36W
|
40*36W
|
64*36W
|
Bottom Lights
|
0
|
32*36W
|
32*36W
|
32*36W
|
32*36W
|
32*36W
|
64*36W
|
Burner
|
0
|
G10*1
|
G20*1
|
G20*1
|
G20*1
|
RG5S*1
|
RG5S*2
|
