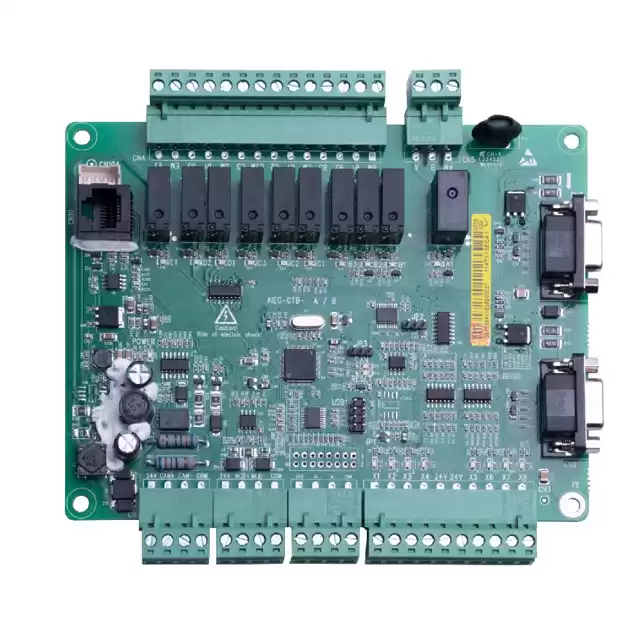

Elevator Car Top Board AIEC-CTB
|
|
Dimensions (mm)
|
Installation size (mm)
|
Installation aperture (mm)
|
|
162*125
|
152*115
|
Φ4.5
|
Feature:
● 32-bit processor, serial communication, simple wiring, reliable and stable
● 8 way digital inputs, 10 way relay outputs
● Support car digital / analog weighing signal input
● Support LCD operation panel for easy modification and viewing of system parameters
● Car top board input and output are programmable
AIEC−CTB is the car control board (car top board), it has 8 digital inputs, 8 relay outputs as standard (10 relay outputs for non−standard CTB) and 1 AI input.

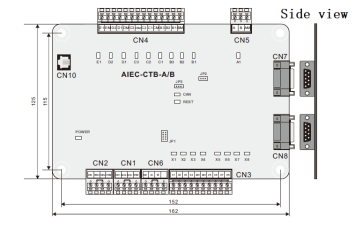

Appearance and dimensions of the CTB (unit: mm)
