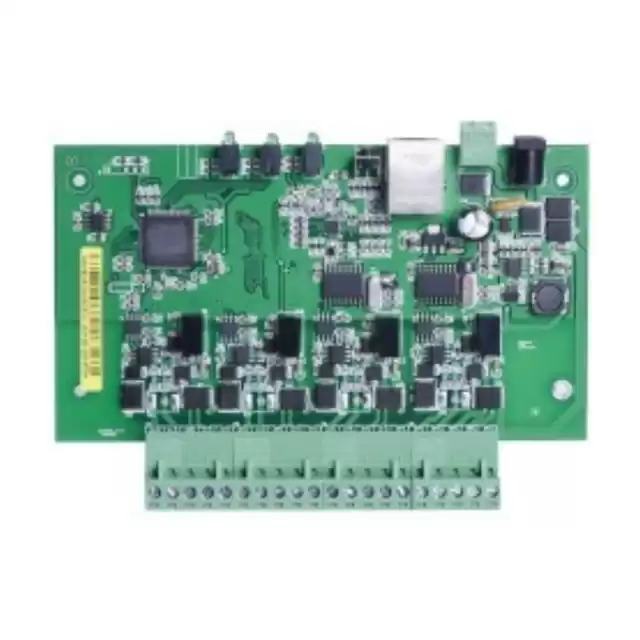

Elevator Group Control Board AIEC-GCB-A
|
|
Dimensions (mm)
|
Installation size (mm)
|
Installation aperture (mm)
|
|
156.5*86
|
146.5*76
|
Φ4.5
|
Feature:
● Can control 3~8 elevators to meet the needs of most customers
● Use the shortest waiting time principle to assign landing call signals to improve elevator operating efficiency
● Adopt CANBUS serial communication transmission to realize high-speed and reliable data transmission
● Automatically cut off abnormally operating elevators and automatically restore group control functions
● Optional supporting host computer debugging software for remote monitoring and debugging
Description:
A GCB (AIEC−GCB−A) is additionally required to implement group control of more than two elevators.A single GCB supports group control of a maximum of 4 elevators.
If group control of more than 4 elevators is required, two GCBs need to be installed.This scheme is customized. For details, consult manufacturer.
Elevator 1 # Elevator 2 # Elevator 3 # Elevator 4 #
Figure 4−3 Wiring diagram of group control
|
Function Code
|
Name
|
Setting Range
|
Setting in Group Control
|
Remarks
|
|
F6−07
|
Number of elevators in parallel/
Groupmode
|
1～4
|
1～4
|
Number of elevators in parallel/
Groupmode
|
|
F6−08
|
Elevator No.
|
1～4
|
1～4
|
F6−08=1：elevator 1 #;
F6−08=2：elevator 2 #;
F6−08=3：elevator 3 #;
F6−08=4：elevator 4 #;
|
|
F6−60
|
Program control selection
|
−−−
|
Bit1 = 0:
Group control board is AIEC−GCB−A
|
Select strictly according to the group control board model
|
|
−−−
|
Bit4 = 1:
Group control in parallel with AIEC3300
|
Set Bit4 to 1 when the AIEC3300
is involved in group control.
|
