Feature:
●Standard configured with digital operation panel, English LCD operator are optional
●Support mobile phone APP debugging
●Support remote upgrade and debugging
●Cloud backup can be performed, copy of elevator parameters of the same type
●The combination of fault code and fault subcode makes fault positioning more accurate. Debugging and maintenance efficiency are improved
Description:
AIEC3300 series elevator integrated controller is equipped with a LED keypad as standard. It is connected to CN12 interface of the elevator integrated controller through 8−core extension wire. You can change the parameters, monitor the working state, and start/stop by the keypad. It is one of the main tools for commissioning and maintenance.

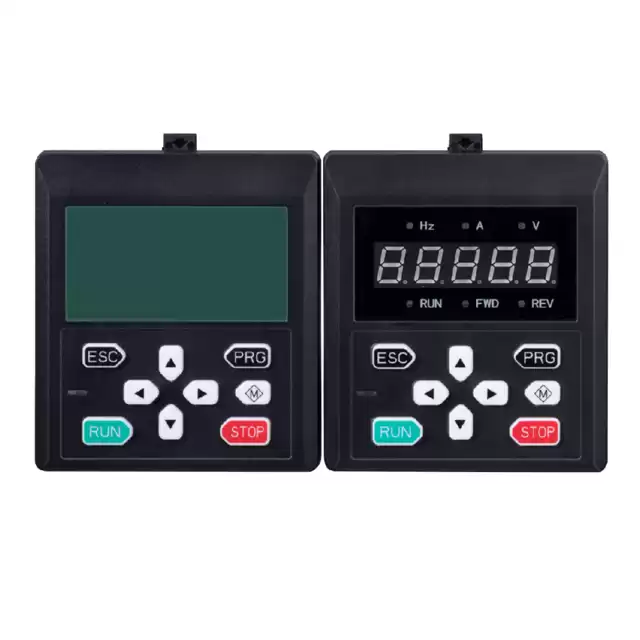

LED Operation Panel(AIEC−DP01) LCD Operation Panel(AIEC−DP02)
AIEC−DP01 unit indicator and other status indicators.
|
Indicator status
|
Color
|
Meaning
|
|
Unit light
|
Hz
|
Frequency indicator
|
Green
|
On: The unit of current display parameter is the running frequency.
|
|
A
|
Current indicator
|
Green
|
On: The unit of current display parameter is current.
|
|
|
V
|
Voltage indicator
|
Green
|
On: The unit of current display parameter is voltage.
|
|
|
Hz+A
|
Speed indicator
|
Green
|
On: The unit of current display parameter is running speed.
|
|
|
Hz+V
|
Percentage indicator
|
Green
|
On: The unit of current display parameter is percentage
|
|
|
A+V
|
Time s indicator
|
Green
|
On: The unit of current display parameter is time s
|
|
|
Hz+A+V
|
Speed m / s indicator
|
Green
|
On: The unit of current display parameter is speed m / s
|
|
|
No unit indicator
|
−
|
On: The unit of current display parameter is no unit.
|
|
|
indicator
|
RUN
|
Running indicator
|
Red
|
On: Integrated Controller is running
Off: Integrated Controller has stopped output
|
|
FWD
|
Forward indicator
|
Red
|
On: Integrated Controller is forward
Off: Integrated Controller is reversed
|
|
