Elevators and Escalator Parts
Universal Escalator Skirt Brushes
AOQUN escalator skirt brush 's friction≥1 Million Times without any deformation.
With safety in mind, AOQUN is designed to assist in the prevention of sidewall entrapment accidents on moving escalators or walking paths. The durable universal escalator skirt brushes provide a tactile reminder to passengers to keep their feet and clothing away from the hazard zones, between the moving step and the stationery sidewall, reducing the risk of an entrapment incident.
01 Product

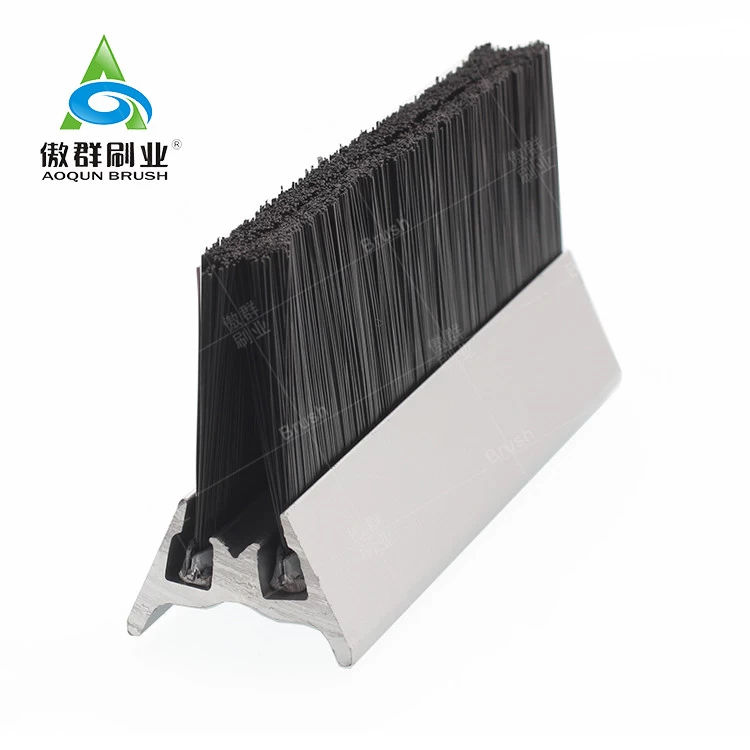

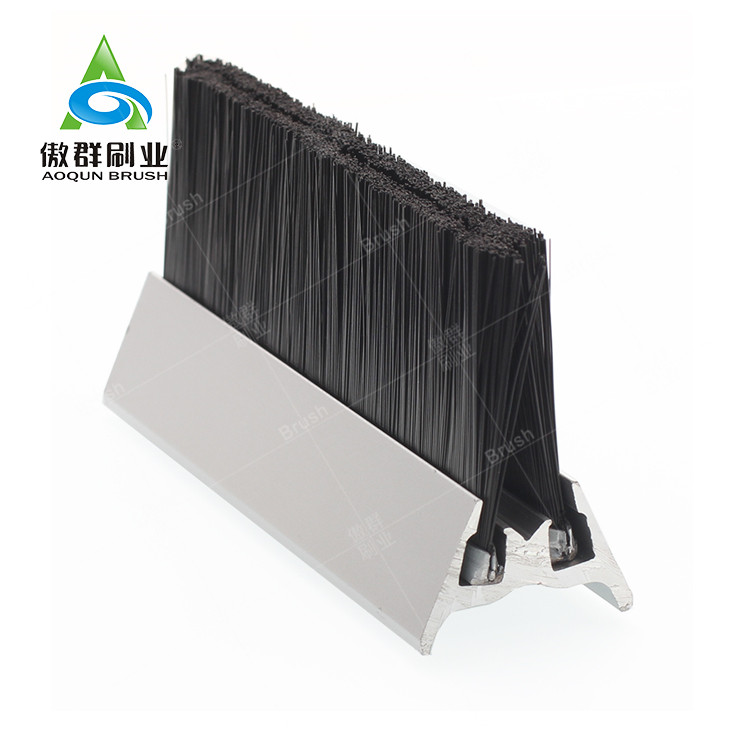

Description -AOQUN Universal Escalator Skirt Brushes is a combination of strip brush and aluminum profile.
The pure and newly nylon filament does not contain heavy metals, compliies with RoHS, SVHC, etc.

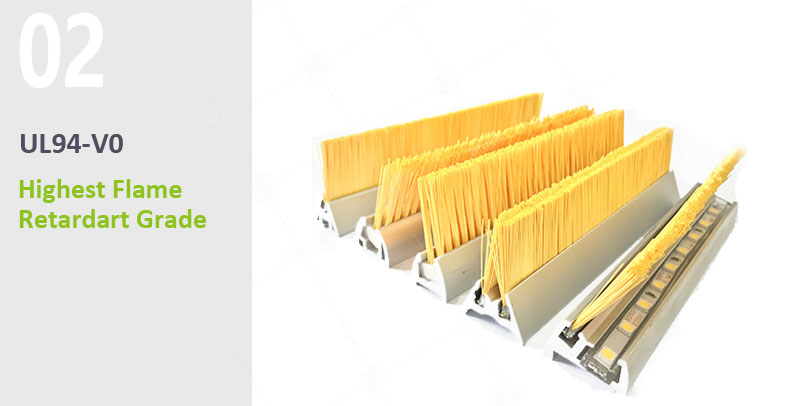

Comply with the UL94-V0 flame retardant standards. Extinguish immediately when remove from the fire.
V-2: After twice 10 second flammability
tests , the flame was extinguished within 60 seconds. Some burning substances dropped.
V-1: After twice 10 second flammability
tests , the flame was extinguished within 60 seconds. No burning substances dropped.
V-0: After twice 10 second flammability
tests , the flame was extinguished within 30 seconds. No burning substances dropped.
The universal escalator skirt brushes passed 1 million times of high speed friction deformation test, which can suffer the friction of the high frequency running escalators.
ABS resin has the feature of excellent impact resistance, heat resistance, low temperature resistance, chemical resistance and electrical properties.

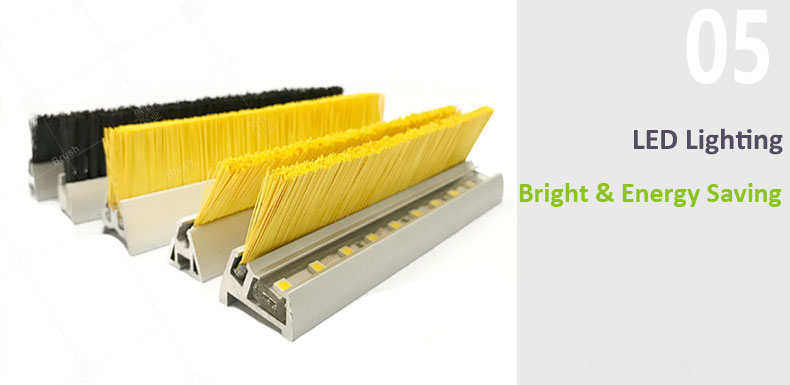

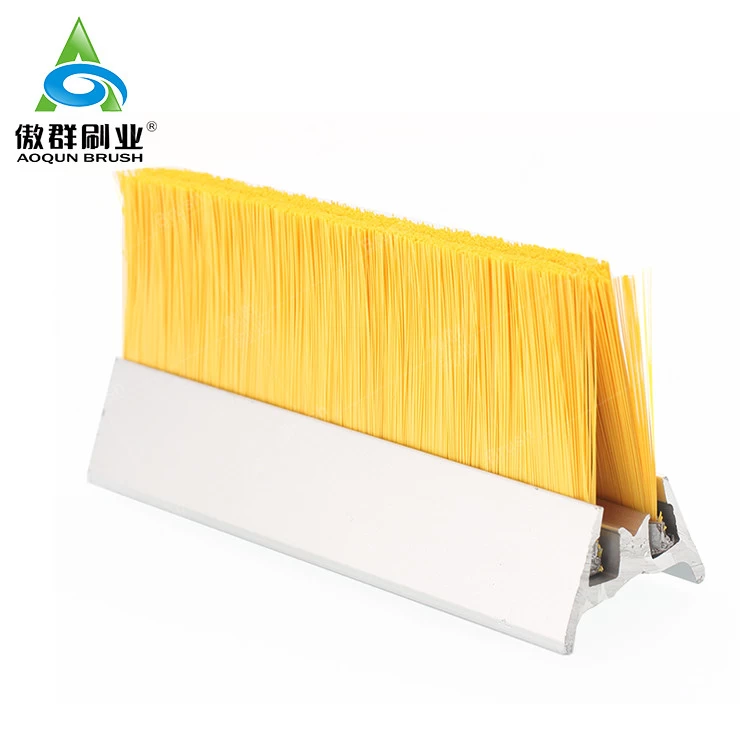

Bright yellow nylon flame retardant escalator skirt brush with LED lighting gives the passengers a strong warning feeling and upgrades the escalator safety and aesthetic effects. You can also choose the black bristle with/without the LED.
Provide a variety of national standard oxidation aluminum alloy brush bases and end-caps.
02 Products
Specifications and Size

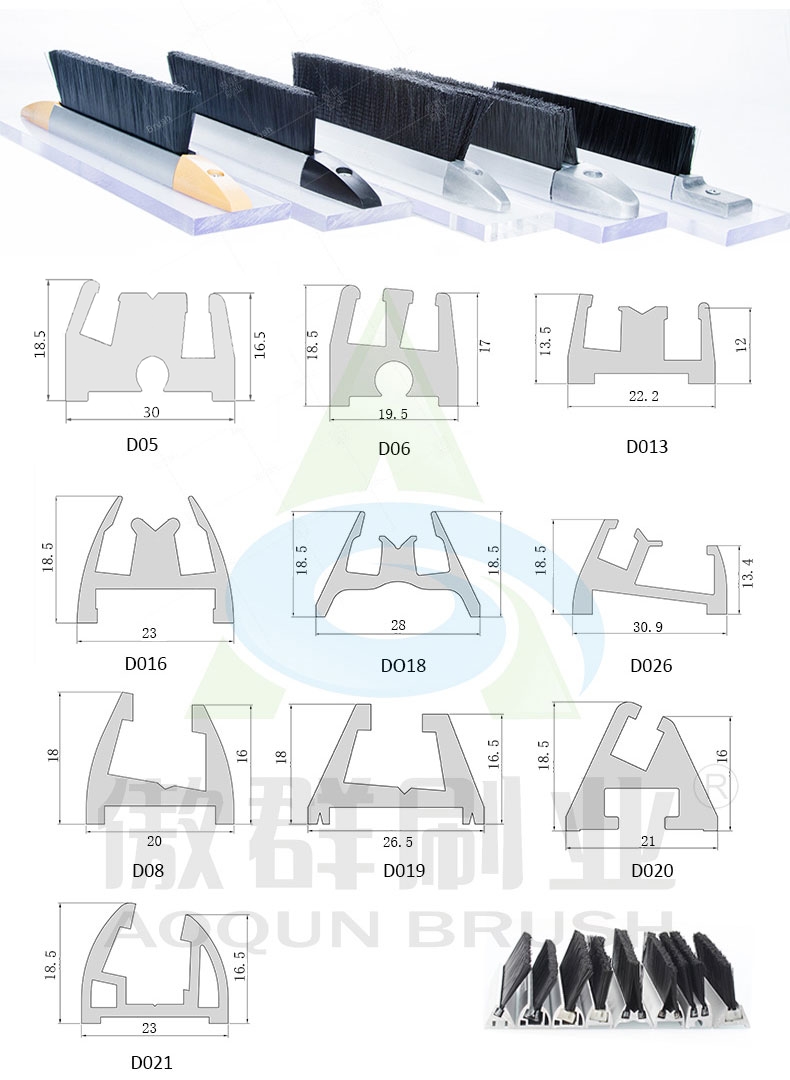

More Than 40 model of aluminum profile for your choice,Can be customized by your drawings.
|
Customization
|
|

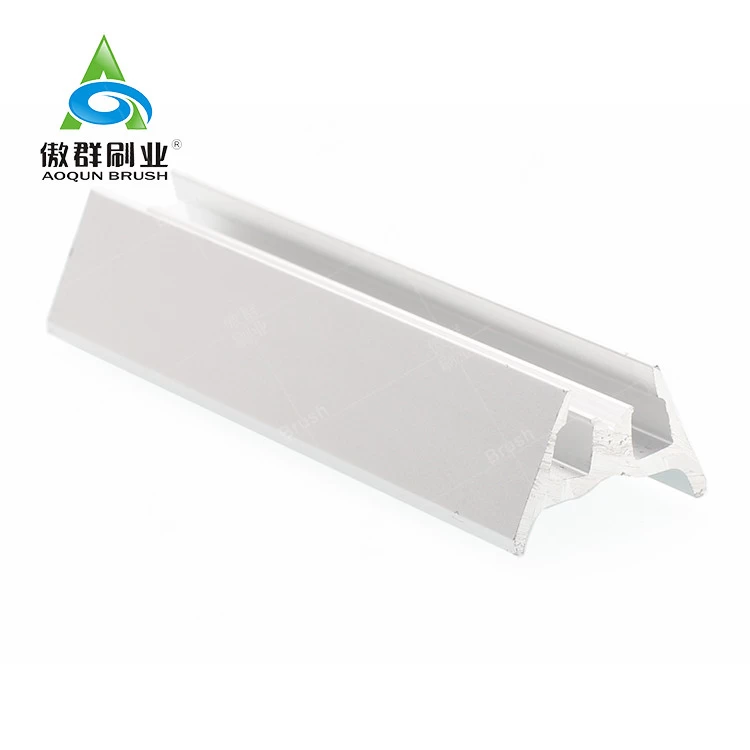

Aluminium Profile
|
Single Row, Double Rows
|
Base Width
|
19.5mm, 20mm, 22mm, 23mm, 28mm, 30mm, etc.
|
|
End-cap Material
|
Aluminium, Plastic
|
Brush Color
|

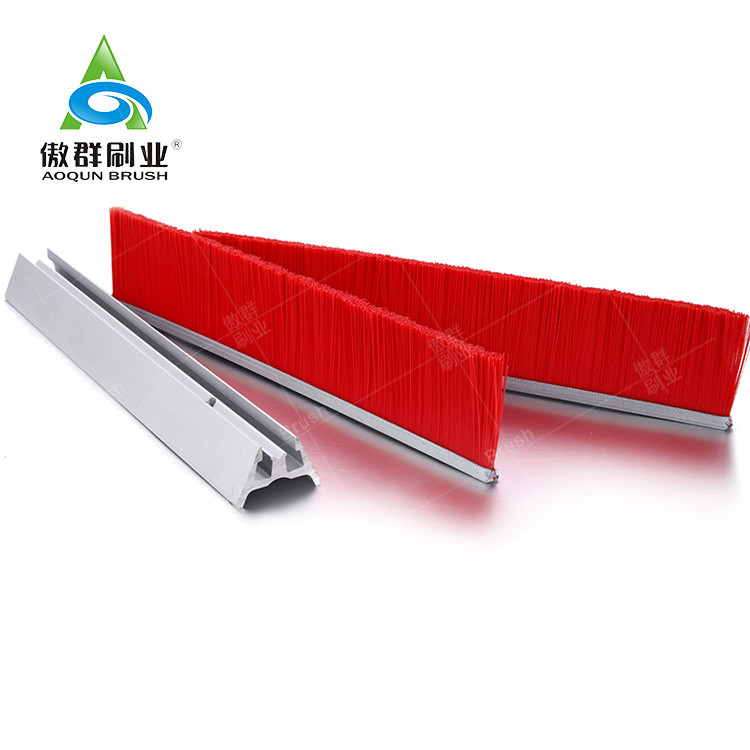

Black, White, Yellow, transparent, Red, etc.
|
|
Escalator Angle
|
6°, 12°, 30°, 35°
|
Brush Shape
|
Straight, Curved
|
|
Brush Material
|
PA, PP, PE, PET
|
Brush functions
|
Flame Retardant, Static-free, Wear-resistant
|
|
Honor Customers
|
Schindler, Toshiba, KONE, ThyssenKrupp, Otis, Hitachi, Mitsubishi, Fangda, etc.
|
Focus on Quality
For the products of each batch production,the size,tension,hand feeling and appearance must be strictly tested and controlled.
Honor Customers
AOQUN has established a long-term cooperative relationship with Schindler, Toshiba, KONE, ThyssenKrupp, Otis, Hitachi, Mitsubishi, Fangda and other internationally famous escalator enterprises. AOQUN’s escalator skirt brush for Escalator are sold to more than 50 countries and regions, provide a safer elevator and escalator riding experience and environment worldwide.
