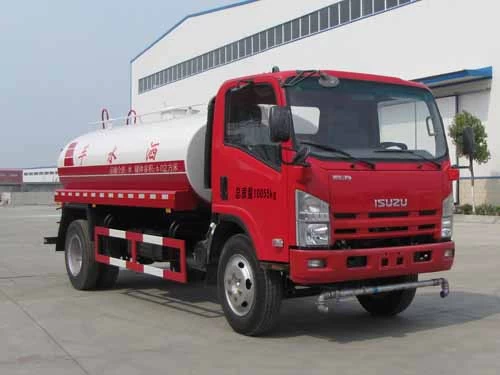

ELF 8000L Water Pump Truck Isuzu Drinking Stainless Steel Tanker
New isuzu water tanker truck 8000L,Isuzu street water spray truck,8000L
High Pressure Isuzu Water Tanker Truck, ELF 8000L Water Pump Truck Isuzu
Drinking Stainless Steel Tanker
Key Features:
◆ World-class ISUZU heavy duty Chassis, High power and Fuel efficiency, Reliability, Uptime
◆ As Manufacturer more than 10years, Professional, well design and Customed.
◆ The water tanker has safety guards and special power pump which can suck and discharge automatically.
◆ Water tanker equip with filter gauze and fire control connector, and water can come in along fireplug.
◆ Carbon Steel, Stainless Steel, and Aluminum Tanks Available
◆ Colors can be customized.
◆ Tank capacity can be customized. 3000L to 25000Liters
Main specifications:
Model
|
PT5100GJY
|
Driving Type
|
4x2 (Left hand drive)
|
Wheelbase
|
4175 mm
|
Engine
|
139 kw (190hp)
|
Tyre
|
8.25-16
|
Tank
|
Material:
|
Carbon steel(Q345)
|
Shell Body
|
4 mm nominal thickness
|
Head
|
5 mm nominal thickness
|
Tank shape
|
Ellipse
|
Capacity
|
Full capacity 6000L~8000L
|
Compartment
|
No
|
Shell Finish
|
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
|
Testing Pressure
|
36kPa, Water pressure test
|
Tank Accessories
|
Ladder:
|
Stainless Steel ladder fixed at rear of tank
|
Walkway Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
|
Handrail:
|
No
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|
Pump Device
|
Yes
|
Flow meter
|
Yes
|
Tool box
|
Small box
|
Color
|
As option
|
