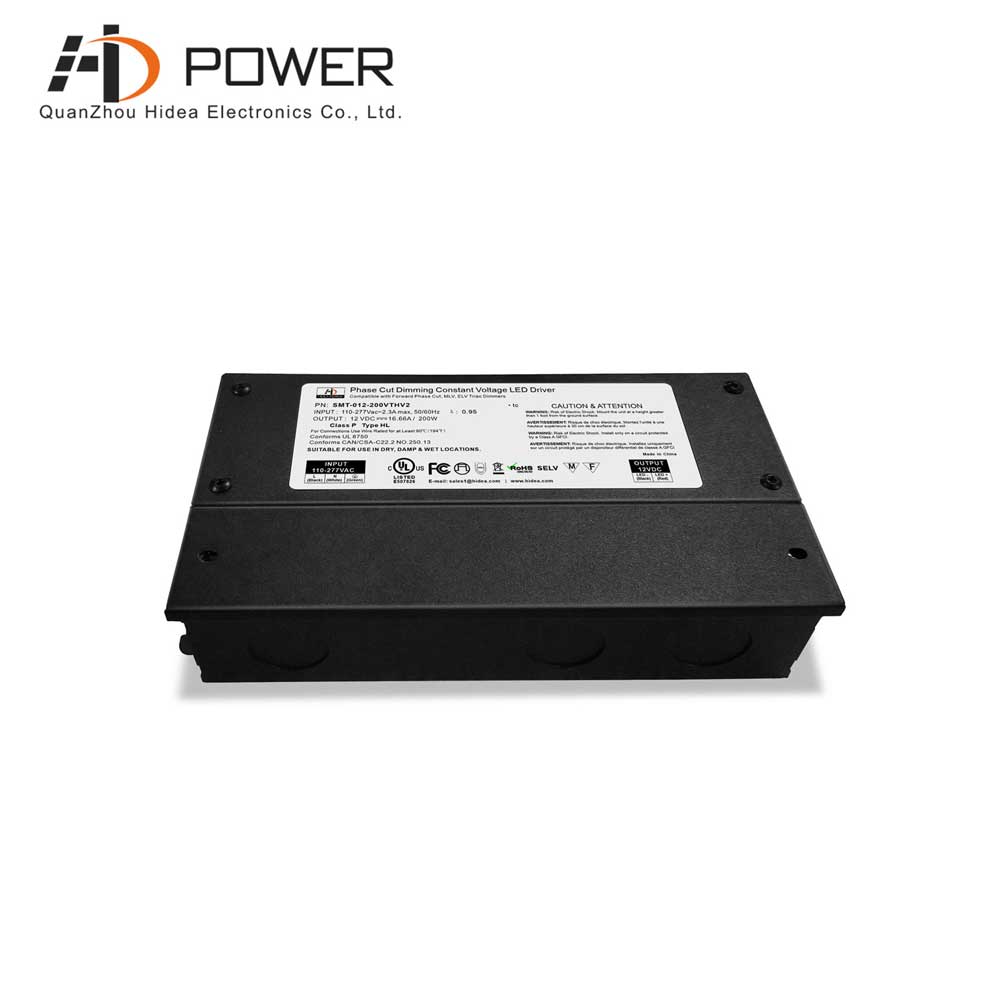

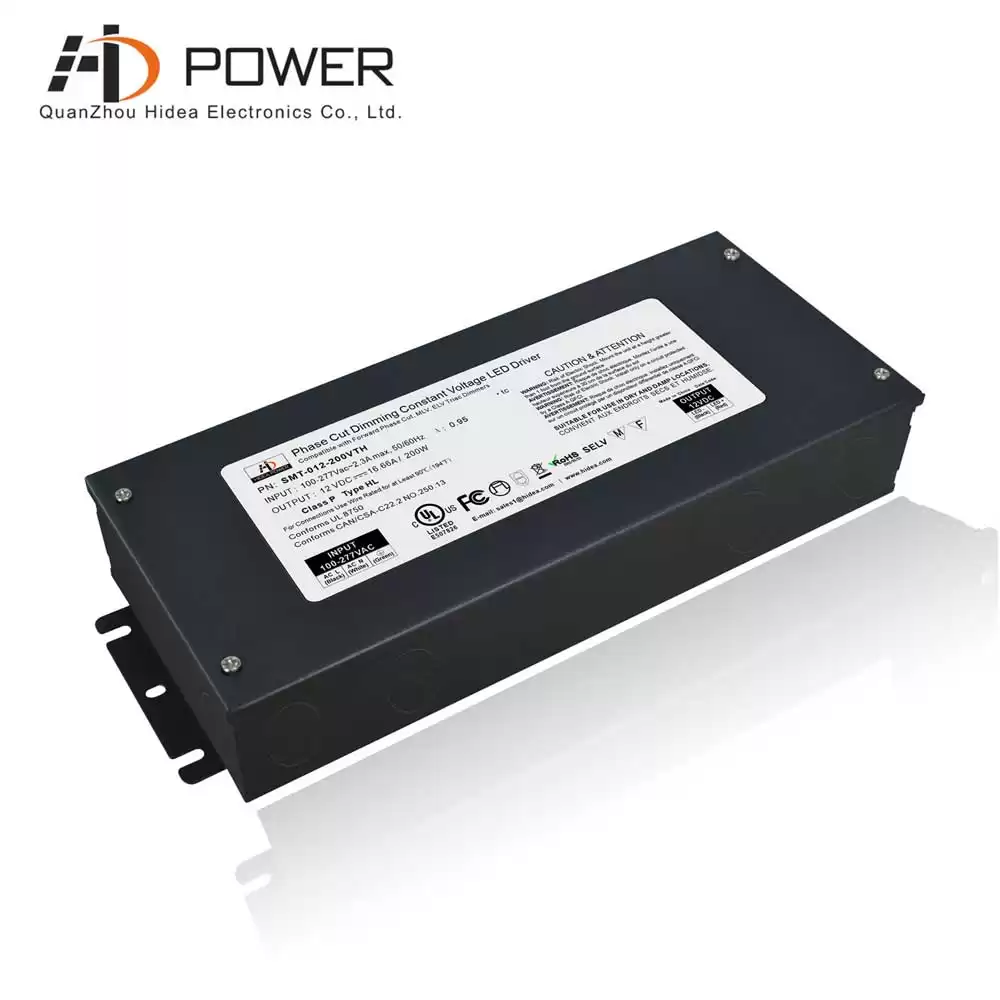

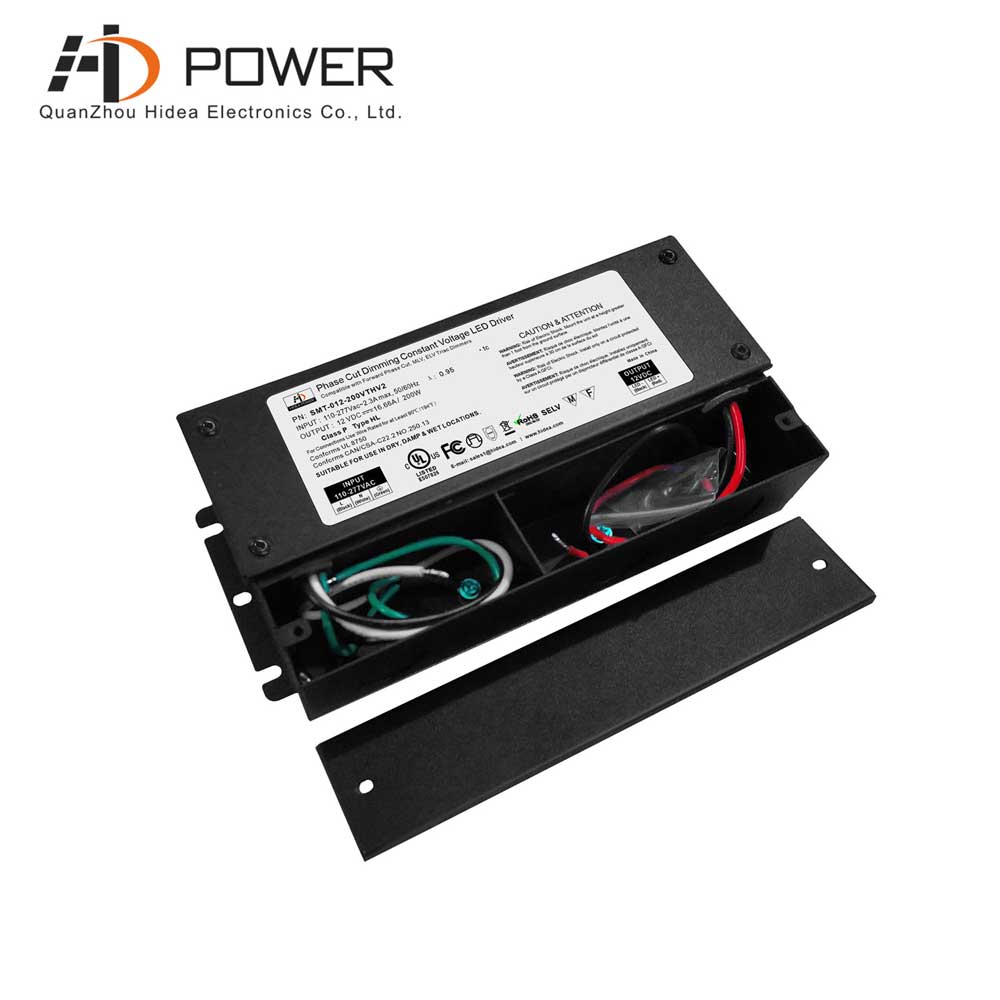

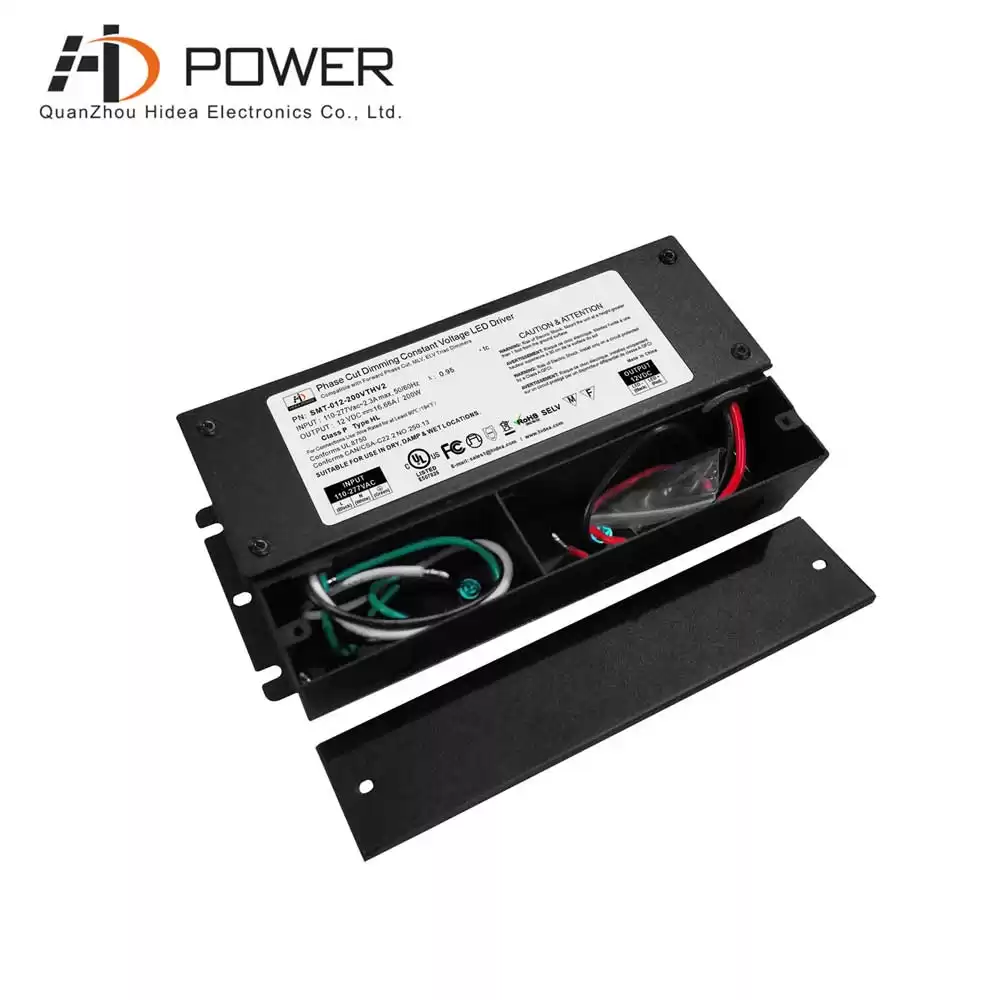

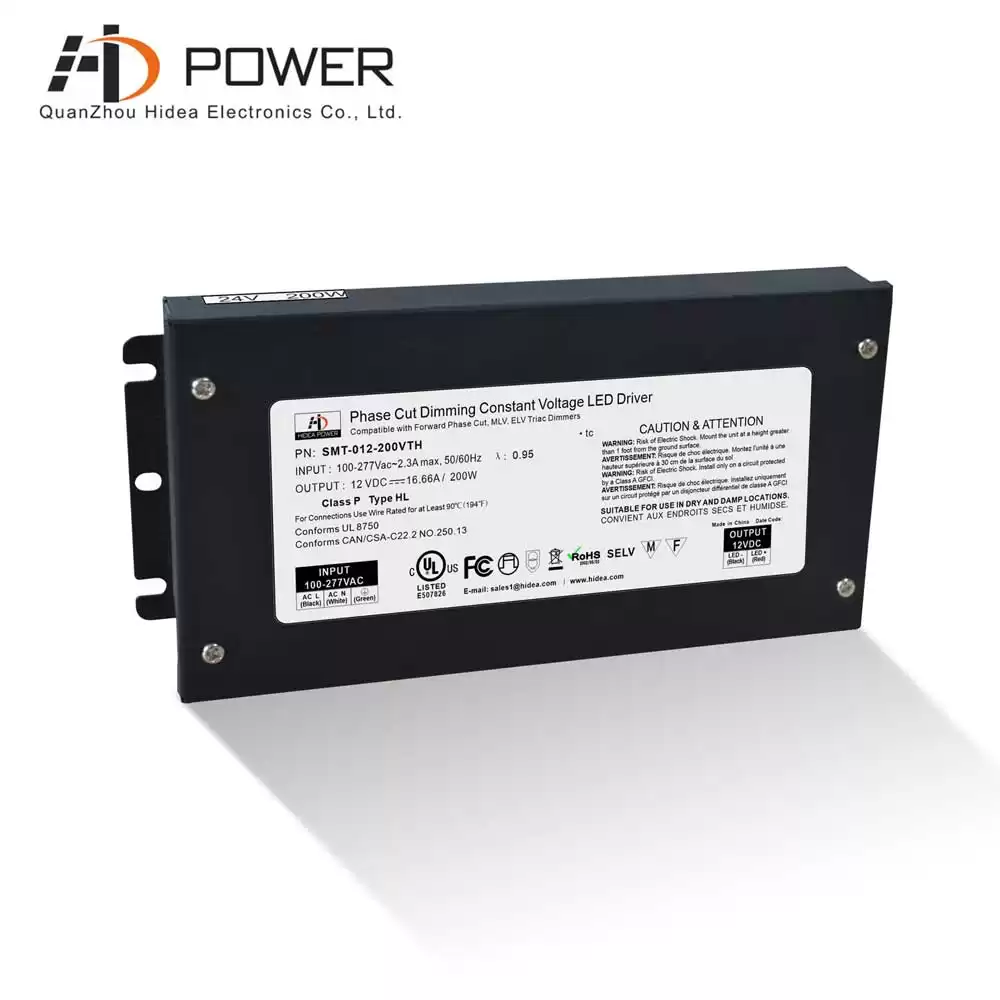

ELV MLV 12v 24v dimmable led transformer 200w
At led power supply selv, it will provide incredible illumination in virtually any environment (3500 lumens, 3000K). Ships with 21 feet of field-cuttable cord and twelve feet of aircraft cable.
Specification
|
Model
|
SMT-012-200VTH (1.0 ver)
|
SMT-024-200VTH(1.0 ver)
|
|
SMT-012-200VTHV2 (2.0 ver)
|
SMT-024-200VTHV2 (2.0 ver)
|
|
SMT-012-200VTHWV2 (3.0 ver)
|
SMT-024-200VTHWV2 (3.0 ver)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
16.66A
|
8.33A
|
|
Rated Power
|
200W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83%
|
86%
|
|
AC Current(Max.)
|
2.3A@110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition
|
|
is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg
|
|
Size
|
1.0 ver: 260*103*46mm (L*W*H);
|
|
2.0 ver.: 260*105*45mm (L*W*H);3.0 ver.: 260*125*45mm (L*W*H);
|
|
packaging
|
10PCS/CTN Carton size: 385*335*200mm
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

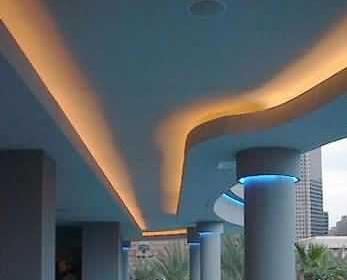

The led strip lights need high quality led strip to design the different lighting project, such as commercial lighting, residential lighting and supermarket.
Related Products
|

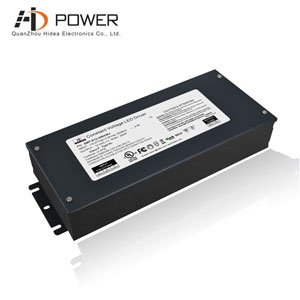

The one led driver 24v 200w is for dry and damp location, to suitable for you indoor application, to make your room more flexible and coloful.
Mode：SMT-012-200VWJ
Dimming Mode : Non-Dimming
Output Power : 200W
intput voltage：100~277V AC
Size：260*103*46MM （L*W*H）
|
