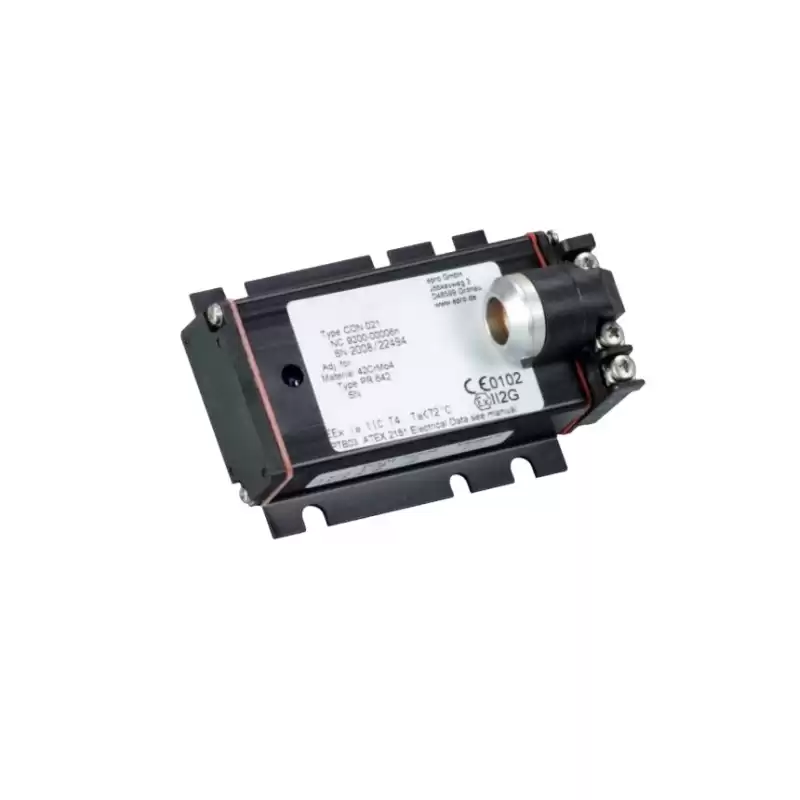

EPRO CON021 Eddy Current Signal Converter
The Epro CON021 is an Eddy-current proximimty sensor, these type of sensors measure both vibration and the distance between sensor tip and monitored rotating machine part. The measuring chain consists of a sensor, a cable and a converter and this chain is calibrated together.
Technical Parameters
· Compatible sensors: PR6422, 6423, 6424, 6425, 6426
· Meas. range: 1 mm to 24 mm acc. to sensor
· Sensor connected by LEMO plug
· Metallic box, protection class IP20
· Operating temperature: -35...+100 °C
· Power supply: -24 VDC, 15 mA
· Output signal: -2...-18 V or +4...-20 V
· Version CON021/91 for extended ranges up to 24 mm
· Pure analog device
· Configuration and calibration require hardware modifications
· Obsolete, use EZ1000 for new projects
| Dynamic Performance |
| Frequency Range (-3 dB) |
0 to 20000 Hz |
| Rise Time |
<15 µs |
NOTE: Designed for PR6422, PR6423, PR6424, PR6425, PR6426, PR 6453
For extended range use: CON021/91x-xxx
PR6425 always requires extended range converter |
|
| Environmental |
| Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
| Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
| Protection Class |
IP20 |
| Power & Electrical |
| Supply Voltage Range |
-23V to -32V (Output Range -4V to -20V) |
| |
-21V to -32V (Output Range -2V to -18V) |
| Physical |
| Housing Material |
LMgSi 0.5 F22 |
| Weight |
~120 grams (4.24 oz) |
| Mounting |
4 Screws M5x20 (Included in Delivery) |
| Connections: Transduer |
Self-Locking Lemo-Plug |
| Supply/Output |
Screw Terminal Type (max.1.5mm2,wire) |
