Data Sheet: Emerson KJ3008X1-BA1 (12P2293X052) – Sequence-of-Events (SOE) Module
Product Identity

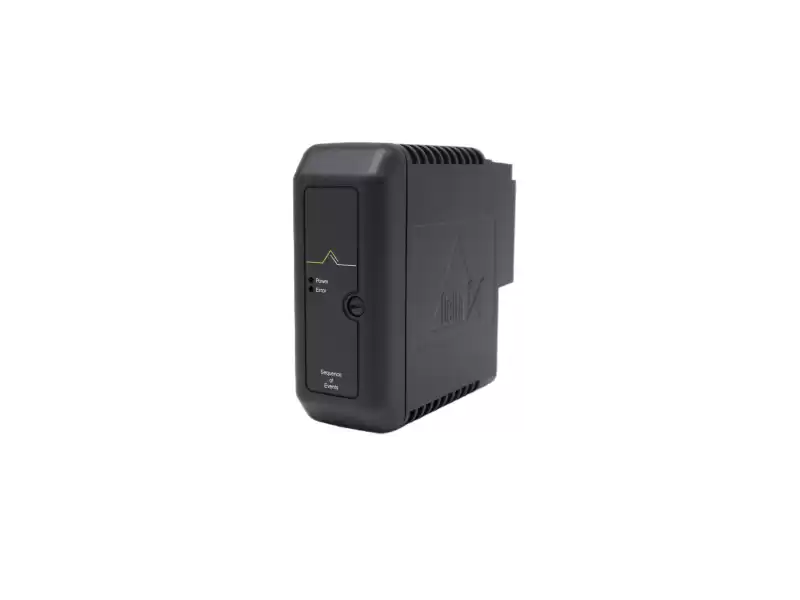

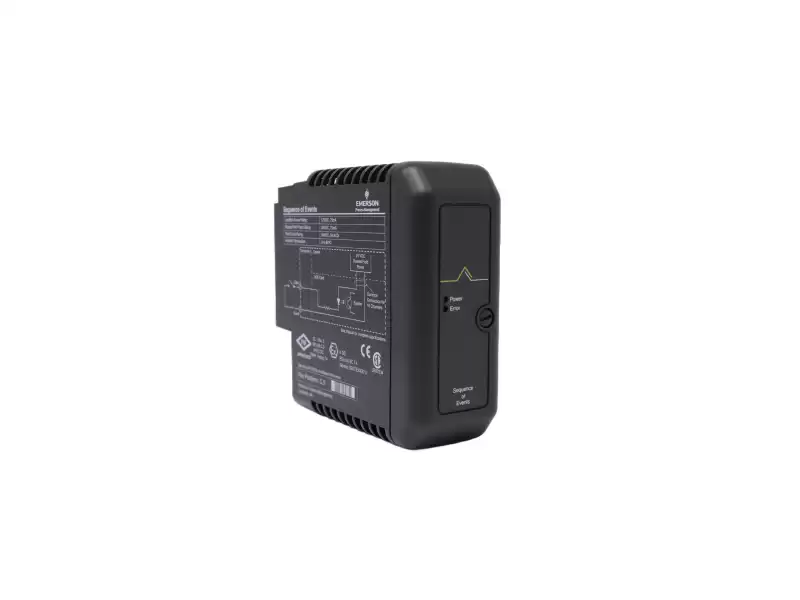

KJ3008X1-BA1 (12P2293X052) is a DeltaV S-series Sequence-of-Events (SOE) module that records status changes with 1 ms time-stamp resolution. It is ideal for trip audits, safety forensics and sequence-of-events reporting in power, oil-and-gas and chemical plants.
Practical Details
• Inputs: 8 isolated dry-contact / 24 VDC digital inputs
• SOE resolution: 1 ms (UTC-synchronized via DeltaV time-server)
• Scan rate: 1 kHz per channel
• Memory: 32 k events on-board, auto-download to workstation
• Power: 24 VDC from back-plane, 1.8 W max
• Isolation: 250 Vrms channel-to-bus; 1500 Vrms surge withstand
• Hot-swap: supported; module inserts/removes under power
• Temperature: –40 … +70 °C; ISA-S71.04 G3 corrosive-air rating
• Hazardous area: ATEX, IECEx, cFMus Zone 2 / Div. 2
• Dimensions: 11.8 × 4.1 × 10.5 cm; 0.18 kg
Industry Use-Cases
• Power-generation relay monitoring – 1 ms stamps pinpoint breaker opening sequence during grid disturbance.
• Pipeline compressor station – logs emergency shutdown valve vs. pressure switch order for regulatory audit.
• Chemical batch reactor – captures interlock chain during exothermic runaway to verify safety system response.
Ready-to-Ship DeltaV Kit
|
Part Number
|
Description
|
|
KJ3222X1-BA1 12P2532X072
|
8-Ch. 4-20 mA HART AI
|
|
KJ3225X1-BA1 12P4114X122
|
8-Ch. RTD / TC AI
|
|
KJ3203X1-BA1 12P2241X042
|
8-Ch. 24 VDC DI
|
|
KJ3204X1-BA1 12P2506X062
|
8-Ch. Relay DO
|
|
KJ3221X1-BA1 12P2531X052
|
8-Ch. 4-20 mA AO
|
|
KJ3002X1-BA1 12P0680X092
|
Redundant AO 4-20 mA
|
|
KJ3001X1-BB1 12P0550X162
|
32-Ch. 24 VDC DI
|
|
KJ3001X1-BB1 12P0550X192
|
32-Ch. 24 VDC DO
|
|
KJ4001X1-NB1 12P3368X012
|
LocalBus dual-left extender
|
|
KJ4010X1-BG1 12P0830X072
|
LocalBus right extender
|
|
KJ4006X1-BP1 12P4733X052
|
40-pin mass terminal block
|
|
KJ4002X1-BF2 12P3619X012
|
4-slot I/O carrier
|
|
KJ4005X1-BC1 12P1995X012
|
8-slot I/O carrier
|
|
KJ4003X1-BA2 12P1563X012
|
Power supply 24 VDC 10 A
|
|
KJ4003X1-BB2 12P1564X012
|
Redundant power supply
|
Contact – Pick Your Channel
• Quote: ab@mooreplc.com
• Chat: +86-18106909650 (Mon–Fri, 08:00–18:00 CST)
• WhatsApp: +86-138-0000-1234 (24 h)
All factory-new, 12-month warranty, same-day dispatch.
