Datasheet: Emerson KJ4001X1-NB1 (12P3368X012) – Horizontal LocalBus Dual-Left Extender
Contact: ab@mooreplc.com | Worldwide same-day dispatch

Product Identity

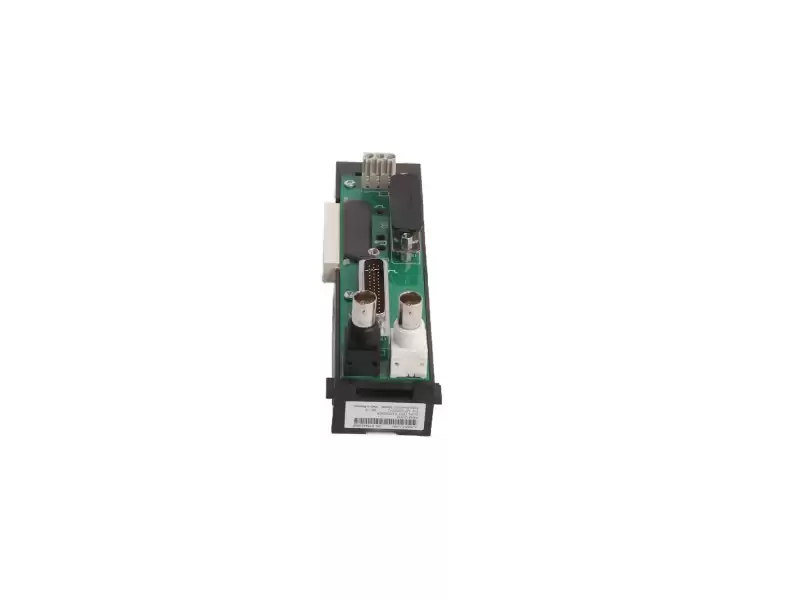

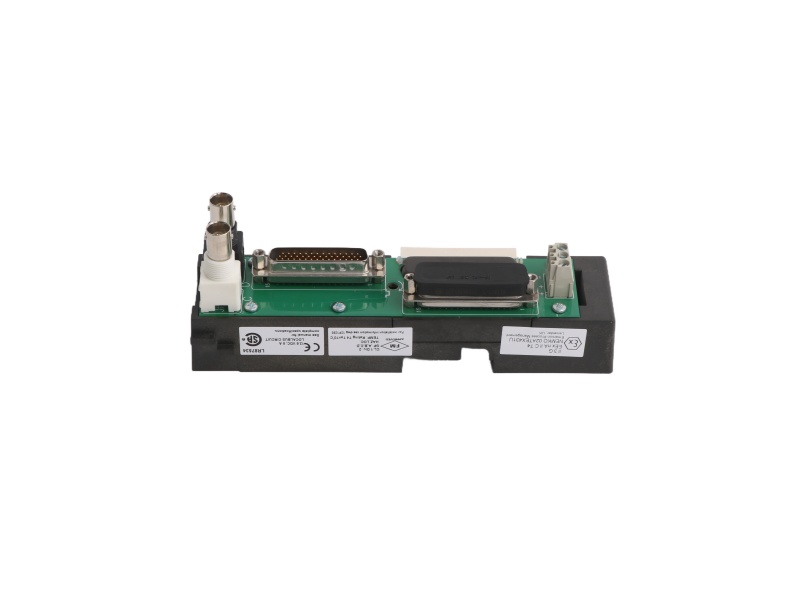

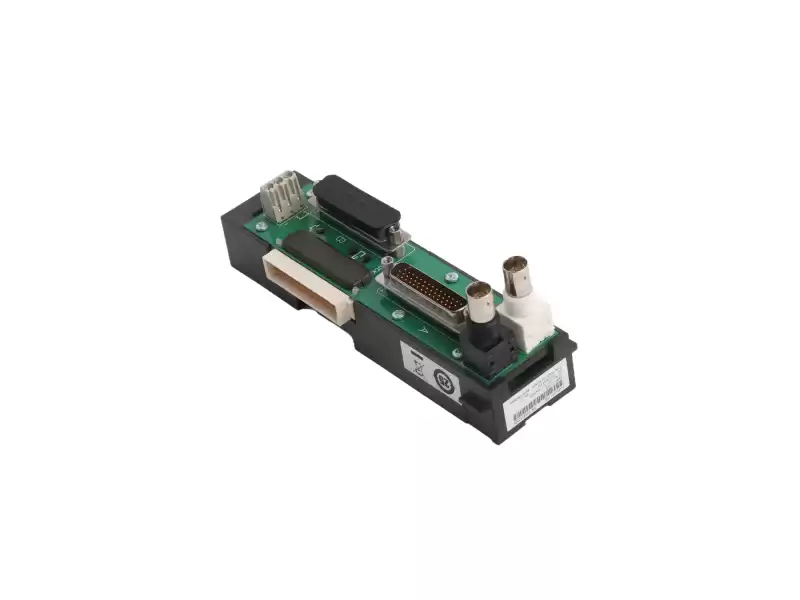

KJ4001X1-NB1 (12P3368X012) is a 1-wide, dual-left LocalBus extender for Emerson DeltaV S-series carriers. It lengthens the 12 VDC LocalBus ribbon so additional I/O carriers can be mounted side-by-side while keeping the 500 kbps bus speed unchanged. The module is keyed “left-hand” only; the mirror right-hand version is KJ4010X1-BG1 12P0830X072.

Practical Details (vendor-verified)
• Bus speed: 500 kbps (no degradation after extension)
• LocalBus power: 12 VDC, 8 A max carried through extender
• Hot-swap: NOT supported—power must be removed before insertion/removal
• Mechanical key: left-hand only; prevents reverse mounting
• Temperature: –40 °C … +70 °C; ISA-S71.04 G3 corrosive-air rating
• Vibration/Shock: 1 mm p-p (2-13.2 Hz) / 0.7 g (13.2-150 Hz) / 10 g ½-sine 11 ms
• Max. total length: 6.5 m for any chain of carriers + extenders + ribbon
• Hazardous area: II 3G Ex ec IIC Gc, FM/ATEX Zone 2 / Div. 2

Installation Quick-Check

Ø Power down the rack – NB1 is NOT hot-swappable.

Ø Snap extender onto left side of source carrier until key latches.

Ø Route LocalBus ribbon (max 6.5 m total) to next carrier; secure with cable clamp.

Ø Power up; verify “ACTIVE” LED on new carrier = solid green within 5 s.

Ø If LED blinks red, check ribbon orientation and total length ≤ 6.5 m.
