EMF2102IBCV001  Lenze  Frequency inverter

The Lenze 8200 AC Drive frequency inverter. Complete with everything you need for convenient operation, handling, diagnostics and communication. This is what the 8200 vector modular range of frequency inverters in the power range from 0.25 to 90 kW stands for. Pluggable function modules enable precisely tailored integration of the 8200 vector into the control and automation architecture of your machine or installation.

Power: 11kW

Amps: 23.5

Supply: Three Phase 400v

Model: E82EV113K4C

Filter: Built-In

Performance: High Performance

Dimensions: 18 20 30

Weight: 7 kg

Torque: Constant Torque General Purpose

Their compact dimensions of the 11kW Lenze 8200 AC Drive vector frequency inverter allows you to save space in your control cabinet. For individual cooling concepts, we offer the "push-through technique" and "cold plate technique" models. The units are operated either via a plug-in Keypad XT control console or a PC in connection with the convenient and free-of-charge Global Drive Control easy operating software

Note Keypad XT is an option.

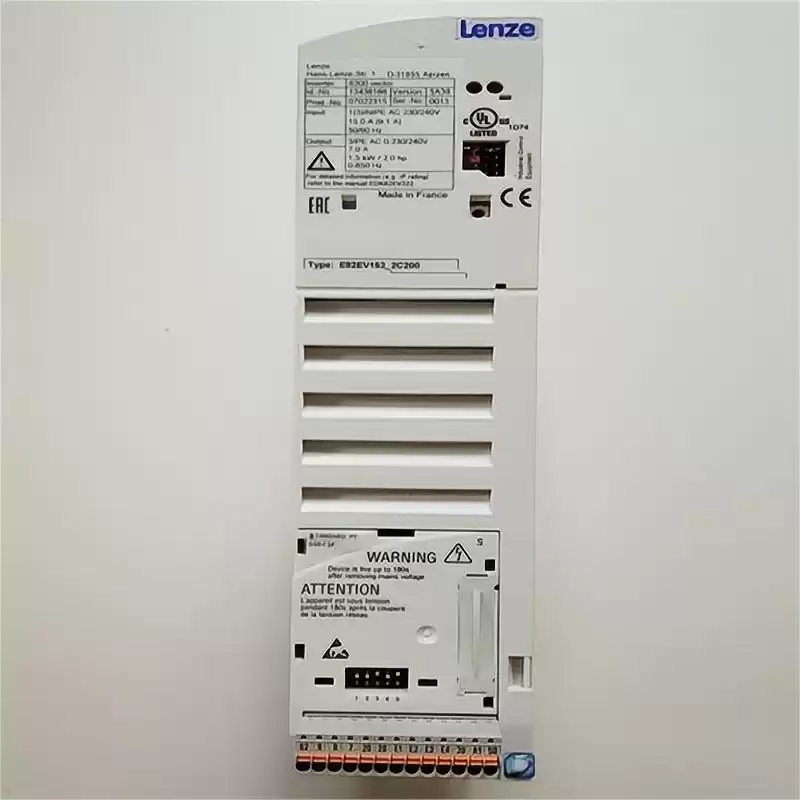

The Lenze 8200 AC Drive vector frequency inverter – for standard applications

The concept of the Lenze 8200 AC Drive frequency inverter is based on a modular system of components adjusted to each other. If combined with a Lenze geared motor or a Lenze three-phase AC motor, you can produce electronic variable speed drives for a wide range of applications in the 0.25 to 90 kW power range

Keypad (Optional)

Lenze 8200 Keypad

Advanced Keypad XT for the Lenze 8200 AC Drive

The keypad for the Lenze 8200 AC Drive provides a visual for the operating parameters and set parameters for the inverter. The keypad is plugged onto the front of the inverter and is also used for the status display, error diagnosis and, with integrated memory, to transfer parameters to other inverters.

Ref EMZ9371BC

Lenze 8200 AC Drive Advanced Keypad XT Features:-

Password protection

Plain text display

Predefined basic configurations

User-specific menus

Suitable for the 8200 vector and 9300 inverters series

IP20 degree of protection

Features of Lenze 8200 AC Drive frequency inverter:-

The option of 'bookcase' mounting

Permits a space-saving installation in the control cabinet. Installation costs are reduced using integrated filters (optional).

Lenze 8200 AC Drive frequency inverter is preset for standard use.

Amongst other things, parameters are set for:

Controlled acceleration and deceleration using set acceleration and deceleration times.

Assignment of inputs and outputs with standard functions.

This series of Lenze 8200 AC Drive frequency inverter are characterised by simple operability and handling while also offering high levels of functionality. A clear menu structure and user-guided commissioning thanks to the Global Drive Control easy (GDC easy) parameterisation software makes rapid frequency converter parameter setting and diagnostics possible. GDC easy is free of charge and can be downloaded fromwww.Lenze.de.

The XT keypad is also available for operation. Users can quickly access all inverter parameters in the clear menu structure using the 8 keys and a text display. The XT keypad is also used for status display, error diagnosis and, thanks to its integrated memory, for transferring settings to other inverters.

The right setpoint source for every requirement

Via setpoint potentiometer to the control terminals.

Via master voltage or master current to the control terminals.

Via digital frequency input.

Via an operator module.

Via a bus module from a host system.

Communication-capable

In communication with a host system, inverters can be incorporated using plug-on bus modules. Virtually all common certified bus systems are available (CAN, CANopen, PROFIBUS, INTERBUS, DeviceNet, AS interface and ETHERNET Powerlink).

Reliable

Adjustable slip compensation balances load-related speed variations without costly speed feedback. The maximum current limiting function ensures stable operation under static and dynamic loads. A PTC resistor can be connected to protect the motor.

Used around the world

Thanks to the huge mains voltage the Lenze 8200 AC Drive frequency inverter range of up to 500 V (+10%), you don't need to worry about where in the world your machine is supplied. And the 8200 vector series is of course certified in line with international standards.
