Enduro full suspension electric bike frame fit for Bafang motor M500/M510/M600

ADVANTAGE:

1. Material: Toray Carbon Fiber (from Japan).

2. EPS + Latex molding process, inner smooth, better strength.

3. Strict develop test and mass production test, see below test equipment (exceed 30% of the ISO4210)

Description:

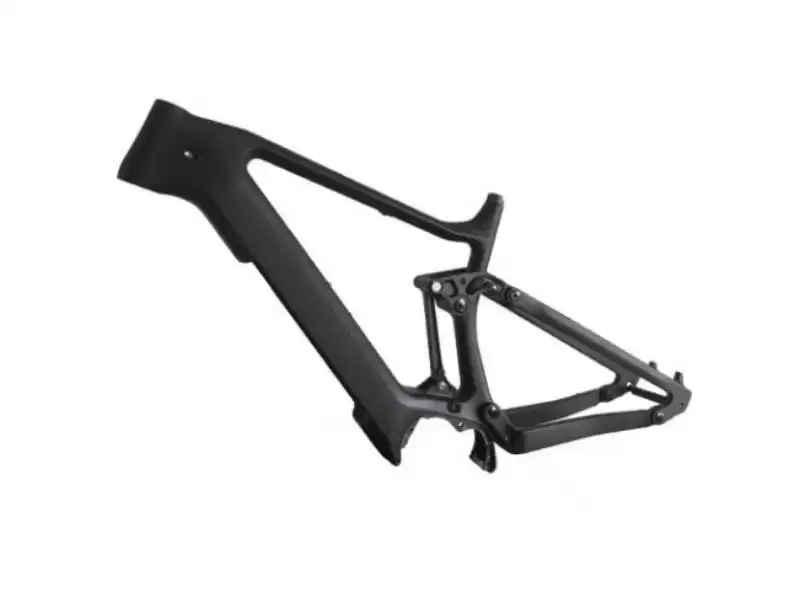

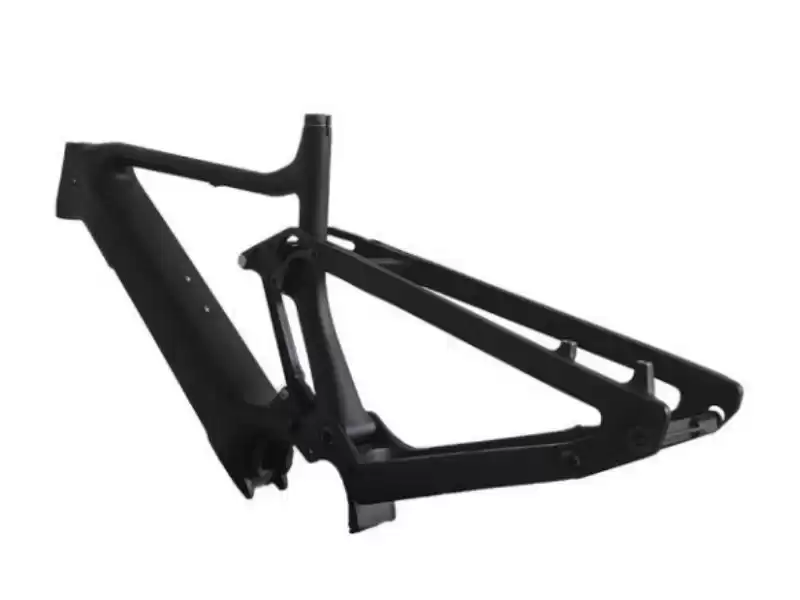

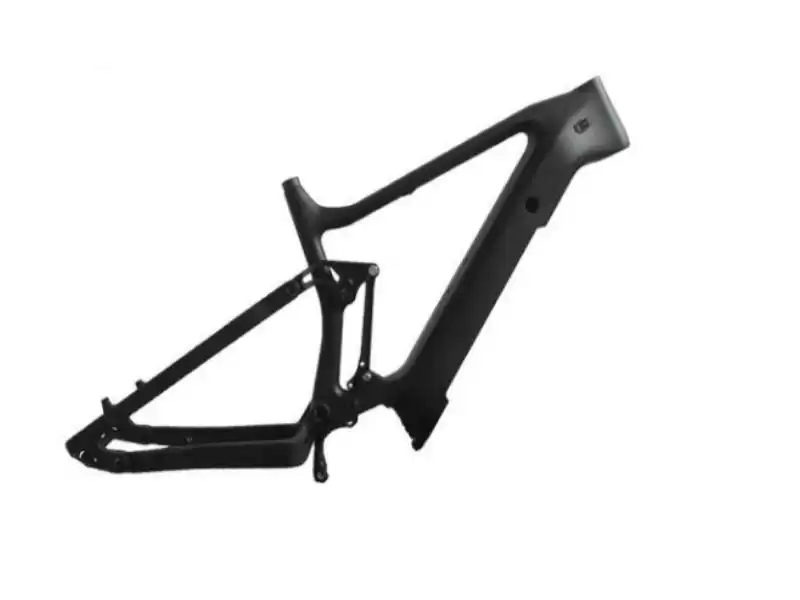

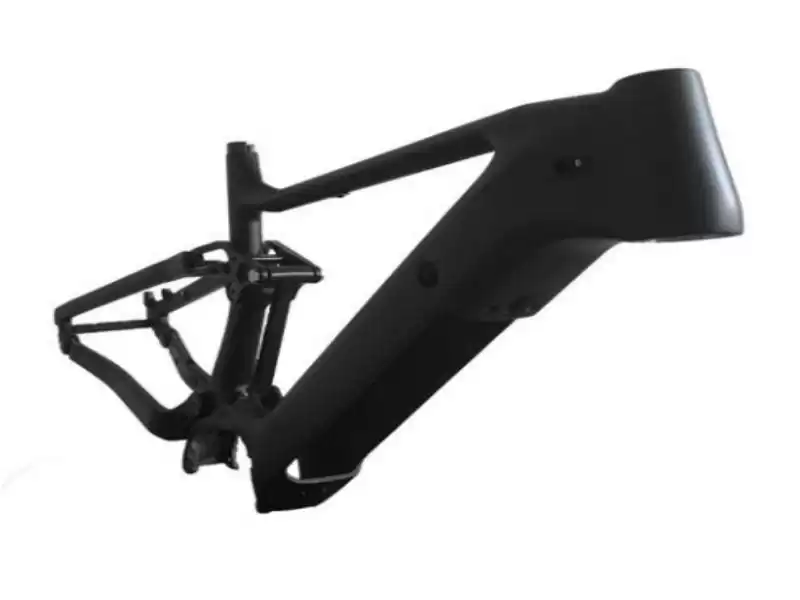

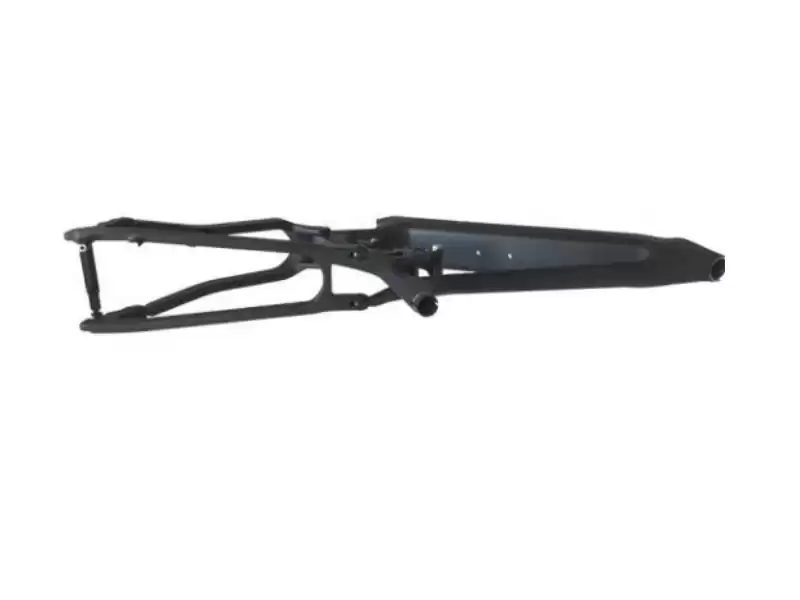

Frame New LightCarbon Enduro Full Suspension Ebike frameset designing for Bafang motor

Material High modulus Toray T700  carbon fiber

Size

Medium/Large

Headtube Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Headset standard FSA No.57E)

Weight 3300±45g/Medium

Seatpost Diameter 31.6mm(34.9mm seat clamp)

Motor System Bafang M500(95NM) or M600(120NM) mid drive engine - (Excluded motor cover)

Battery Bafang BTF03(450Wh) or BTF04(600Wh) - (Excluded battery cover)

Max Tire Clearance         650b*2.8" and 29er*2.4"

Front travel 150mm

Rear travel 150mm

Rear shock size 185*55mm(trunnion mount)

Brake Type Post Mount Disc brake 180mm disc rotor

Dropout Thru Axle 12*148mm boost

Max Chainring 34T

Test Standard ISO4210

Warranty 2 years

Remark:

QTOUR Enduro Full Suspension Electric bike Frame With Bafang Engine, with BAFANG motor, you could hides all cables between the rear triangle and the main frame, as well as the cables of electric shock and dropper seatpost.

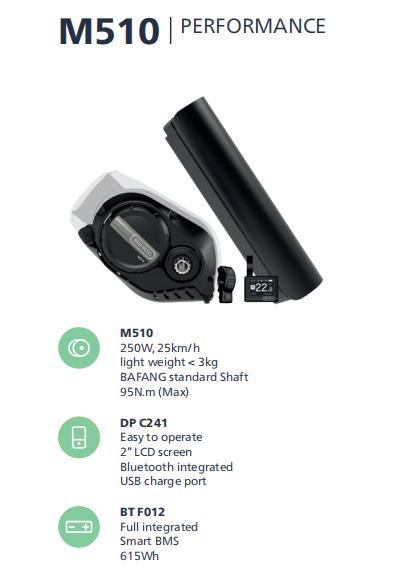

Update!! - Also Compatible with New Bafang M510 Motor Kits

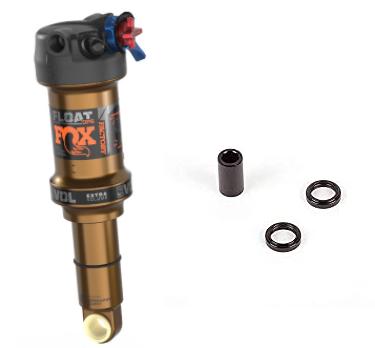

Rear shock size 185*55 trunnion mount and bushing kits for low end 22*10mm

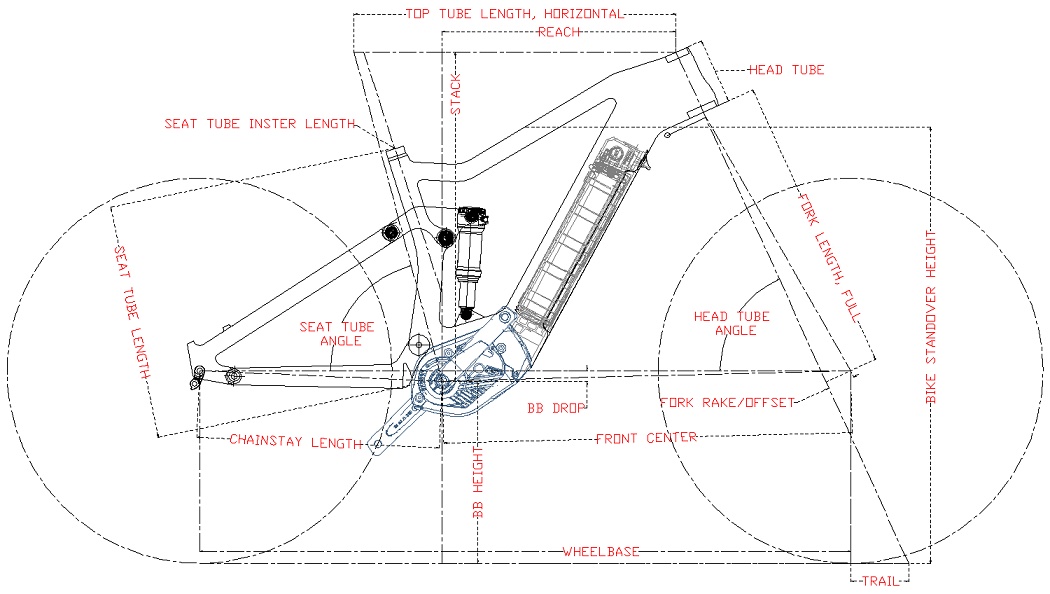

E bike frame geometry and size chart

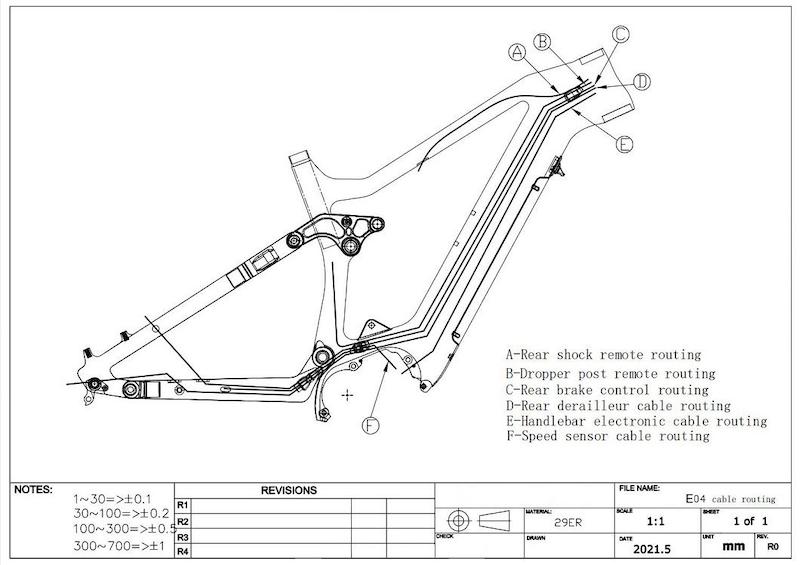

Frame Cable Routing Instruction

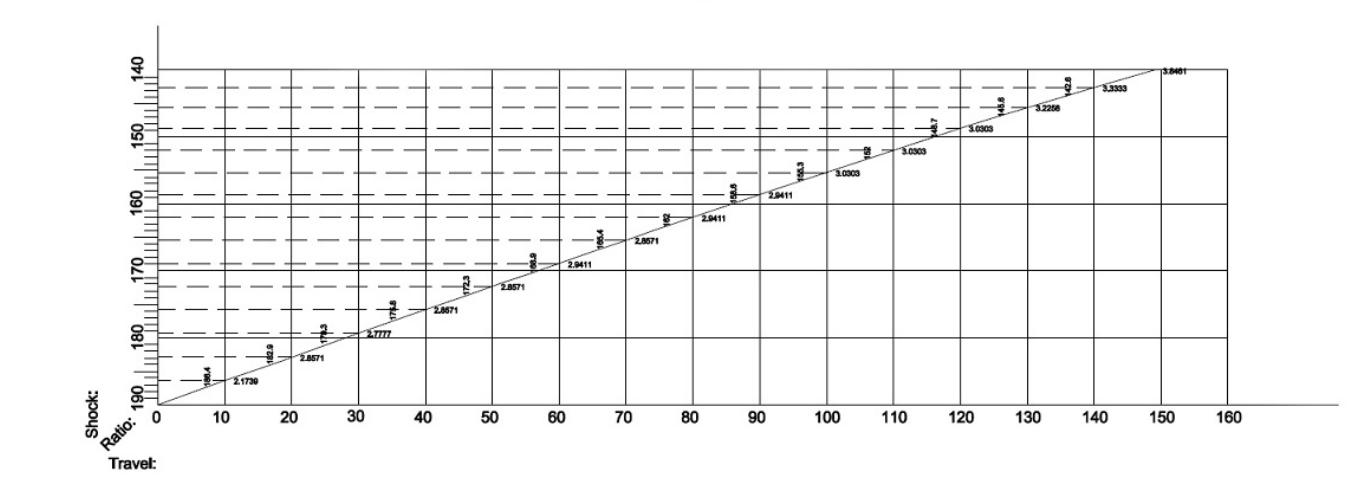

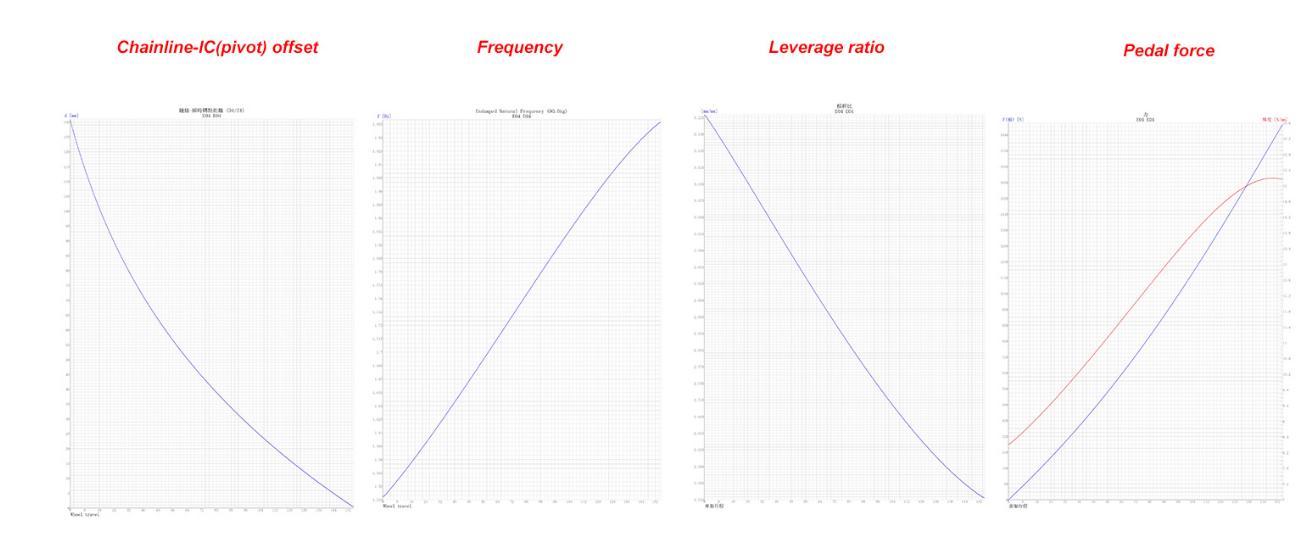

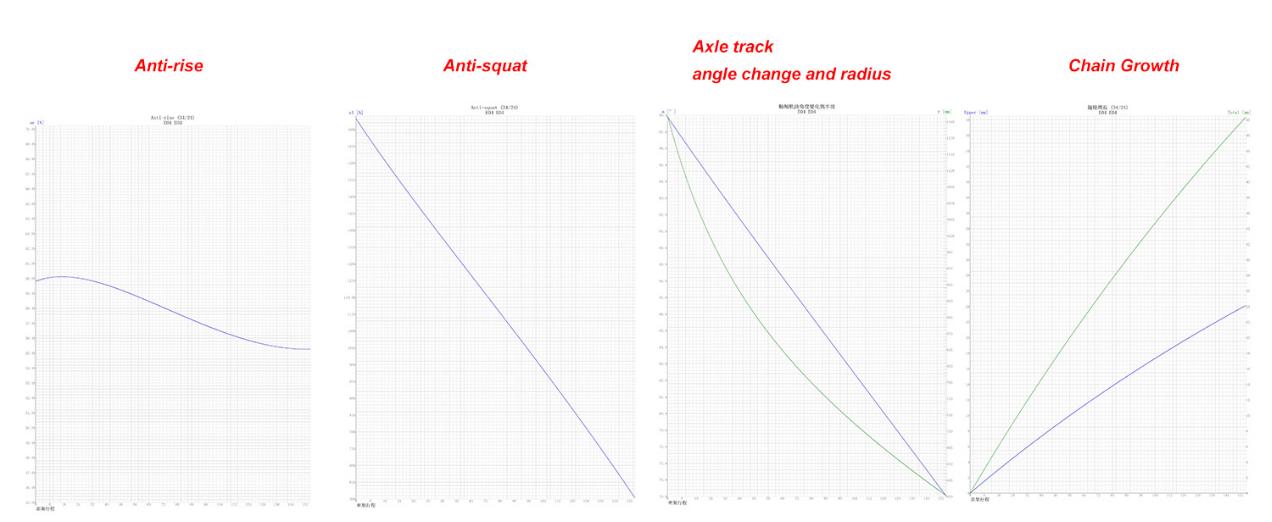

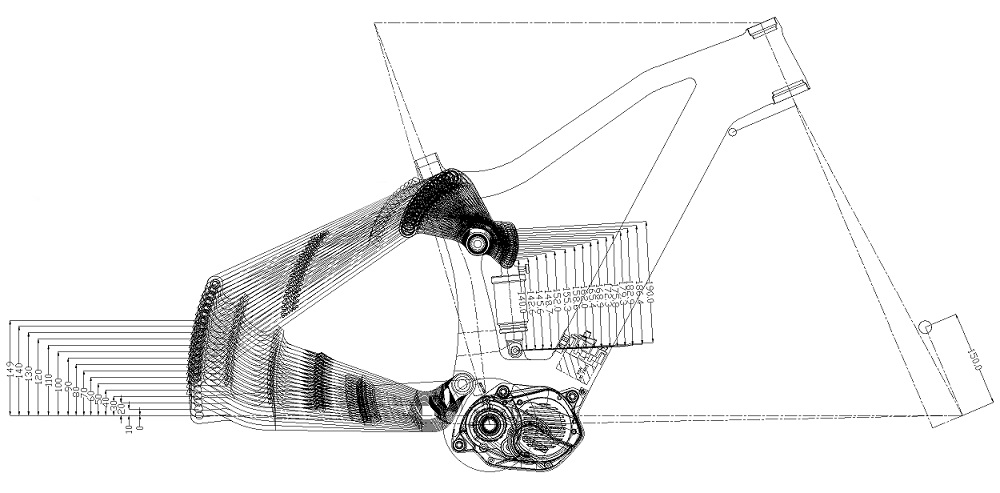

Enduro frame suspension simulate from 0~150mm travel

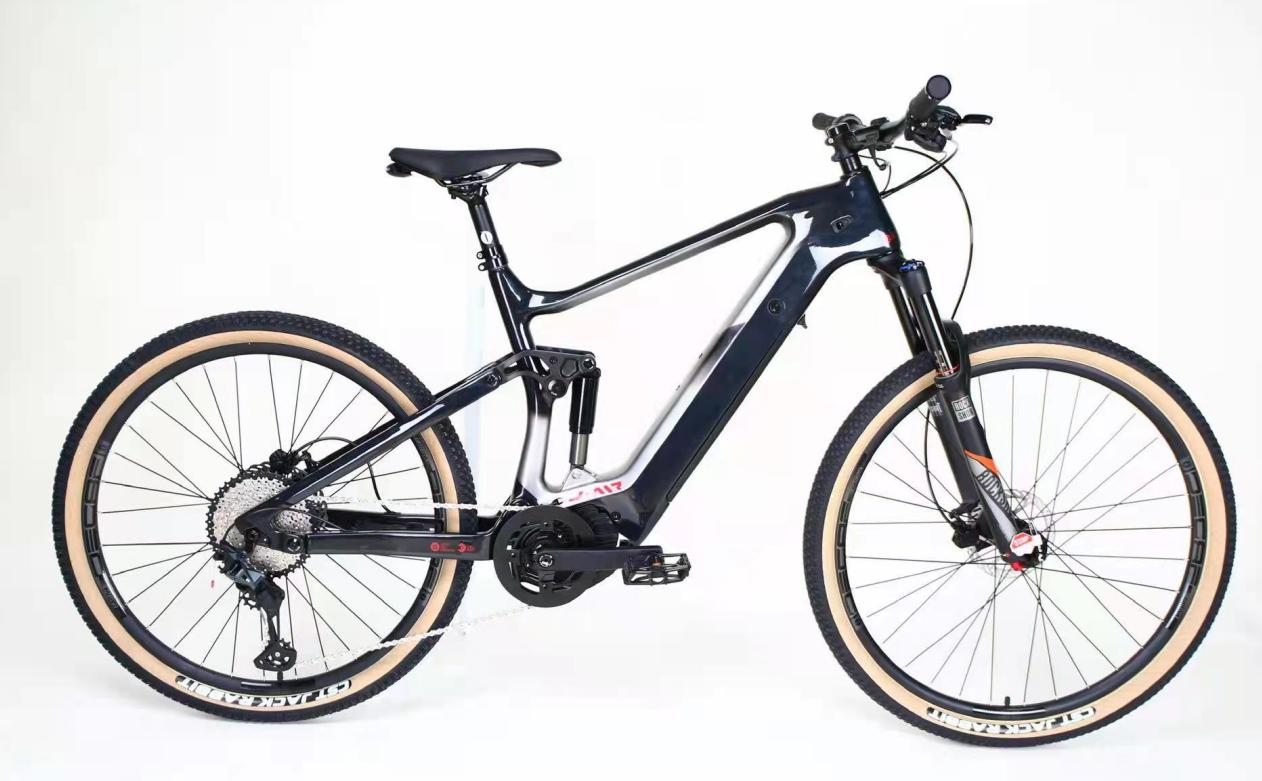

Build complete bike - Enduro bike frame
