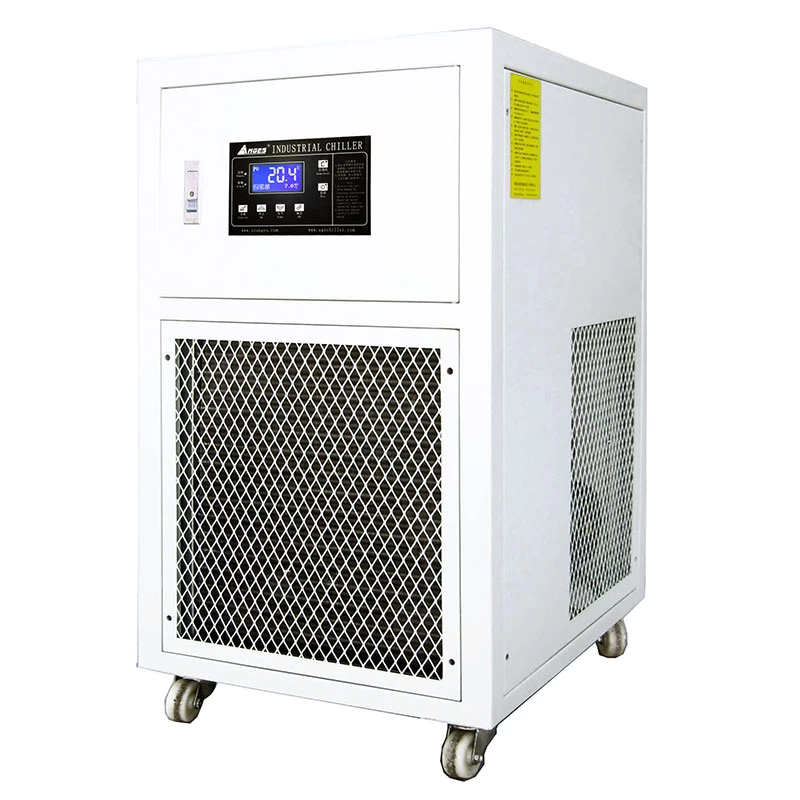

Energy Conservation And Efficient Laser Machine Chiller AL-10W

Laser industry, arised in the late 20th century, is the most popular processing means. The quality of the cooling system plays a key part in the laser machine operation.ANGES Laser chiller, is a special unit, which is designed according to the features and demands of laser market equipments.





Energy Conservation And Efficient Laser Machine Chiller AL-10W


Specification

Model Item

AL-10W

nominal cooling capacity

kcal/h

25886

kw

30.1

input power

kw

10.52

power supply

3PH  380V  50HZ

refrigerant

type

R22/R134A/R407C/R410A

control method

 expansion valve

compressor

type

 hermetic scroll type

power(kw)

8.1

condenser

type

finned copper tube +low noise outer rotor fan

power(kw)

0.92

cooling air flow(m3/h)

10000

evaporator

type

water tank with S.S coil

chilled water flow(m3/h)

5.19

tank volume(l)

200

inlet and outlet pipe caliber(inth)

1-1/2

water pump

power(kw)

1.5

lift(m)

25

safety protection

compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection

weight

kg

650

dimension

mm

1680*780*1630

Note: 1.Nominal cooling capacity calculated according to:

   Inlet/outlet cooling fluid temperature:17/12

   Inlet/outlet cooling air temperature:30℃/35

     2. Working condition:

  The temperature range of chilled fluid is from 5to 35;

  Temperature difference between inlet and outlet chilled fluid is from 3to 8.

We reserve the right to modify the above dimensions or parameters without further notice.
