Energy Storage Bidirectional Converter(GL Series)

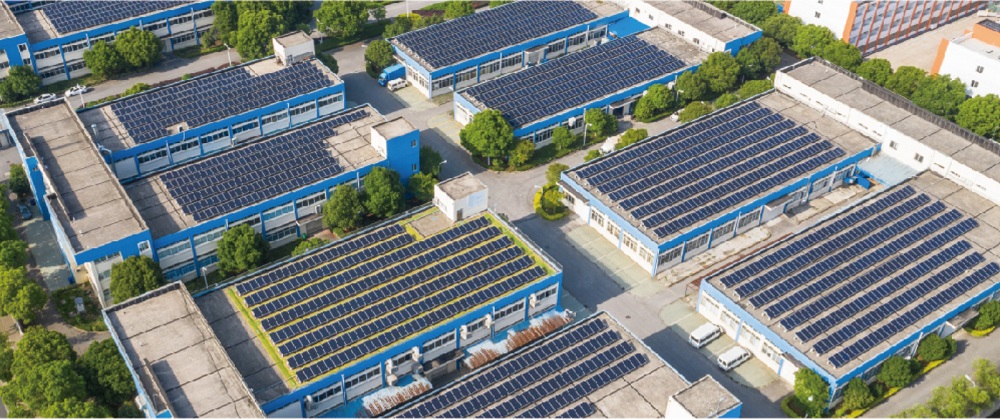

Commercial PV provides the lowest cost per kW of all solar applications due to benefits of scale, energy yields are also higher and carbon reduction is at highest levels due to better positioning and tracking capabilities.

YT Electric(CSG,Stock No.300222) have supplied high-efficiency inverters and solutions for residential photovoltaic systems since 2005. The durable and high-performance power electronics in YT Electric residential inverters guarantee environmentally-friendly power generation for decades.

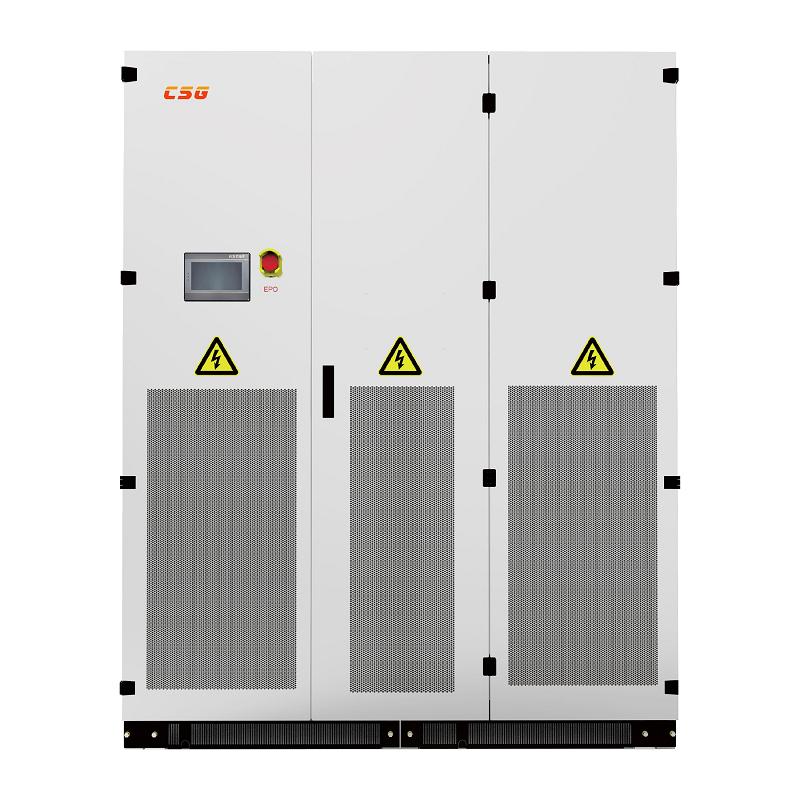

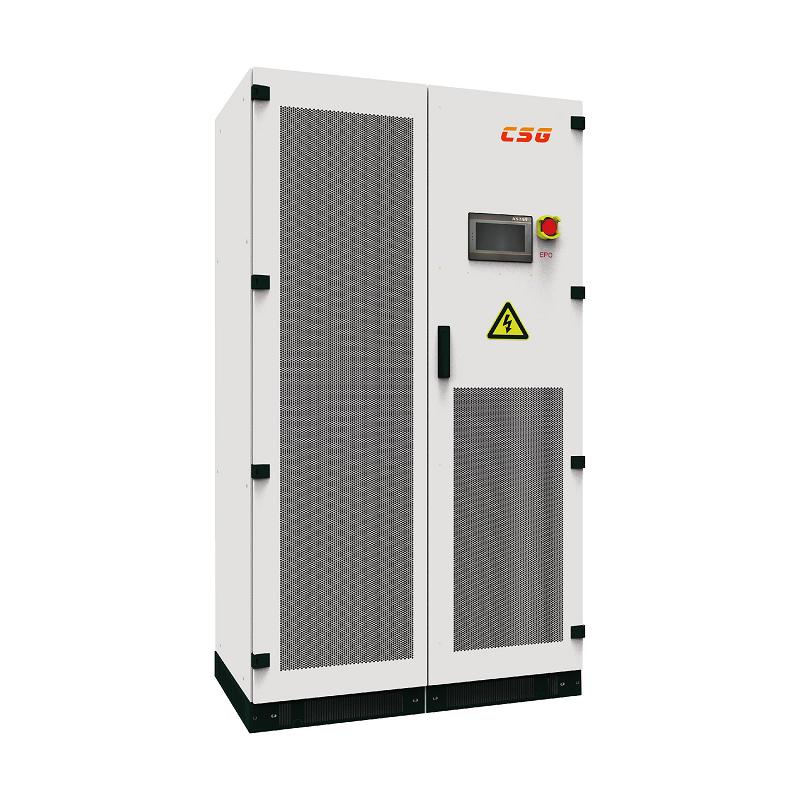

Commercial Energy Storage Bidirectional Converter(GL Series)

The CSG-GL-50/100/150/250/500 series PV converter, high efficiency solar converters for commecial and industrial applications - the perfect choice energy storage in commecial PV plants.

The CSG-GL-50/100/150/250/500 Series solar converter features 50kW/100kW/150kW/250kW/500kW power output. This new three phase solar converter is designed for residential PV applications where maximum versatility and profitability are important. Thanks to the high maximum efficiency up to 99%, optimum yield from the PV plant is ensured from the device.

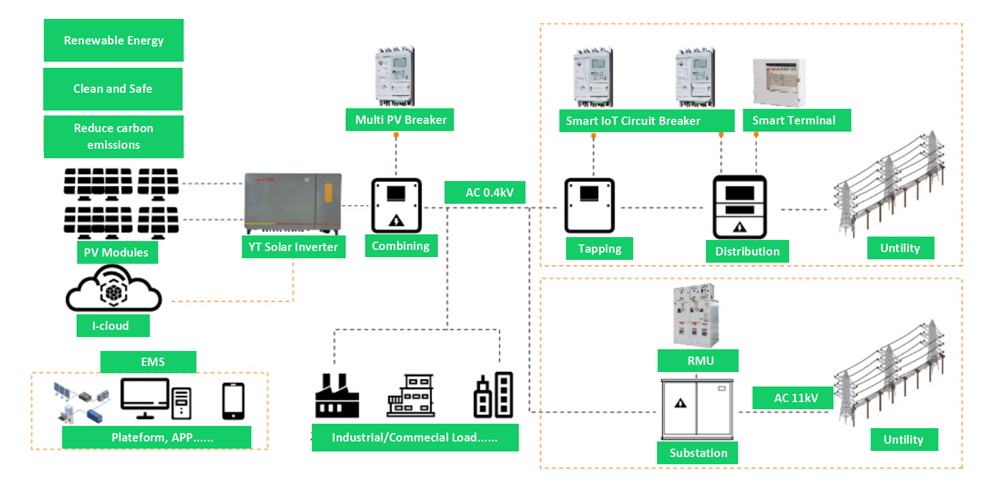

Solar(PV) Plant Working

Sunlight hitting solar modules on the roof is converted into direct current electricity (DC).  Each solar module is made up of many solar cells. The cells absorb incoming energy in the form of sunlight and due to the nature of the silicon photovoltaic material, electrons begin to flow generating an electrical current. Wiring captures the electrical current and combines it with power from other solar cells. The DC electricity produced by all the solar modules on the roof is carried by wiring to a solar inverter.

The solar converter converts the DC electricity to alternating current electricity (AC) used by most appliances and electronic devices in the home. The AC power from the inverter is sent to an electrical panel where it is distributed throughout the home.A PV monitoring system, such as YT(CSG) cloud allows the homeowner to view their energy production on a Smart Monitor display  or via a smartphone.  Excess energy produced by the solar array that is not used is fed to the electrical grid.

If the PV converter is a hybrid variety such as the CSG-GL-50/100/150/250/500 convertrer: it can send solar electricity to a energy storage device such as the  Battery: to allow the homeowner to make use of the energy after the sun goes down.

With a PV system combined with energy storage the homeowner can realize the greatest independence from the local power company by producing their own electricity and using the battery power to run the household loads when they need it.  Producing your own energy with a solar PV system is good for the environment because it is pollution and carbon-free and has little impact on the environment.  With rising electricity prices in many countries, the use of PV and energy storage helps the homeowner to fix their energy costs and once the system is paid off, enjoy the benefits of free electricity from their PV system.



Substantial Advantages from Solar(PV) System

  1. It's good for the environment.
    A clean, renewable energy source without harmful emissions that is plentiful and free: the sun.
  2. Independence from increasing utility costs.
    The electricity produced from your PV system has a fixed monthly cost and once paid off the electricity produced is free for the homeowner for the life of the system.
  3. It can increase your home value
    Home buyers now are seeking properties with PV systems for the added value.
  4. Solar energy systems are durable.
    The PV panels are made to be as strong or stronger than the roof  without moving parts, they are tested to withstand extreme conditions such as hail and snow. The YT(CSG) PV inverters are designed for durable use with IP66 protection rating and cast aluminum chassis.
  5. Solar electricity can be used day and night with an energy storage system.
    With the purchase of a battery energy storage system, the homeowner can store solar electricity during the day and use it at night for optimum home energy use without the worry of ever increasing utility bills.
  6. Solar is the future.
    Fossil-fuel companies and dirty energy generators make up less and less of the power grid in many countries as clean renewable energy like solar PV are gaining more ground in an effort to improve air quality and reduce carbon-dioxide emissions.
