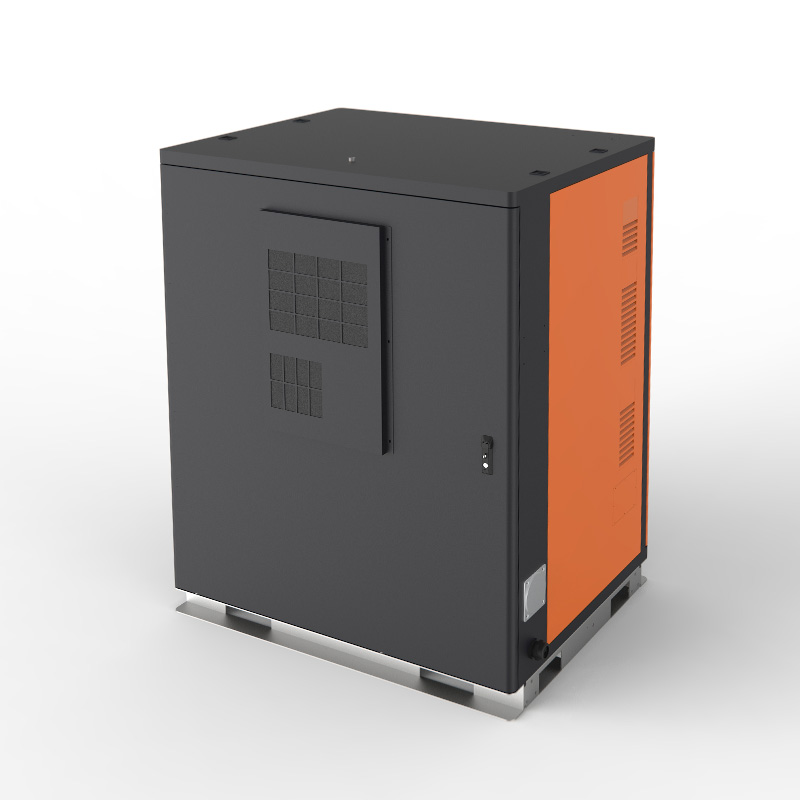

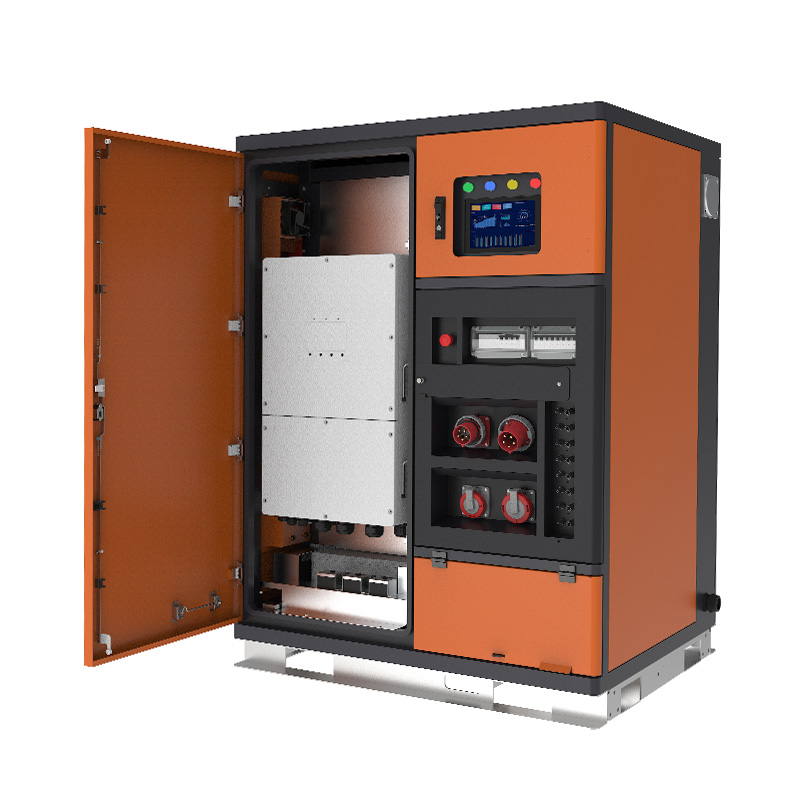

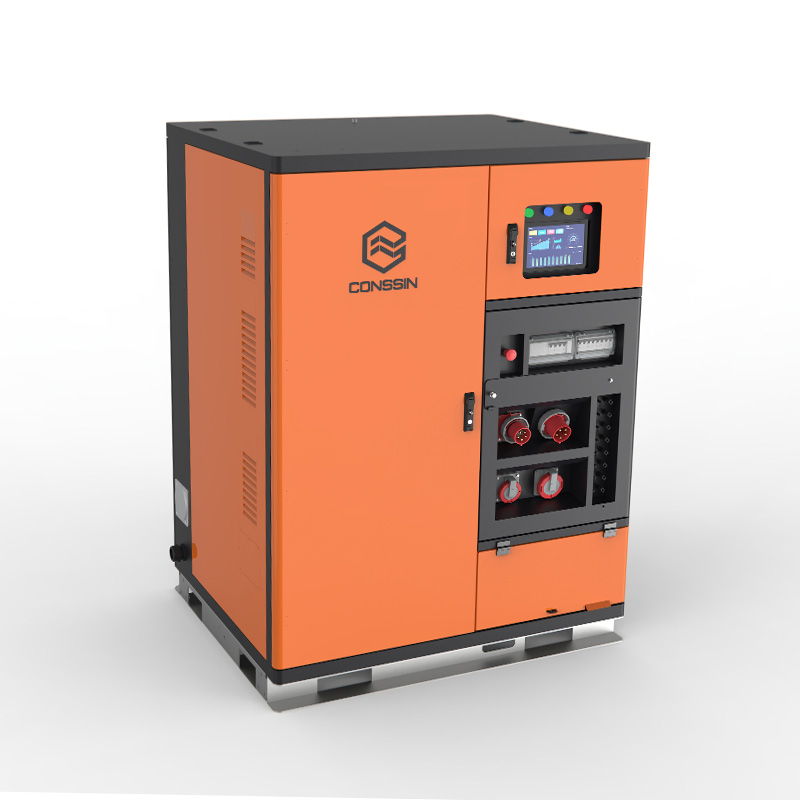

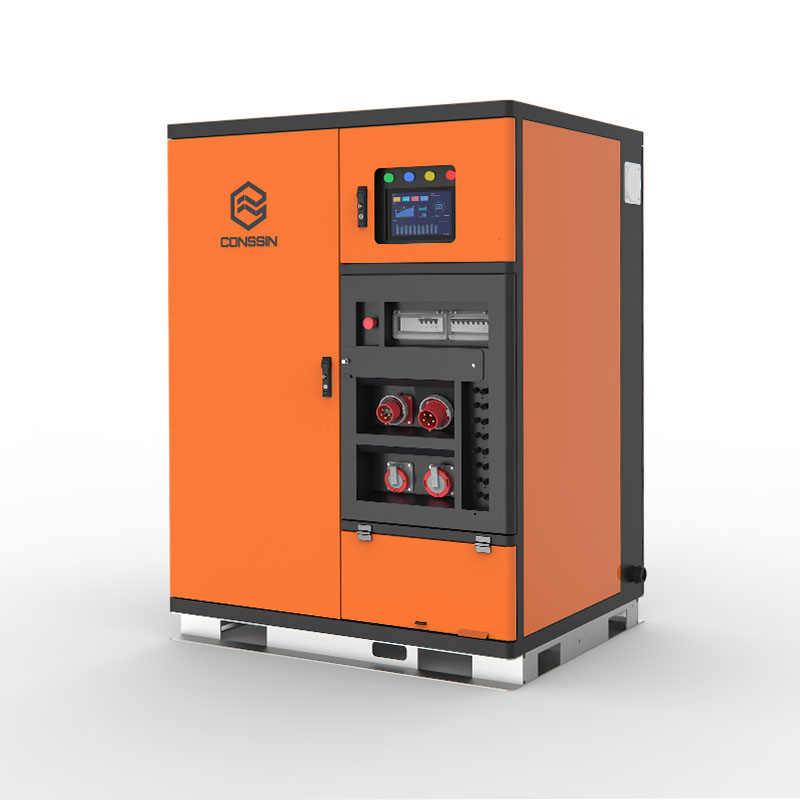

Energy Storage System 83,200Wh CPS-80

CPS-80 energy storage system is Conssin's latest solution to the commercial market. It's self-sustainable in areas where the grid power is completely inaccessible, provided with solar input and generators.

In terms of output, it can withstand a temporary 160% of its rated current, allowing it to jump-start some of the heavy industrial equipments.

In medical or data storage field, where the safety and reliability is the top priority, CPS-80's fire supression system and UPS will keep the valuable asset intact in the event of grid failure.

Rated capacity: 583,200Wh

Power: 50,000W

Nominal Voltage: 665.6V DC

Working Temperature: -30℃ ~ 45℃

Communication: RS485, CAN

Battery Module Quantity Serise: 13pcs

Ingress Rating: IP54

Cycle life: >6000 @25℃, 0.5C/0.5C, EOL70%







Application scenarios

•

  Daily power supply
•

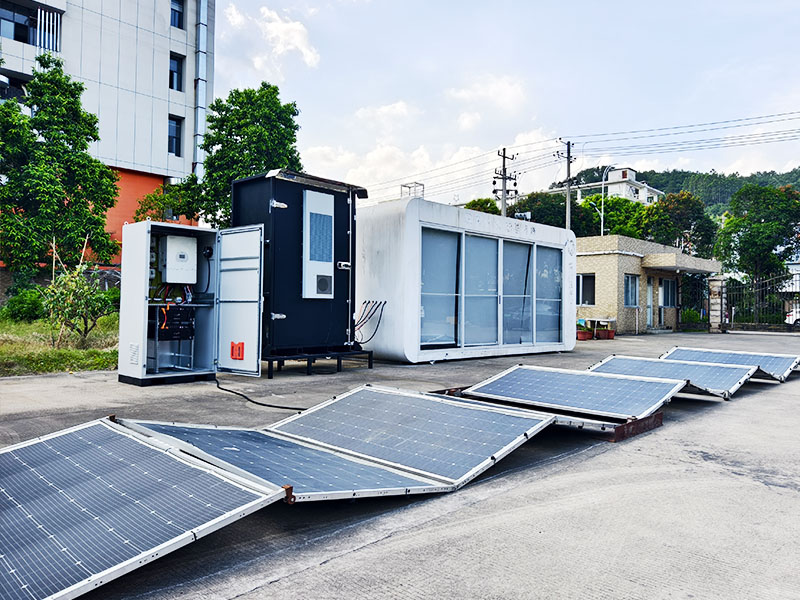

  Solar power storage system
•

  Construction power supply
•

  Power supply post-disaster



Spec sheet

Model	CPS-80
Rated Energy	83,200 Wh
Nominal Voltage	665.6V DC
Nominal capacity	125Ah
Rated output power	Max 50,000W
Depth of discharge	95%
Working Temperature	-30℃ ~ 45℃ Discharge
Battery type	Lithium iron phosphate ion(LFP)
Communication	RS485, CAN

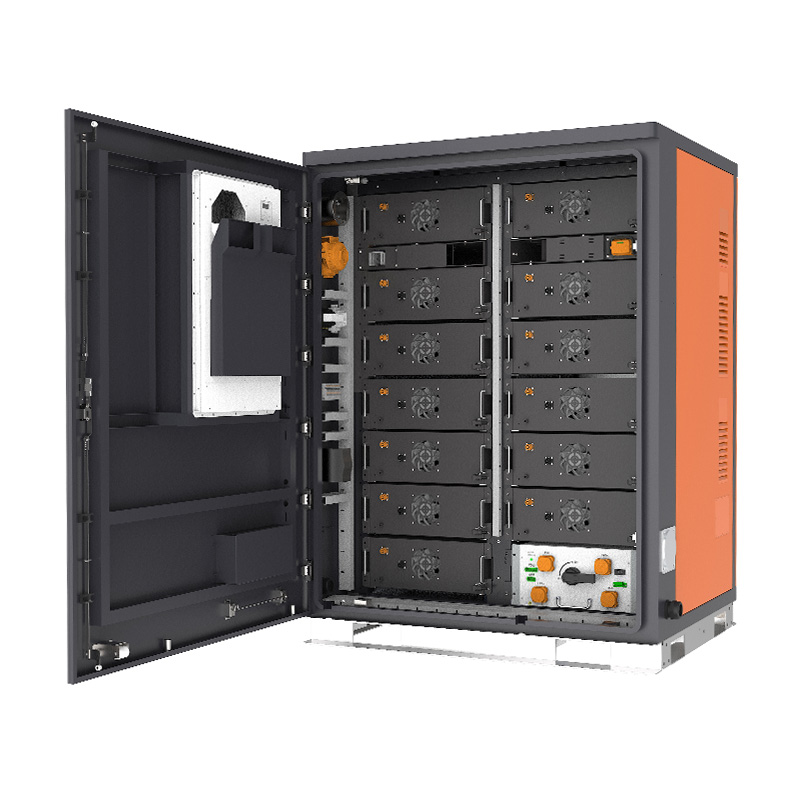

Battery Module Quantity Series	13pcs
Weight	≈1300kg
Dimension	L1140 x W1375 x H1850 mm
Cell type	LFP
Cooling type	Active air cooling
Altutide	≤3000m
Ingress Rating	IP54
Humidity	5% ~ 85%(RH) No condensation
Cycle life	>6000 @25℃, 0.5C/0.5C, EOL70%
