Energy Storage System Container For Commercial
Product Introduction：

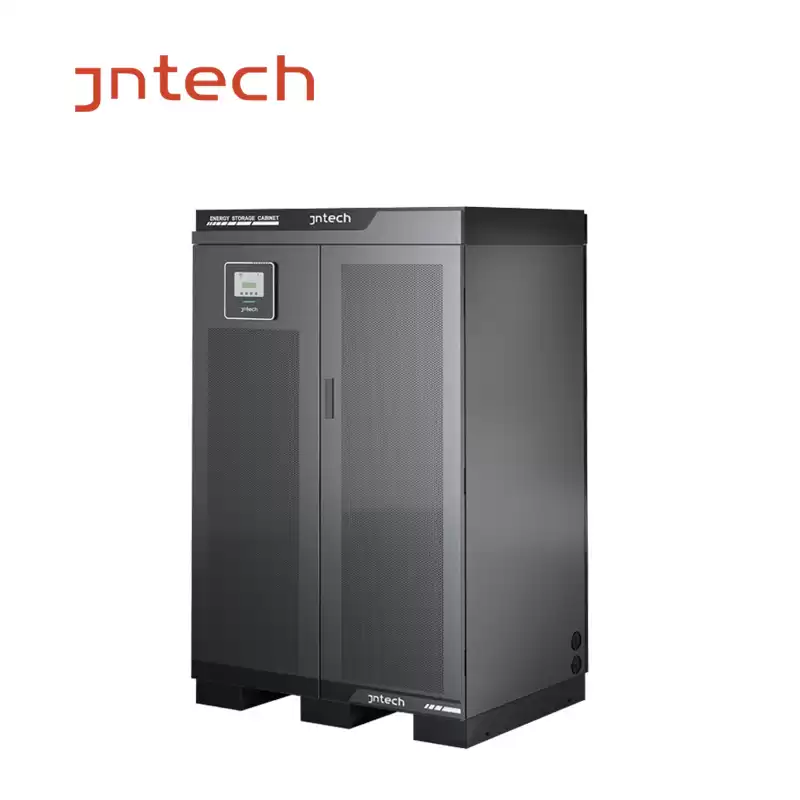

●The lithium battery cabinet Comprehensive electrical protection functions, including fault alarm, fault protection, and safety protection.
●Emergency braking and stop functions, and a system step-by-step disconnection function during maintenance.
●High-altitude design with a special DC switch that accounts for switch interruption and withstand voltage at high altitudes.
●Long service life with a lifespan of over 10 years and cycle times exceeding 6000 times at 25°C.
●Low voltage design that is safe and reliable, with a rack-mounted design to meet industrial and commercial requirements.
●Consists of multiple battery modules and a high voltage box. The battery module is an battery storage cabinet that integrates
lithium iron phosphate battery cells, BMS, and temperature detection.
| Battery Cabinet Parameters |
|
| Model |
JNBC256100-V1 |
JNBC614100-V1 |
| Rated capacity |
100Ah |
100Ah |
| Rated voltage |
256V |
614.4V |
| Rated energy |
25.6kWh |
61.4kWh |
| Battery type |
LiFePO4 |
| Max. continuous charge current |
100A (1C) |
| Max. continuous discharge current |
100A (1C) |
| Voltage range |
224-292VDC |
625--646VDC |
|
| Operating temperature |
Charge 0~45℃，Discharge -25~55℃ |
| Storage temperature |
-20~60℃ |
| Box size |
777*1428*560mm |
1056*1630*777mm |
| Weight |
350kg |
810kg |
| Cooling method |
Forced cooling |
| Protecition level |
IP21 |
| Functional protection |
Undervoltage, overvoltage, overcurrent, temperature, short circuit |
|
| Installation method |
Rack insert |
|
| Cycle life |
>4000 times(80%DOD)、>7000 times(70%DOD) |
| Interface |
RS485/CAN |
| Elevation |
≤3000m |
