Product Features
High performance composite wing design: integrating the advantages of rotor and fixed wing to meet complex operational requirements
Ultra long endurance and large payload: maximum payload of ten kilograms, providing strong support for mission execution
Strong wind resistance and high-altitude performance: rotor mode can withstand level 6 winds, fixed wing mode can withstand level 7 winds
Adaptability and convenient operation: Vertical takeoff and landing do not require a runway, and the operation is simple and easy to use
Product details

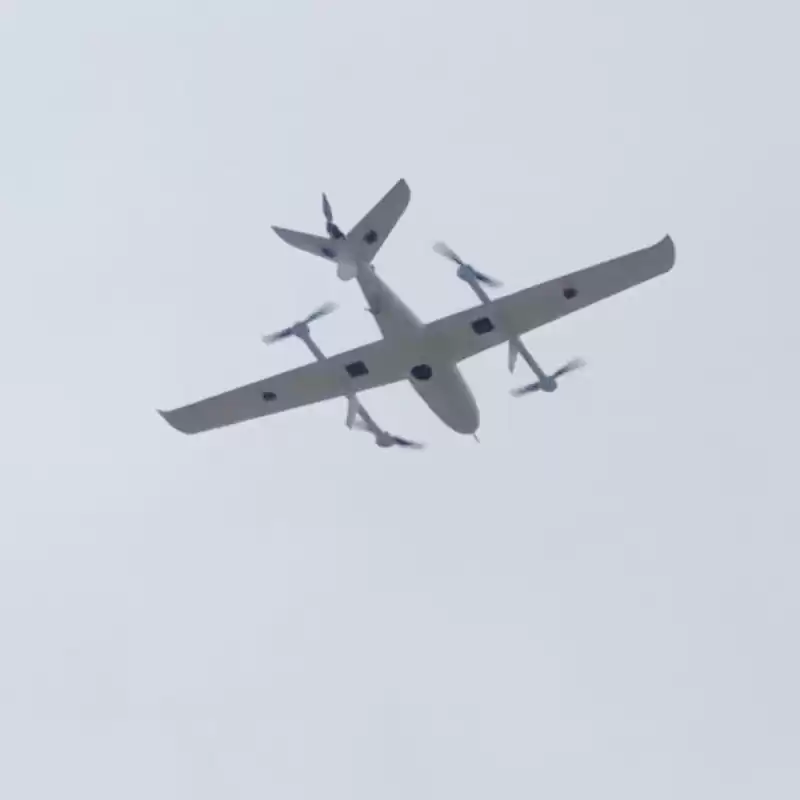

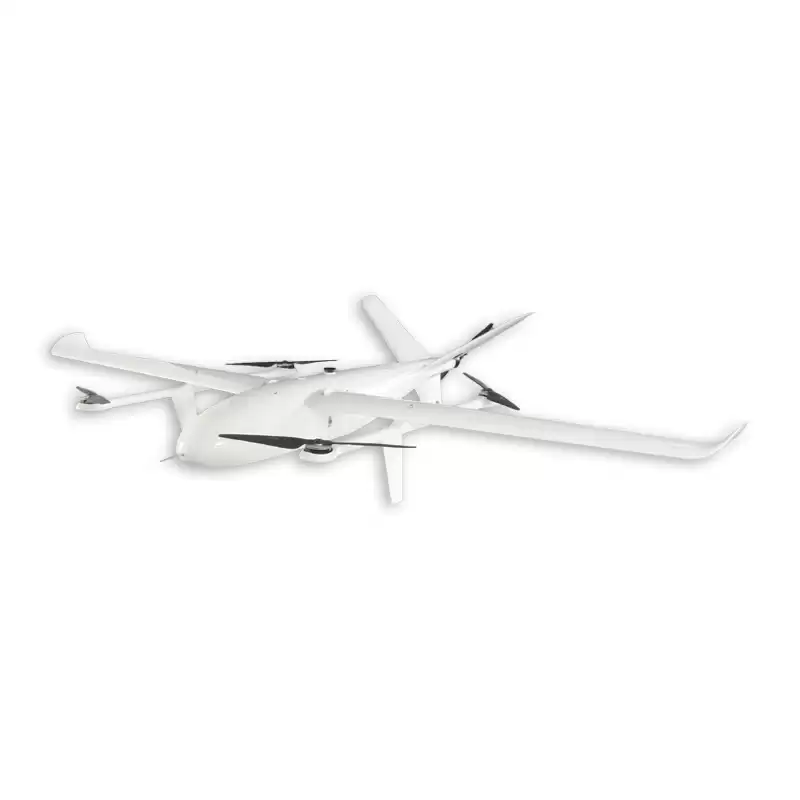

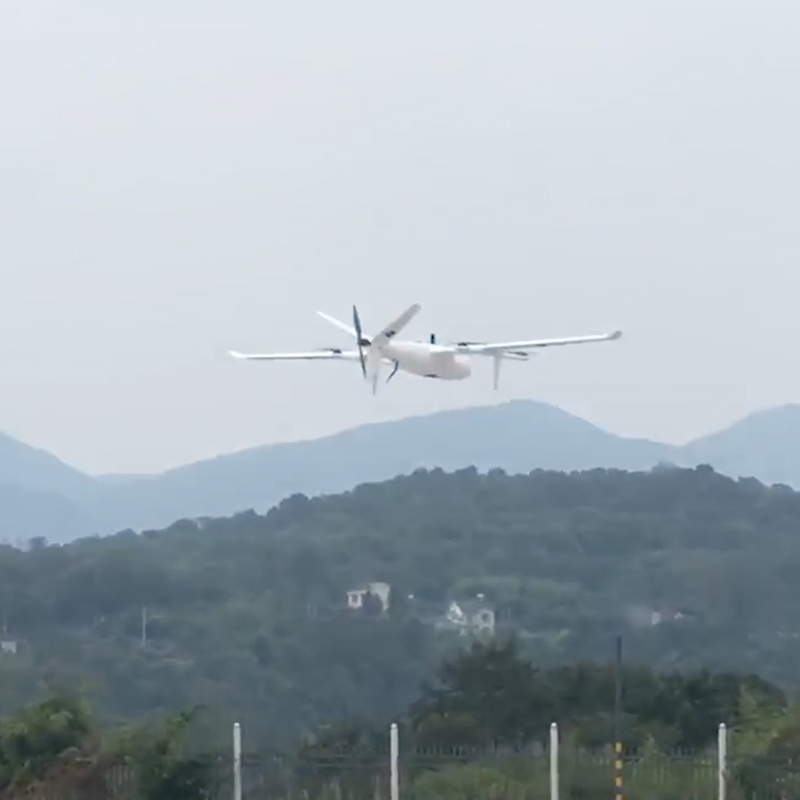

This drone adopts a composite wing design, cleverly integrating the advantages of rotor and fixed wing. It has both the vertical takeoff and landing capability of rotor and the high-speed cruise performance of fixed wing, and can operate flexibly in various complex environments. At the same time, it also has a strong load capacity, with a maximum load of up to ten kilograms. Whether carrying professional equipment or transporting materials, it can easily cope and meet the needs of different scenarios.
The wind resistance performance of this drone is excellent. In rotor mode, it can withstand level six winds. After switching to fixed wing mode, the wind resistance level has been raised to level seven, allowing it to fly stably even in harsh weather conditions. In addition, this fixed wing drone can fly at a maximum altitude of up to 4000 meters, making it easy to adapt to both high-altitude and mountainous areas, demonstrating its excellent environmental adaptability.

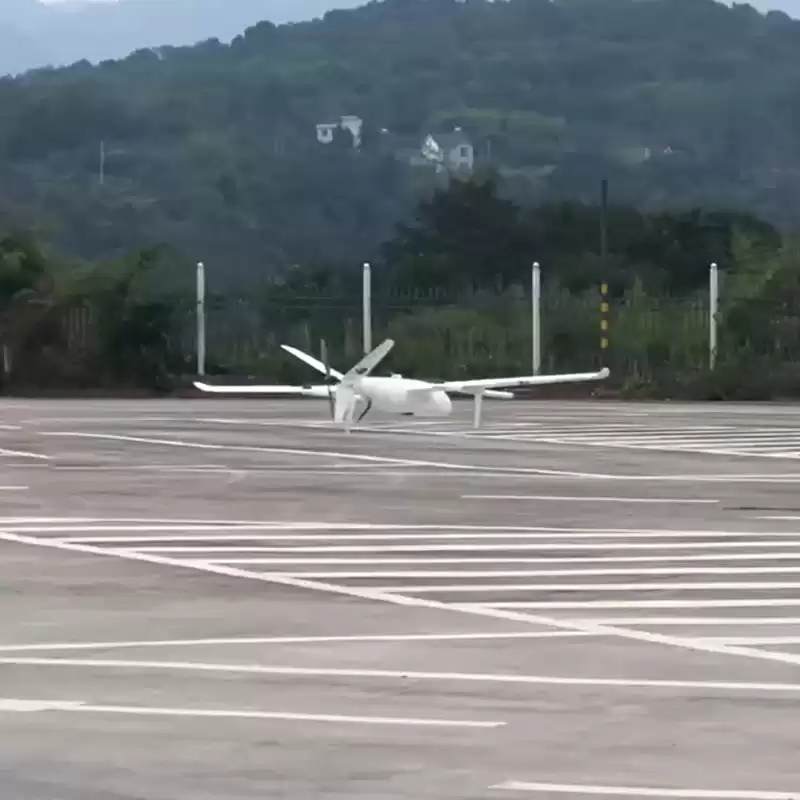

For ease of transportation and storage, this drone can also be equipped with a dedicated transport box. The size of the transport box has been carefully designed to ensure the safe storage of the drone and facilitate handling and transportation. At the same time, the drone adopts a vertical takeoff and landing method without the need for a runway, to greatly reduce the requirements for takeoff and landing sites, and making operation more convenient, also can be quickly deployed even in areas with limited space.
In terms of power system, this fixed wing drone is equipped with high-performance power batteries, providing sufficient energy support for the stable operation of the drone. Its remote control can manually control a distance of up to one kilometer, and when controlled through a ground station, the data transmission distance can reach up to thirty kilometers, achieving long-distance control and further expanding the application range of the drone.
Product parameters
|
FY-D10 parameters
|
|
Dimensions
|
3.5m*1.88m*0.64m
|
|
Takeoff weight
|
≤35kg
|
|
load
|
≤10kg
|
|
Empty flight time
|
190min
|
|
cruising speed
|
21m/s
|
|
Maximum altitude
|
4200m
|
|
Wind loading
|
Rotor mode level 6, fixed wing mode level 7
|
|
protection grade
|
IP54
|
|
Transport box size
|
2105mm*735mm*500mm
|
|
The above parameters are for reference only. Detailed product parameters are subject to actual delivery.
|
