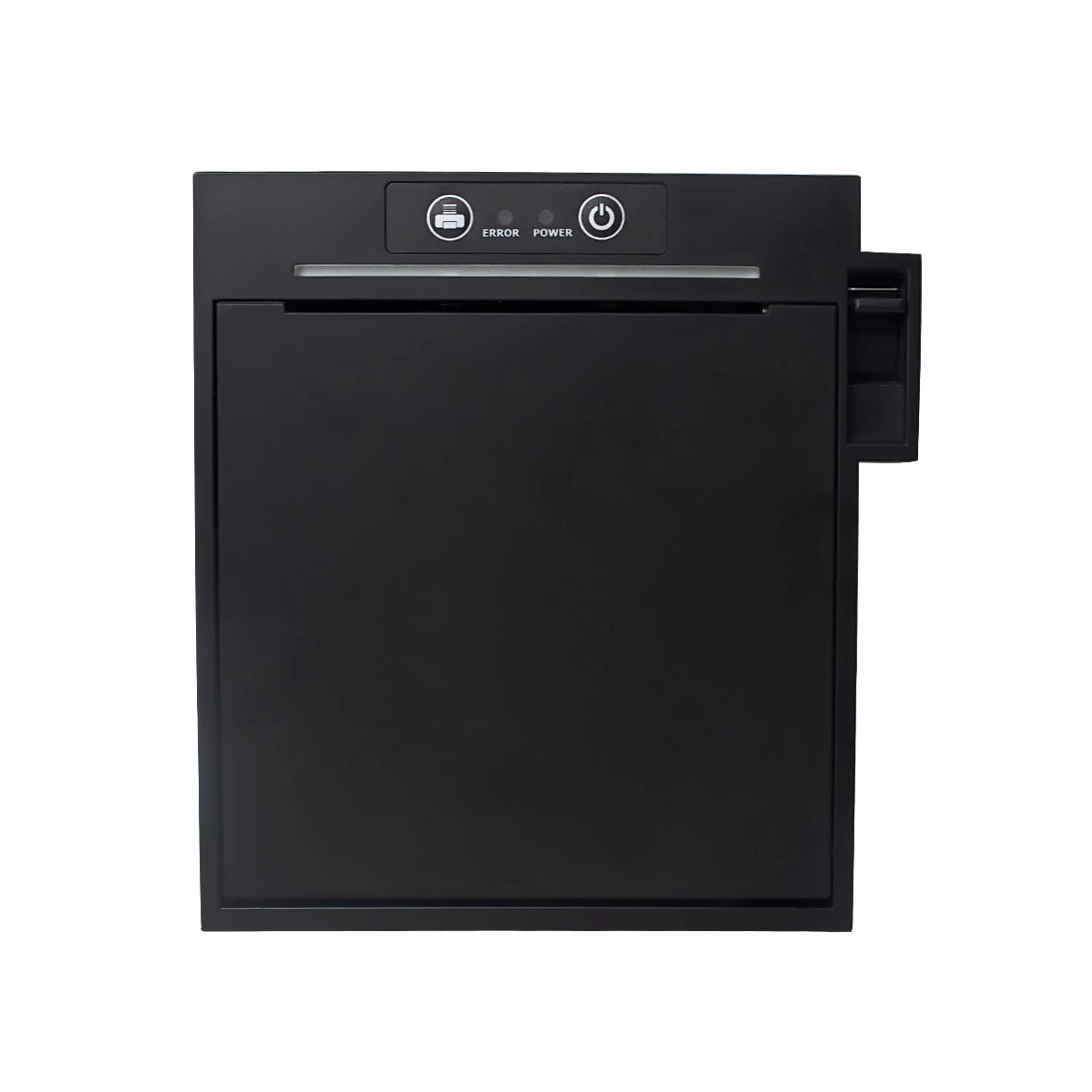

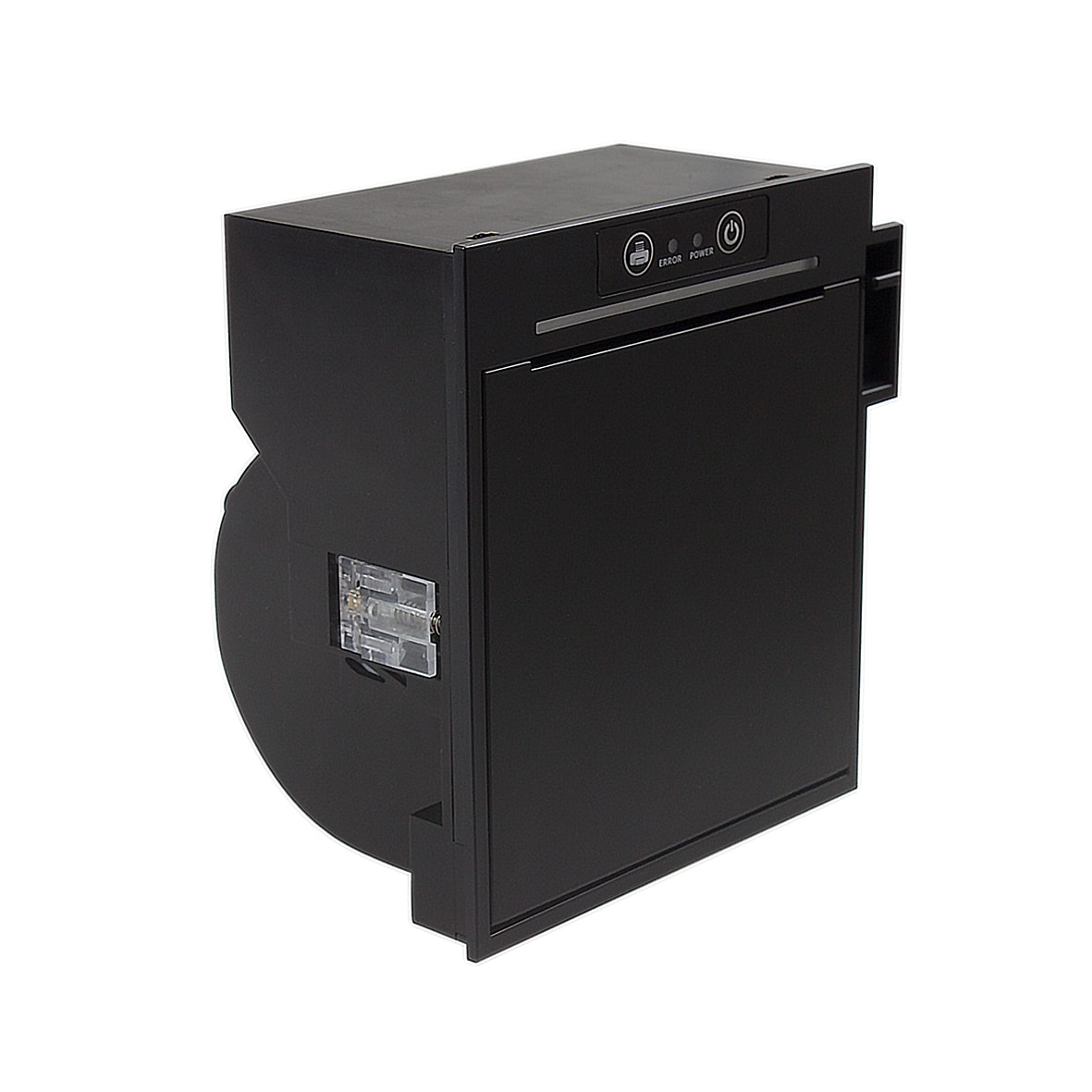

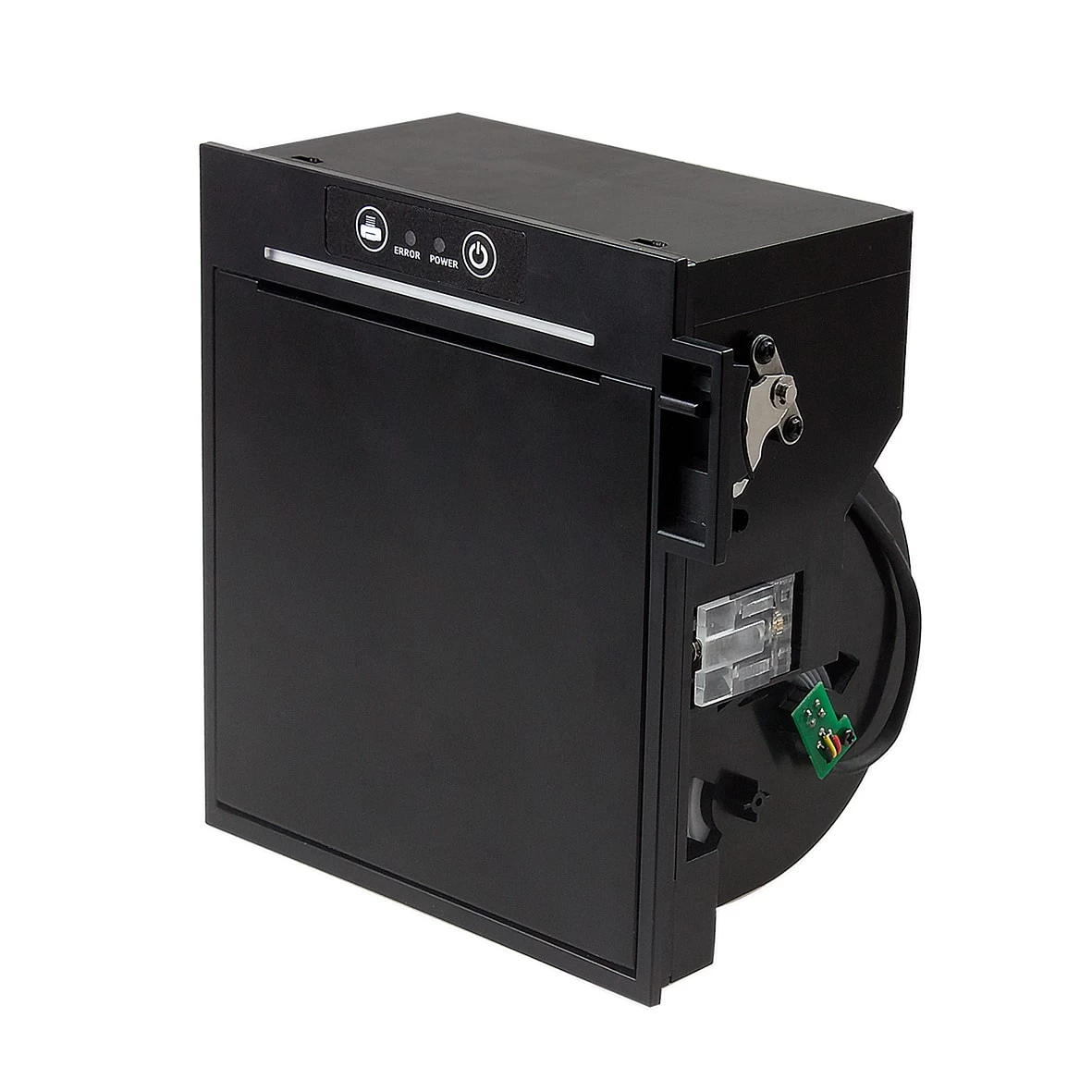

EP-381C 80mm width Thermal Panel Printer
EP-381C is 80mm withd mini panel thermal printer with auto cutter. To meet the customers' request and market trend. epsicially applied in Touch POS terminal and self-order food kiosk termrinal , this receipt printer is improved on our another 80mm receipt printer EP-360C. It can support large paper rolls diameter up to 80mm. EP-381C have serial +USB+cash drawer interfaces, support DC24V power and so on
Feature:
1). Easy-installing design
2). Smart appearance
3). Easy paper loading
4). Low noise thermal printing
5). Different interface optional
6). Printer's cover lock as optional
Specification:
| MODEL |
EP-381C |
| Print |
Thermal line printing |
Thermal Line Printing |
| Printing speed (max.) |
180mm/s |
| Resolution |
203dpi (8dots/mm) |
| Effective printing width |
72mm |
| Character |
Character Set |
ASCII,GBK,BIG5 |
| Print Font |
ANK:9×17,12×24,GBK:24×24 |
| Paper spec. |
Paper Type |
Thermal Paper |
| Paper Width |
79.5±0.5mm |
| Paper Thickness |
55-90μm |
| Paper Roll Diameter |
Max:80mm |
| Reliability |
TPH |
100km or more(12.5% print ratio) |
| Cutter |
1,000,000 cuts or more |
| Barcode |
1D |
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
| 2D |
PDF417 QR Code |
| Cutting Method |
Full and Partial cut |
| Text and graphic support |
Figure, sample, graph, curve icon, multi-languages |
| Command |
Compatible with ESC/POS command set |
| Detectors |
paper end, paper near end, paper out, paper taken out,cover open |
| Interface |
Serial+USB+Cash Drawer port |
| Power Supply(Adapter) |
DC24V,2A(average), 8A(peak); DC12V-24V as optional |
| Physical |
Outline Dimension |
118.7×136.1×87.5mm |
| Installation Port Size(WxL) |
113×130.4mm |
| Insert Depth |
84.8mm |
| Color |
Black/White |
| Environment |
Operating temp |
0°C~50° |
| Operating Humidity |
10%~80% |
| Storage Temp |
-20°C~60° |
| Storage Humidity |
10%~90% |
Application:
1). Taste kiosk
2). Payment kiosk
3). Bank ATM
4). Queuing machine
5). Ticket vendor
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
