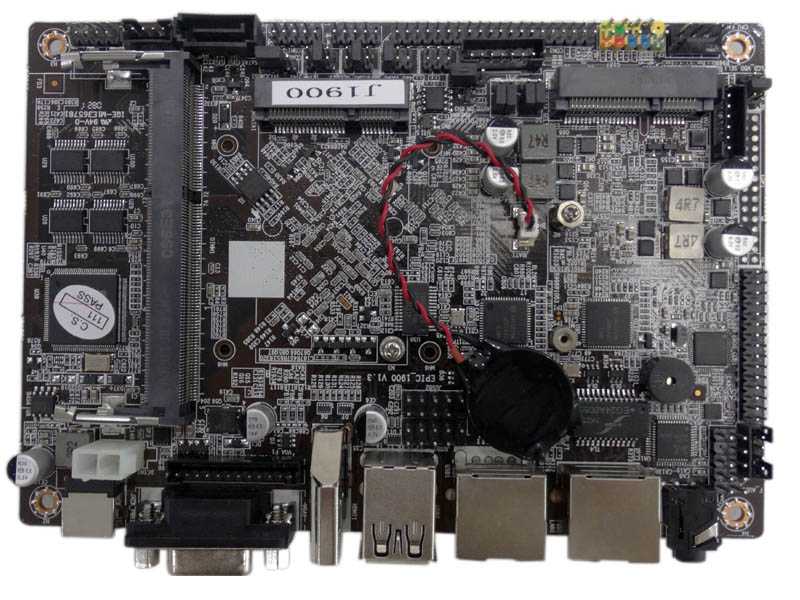

EPIC 3.5" Motherboard Solder on Backplane Intel® J1900 CPU, 2LAN 6COM 6USB, intel i211/i210 net chip
Product Introduction
EP3-J1900DL266 Single Board computer is designed for Industrial BOX, industrial tablet computer, industrial automation, numerical control machinery, on-board computer, medical treatment, POS cash register, etc. Built For Modular Design, Easy Replacement, Expansion & Cost Efficiency.
Product Features
■ Solder on backplane Intel®J1900 CPU
■ 2×LAN Intel gigabit network
■ VGA，HDMI，LVDS interface
■ 6COM RS232
■ 5USB2.0, 1USB3.0
■ 8 bits GPIO
■ 1 MSATA, 1 Mini PCIE
■ SIM slot
| Specification |
| CPU/GPU |
Solder on backplane Intel® J1900 CPU |
| Memory |
1×DDR3 SO-DIMM laptop slot，up to 8GB SDRAM |
| Storage |
1×SATA ，1×M-SATA |
| Sound Card |
Realtek ALC662 HD audio |
| NIC |
2×LAN Intel gigabit network, i211/i210 chip |
| Graphic Card |
CPU integrated graphic |
| Display Interface |
1×VGA, 1×HDMI；1× LVDS |
| USB2.0 |
5 |
| USB3.0 |
1 |
| GPIO |
8 bits |
| COM |
6×COM RS232 |

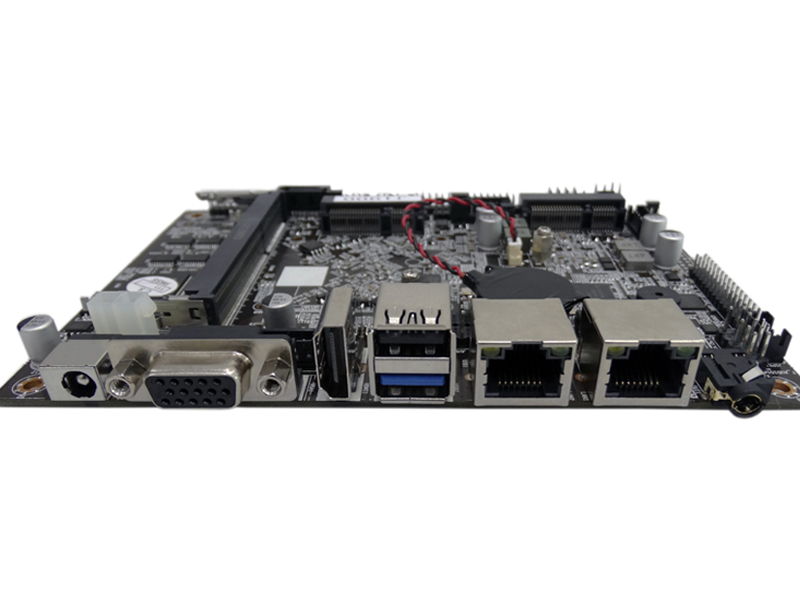

| Backplane I / O |
DC in, VGA, HDMI, USB3.0+USB2.0, 2 RJ45 LAN, Line-out |
| Board I / O |
6USB , 6 COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO |
| Front panel , Speaker, SIM Socket(Back）, DC in, LVDS, invert |
| Expansion |
1MSATA, 1 MINI PCIE |
| System |
Support Windows（WIN 7，WIN 10 ...），Linux |
| Mechanical & Environmental |
| Power Supply |
DC12V |
Heat dissipation |
Heat sink |
Size(L×W) |
146mm×102mm |
| Working Temperature |
-15~55℃ |
Storage Temperature |
-40~75℃ |
Environmental humidity |
0~90% air humidity,no condensation |
| Packing list |
EP3-J1900DL266 motherboard |
×1 |
SATA power cable |
×1 |
| SATA data cable×1 |
×1 |
COM cable |
×1 |
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
