Epoxy Resin Amorphous Toroidal Core 535

Epoxy resin amorphous toroidal core and c cut core for common mode choke, transformer and other electronic component. We provide one-stand solution services, please feel free to contact us.




SAT Epoxy Resin Amorphous Toroidal Core and C Cut Core


SAT epoxy resin amorphous toroidal cores and amorphous metal cut cores has unique combination of high saturation flux density and low loss make SAT amorphous cores the first choice for energy switch and storage applications, meanwhile the air gap cores enabling the SAT designers to reduce both size & system costs for output inductors, flyback transformers and other components.


The Specification of Epoxy Resin Magnetic Toroidal Cores


Core design

Toroidal core

Core for common mode choke

12.51005

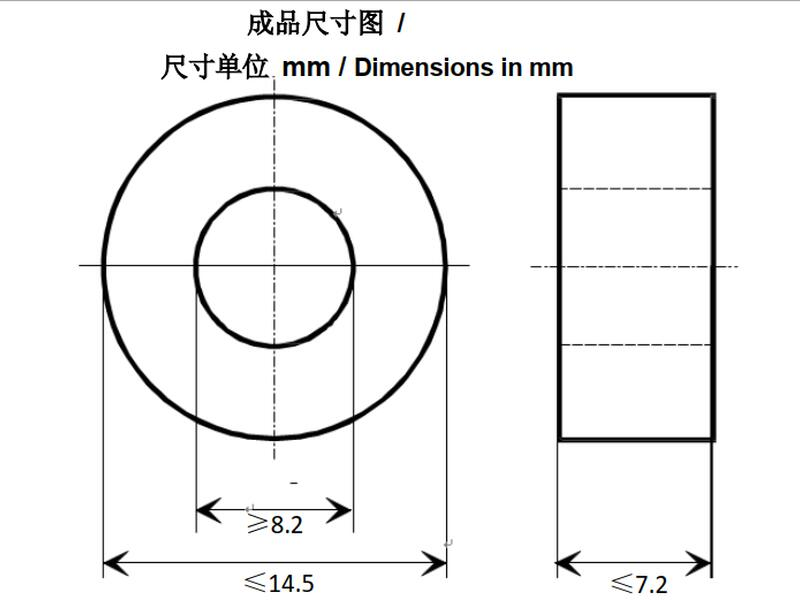

Nominal Dimensions


12.5x10x5 mm


Core Material

SATG1K101

Type of Finish

Plastic box / silicon rubber

Rated Dimensions

Afe=0.050cm²

lFe=3.53cm

mFe=1.36g

Final Inspection

Magnetical Test Measurement at room temperature (AQL 0,65)

Inductance test without DC-magnetisation

7.1.Measurement of core losses according to MATS-2010A

Setting values:

B=400mT

F=50KHz

Specified value:

pFe≤120 W/kg

7.2.Measurement of flux density swing from residual flux density into

saturation with unipolar rectangular voltage pulses, constant field strength amplitude.

Setting values:

td=20µs,

fP=1kHz

H=2A/cm

Specified value:

Br/Bs≥0.8






















amorphous toroidal cores and amorphous metal cut cores

Epoxy Resin Amorphous Toroidal Core Features:

1. 70% lower core loss compared to ferrite and silicon steel cores.
2. Lower hysteresis and eddy current losses, higher permeability.
3. Better overload capacity.
4. Environment friendly, lower carbon dioxide emission due to the lower demand in generation.
5. Lower total cost of manufacturing due to the SAT Zero-Waste Eco Technology.
6. Short circuit strength increasing due to the tape-wound construction.
7. Smaller size, easier to assemble and repair.


Please leave a message below for more details of amorphous toroidal c cores product information.
