SAT Epoxy Resin
Amorphous Toroidal Core and C Cut Core
SAT epoxy resin amorphous toroidal cores and amorphous metal cut cores perform higher saturation flux density and low core loss compared to ferrite cores. SAT epoxy resin amorphous toroidal cores and amorphous metal cut cores are suitable for PFC circuit and boost/buck converter. SAT epoxy resin amorphous toroidal cores and c cut cores include bare core, over-coated core and c cut core, all cores can be applied depends on the customer specifications.
The Specification
of Epoxy Resin Magnetic Toroidal Cores
|
Core design
|
Toroidal core
|
|
Core for common mode choke
|
10074.5
|
|

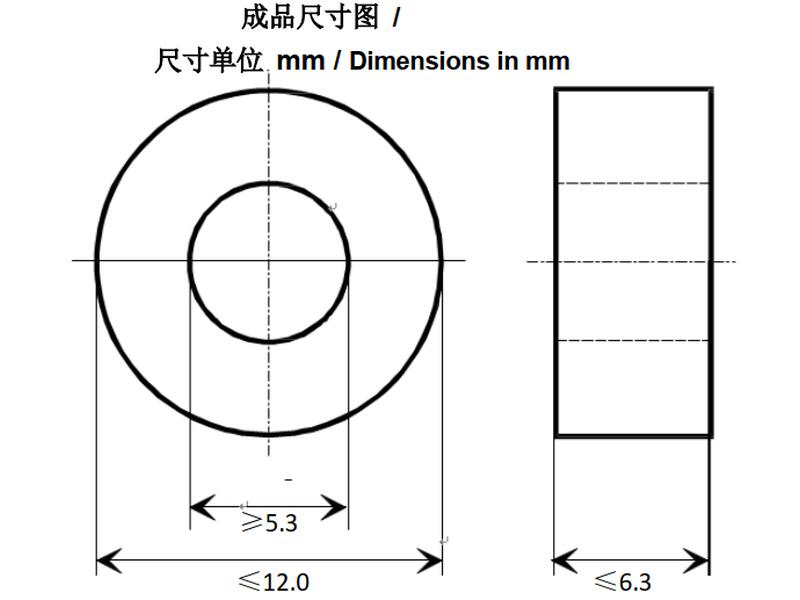

Nominal Dimensions
|
10x7x4.5mm
|
|
Core Material
|
SATG1K101
|
|
Type of Finish
|
Plastic box / silicon rubber
|
|
Rated Dimensions
|
Afe=0.054cm²
lFe=2.67cm
mFe=1.1g
|
|
Final Inspection
|
Magnetical Test Measurement at room temperature (AQL 0,65)
Inductance test without DC-magnetisation
|
|
7.1.Measurement of core losses according to MATS-2010A
Setting values:
B=400mT
F=50KHz
Specified value:
pFe≤120W/kg
|
Epoxy Resin
Amorphous Toroidal Core Features:
1. 70% lower core
loss compared to ferrite and silicon steel cores.
2. Lower hysteresis and eddy current losses, higher permeability.
3. Better overload capacity.
4. Environment friendly, lower carbon dioxide emission due to the lower demand
in generation.
5. Lower total cost of manufacturing due to the SAT Zero-Waste Eco
Technology.
6. Short circuit strength increasing due to the tape-wound construction.
7. Smaller size, easier to assemble and repair.
Please leave a
message below for more details of amorphous toroidal cores and
c cores product information.
