Epoxy Resin Amorphous Toroidal Core 813

Epoxy resin amorphous toroidal core and c cut core for common mode choke, transformer and other electronic component. We provide one-stand solution services, please feel free to contact us.

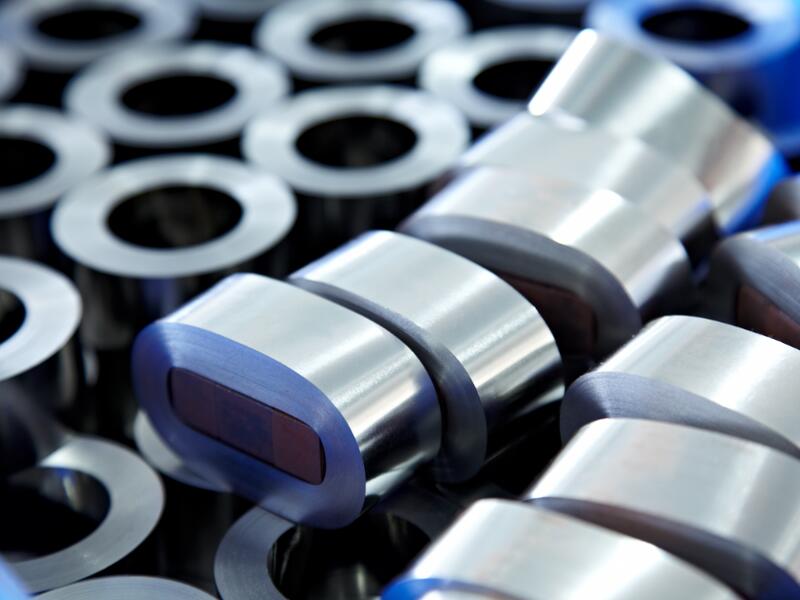

SAT Epoxy Resin Amorphous Toroidal Core and C Cut Core

SAT epoxy resin amorphous toroidal cores and c cut cores are the suitable material for power transformer and inductor, choke coil and sensor, especially used in tough working situation and high-frequency range. SAT epoxy resin amorphous toroidal cores and c cut cores contribute to make components smaller, reduce the install space, improve energy switching efficiency in varieties of industries such as automobile, fire safety and component manufacturing.


The Specification of Epoxy Resin Magnetic Toroidal Cores


Core design

Toroidal core

Core for common mode choke

151004.5

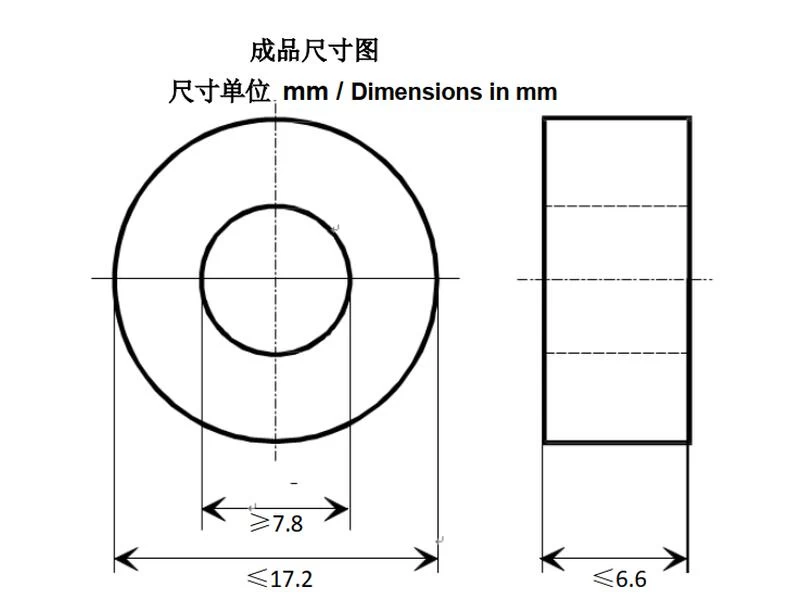

Nominal Dimensions

15x10x4.5mm


Core Material

SATG1K101


Type of Finish

Plastic box / silicon rubber

Rated Dimensions

Afe=0.090cm²

lFe=3.93cm

mFe=2.72g


Final Inspection

Magnetical Test Measurement at room temperature (AQL 0,65)

Inductance test without DC-magnetisation


7.1.Measurement of core losses according to MATS-2010A

Setting values:

B=400mT

F=50KHz

Specified value:

pFe≤120W/kg



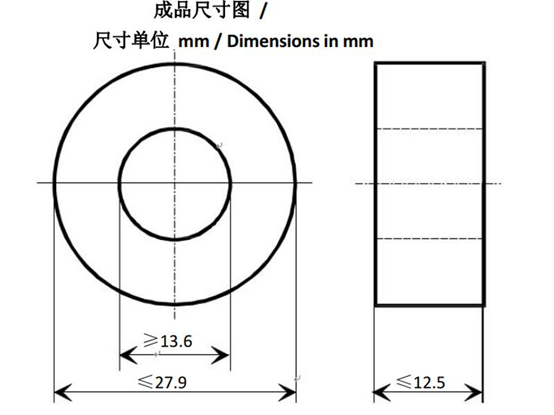

Epoxy Resin Amorphous Toroidal Core


Epoxy Resin Amorphous Toroidal Core


Epoxy Resin Amorphous Toroidal Core Features:

1. 70% lower core loss compared to ferrite and silicon steel cores.
2. Lower hysteresis and eddy current losses, higher permeability.
3. Better overload capacity.
4. Environment friendly, lower carbon dioxide emission due to the lower demand in generation.
5. Lower total cost of manufacturing due to the SAT Zero-Waste Eco Technology.
6. Short circuit strength increasing due to the tape-wound construction.
7. Smaller size, easier to assemble and repair.


Please leave a message below for more details of amorphous toroidal cores and c cores product information.
