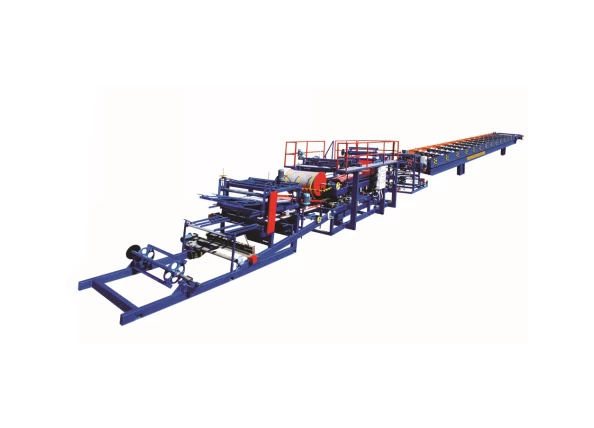

EPS(ROCK WOOL)/COLOR STEEL SANDWICH PANEL PRODUCTION LINE

Components for the full sandwich panel production line

Standard Decoilers

For use pre-painted galvanized steel coil sheet up to 5 tons in weight. The coil holder is supplied with two supporting wood and expanding mandrels.

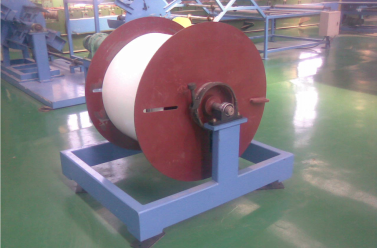

Decoiler

Roll Forming system

This system is equipped with decoiler, pre-slitter and controller.

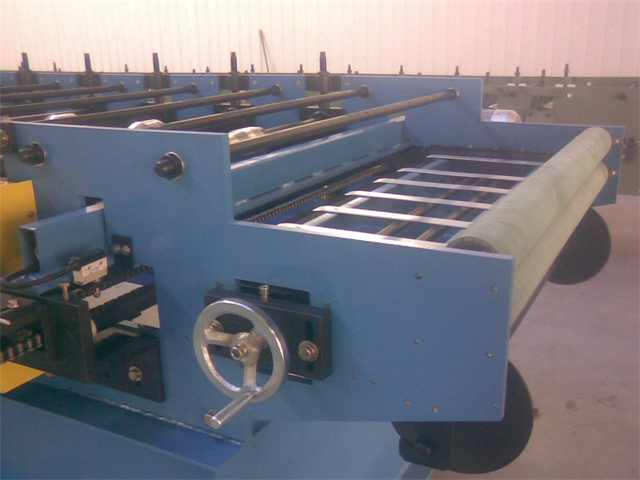

Roll Forming Machine

Pre-cutting system ( for cutting corrugated sheet)

When the sheet meets the set length, it will cut automatically. The tolerance is ±5mm when the length more than 3000mm.

Pre Cutting system

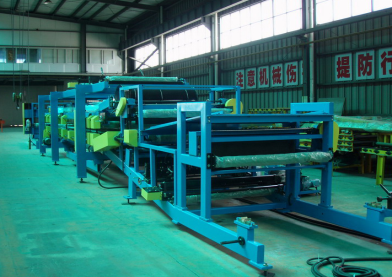

Consecutive Laminating Body ( one for upper coil, other for lower coil)

Consists of guiding, laminating, glue providing, glue scraping, heating and controlling.

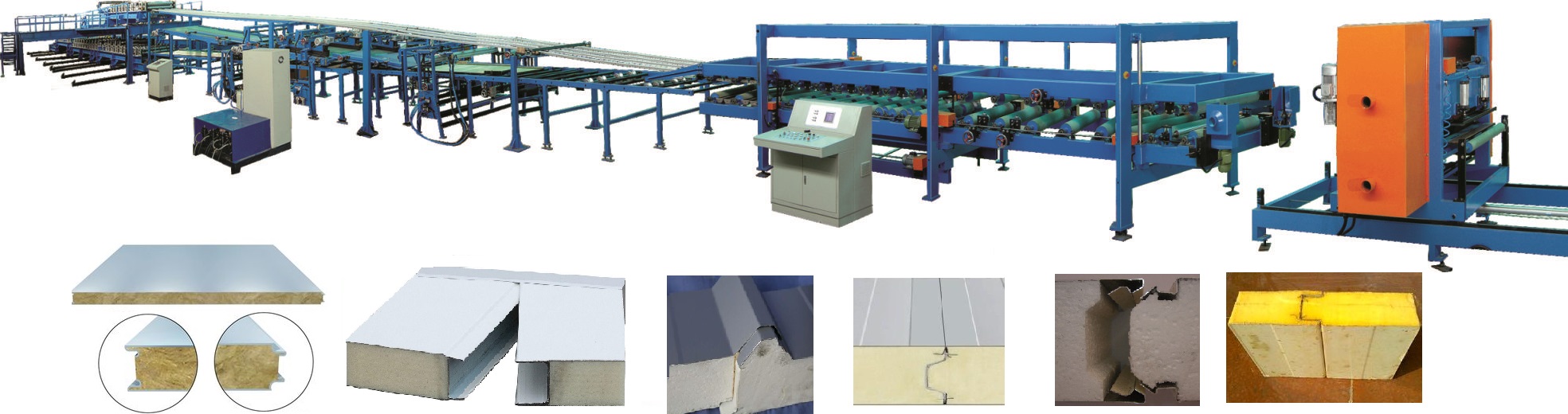

EPS steel Laminating sandwich panel machine

Coil Guiding equipment

When the coil sheet come the laminator, the guiding system ensures the sheet to the correct position.

Pre-heating system

Before glue scraping, the coil sheet will be heated in this system.

Guiding roller core

When the EPS fed to the machine, the guiding roller will guide the EPS to the laminating cabinet, the roller core will go the cabinet too. This makes the EPS closer to the top and lower coil sheet, thus make the finished panel more solid.

Glue Providing

There are 4 drum stand, with proportion at 60:40 (the glue is provided by the buyer, and the quality shall be meet the speed at 3-4 meters per minute). The glue will scraping at 4 directions, this guarantees the glue can be supplied at different speed.

Glue Filling Pad

The pad is in to-and-fro movement, there are air cushions on the concrete pad.

Heater

To open the heating pipe or not and how many pipes to open, is depend on the temperature and the solidify time of glue. The heater is to heat the top and lower coil sheet at appropriate temperature in laminating

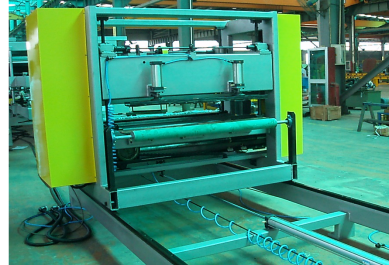

Cutting system (for laminating use)

In production, when the sandwich panel meets the set length, the system will cut the panel with milling cutter.

EPS/Color Steel sandwich Panel Cutting system

PLC Control System

Main components are imported from Mitsubishi.

Supporting Table

The finished panel will come out to the table.

Safety Guard

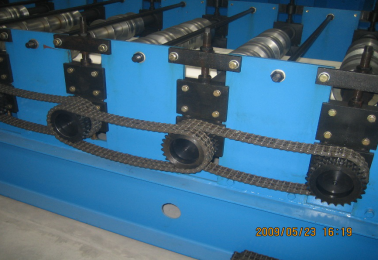

All the chains and sprockets are covered with a guard. This will prevent the workers from injured

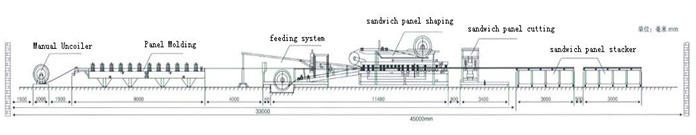

Full sandwich panel production flow

Our one stop service for includes:(EPS/rock wool steel sandwich panel production line)

1.Design and supply sample sandwich panel profab house and steel structure house  to get local market’s acceptance.
2.Design and supply full production line according to customer’s requirement.
3.Supply raw material :color steel coil and glue.

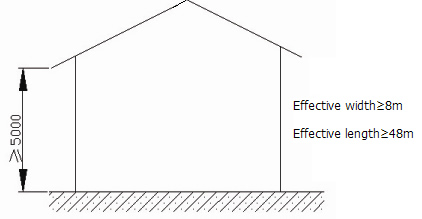

4.Workshop layout design.

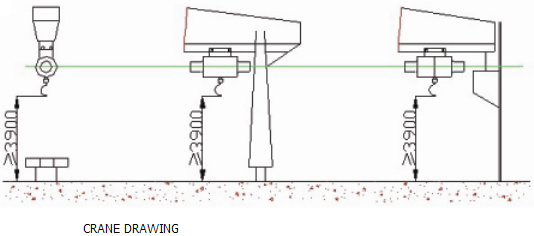

5.Steel structure workshop design and supply together with overhead crane.
6.To customer’s factory for commission and training workers.
