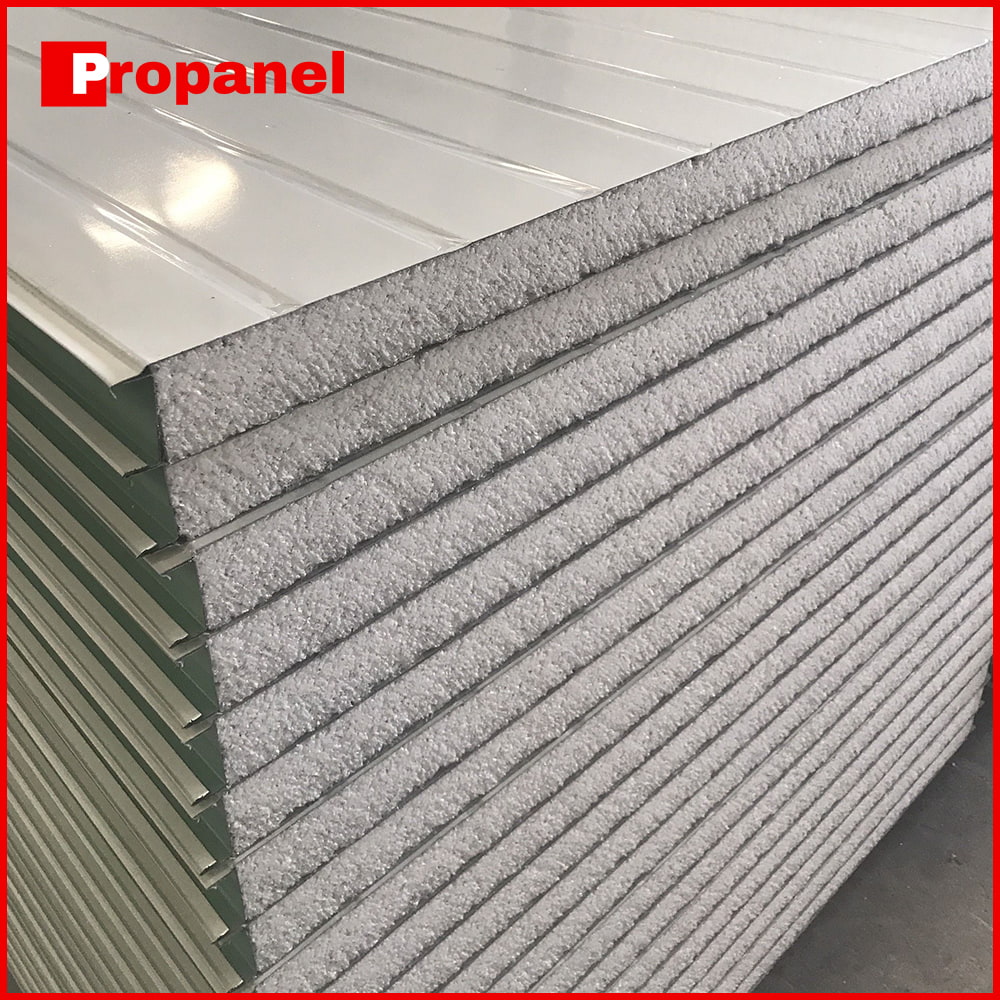

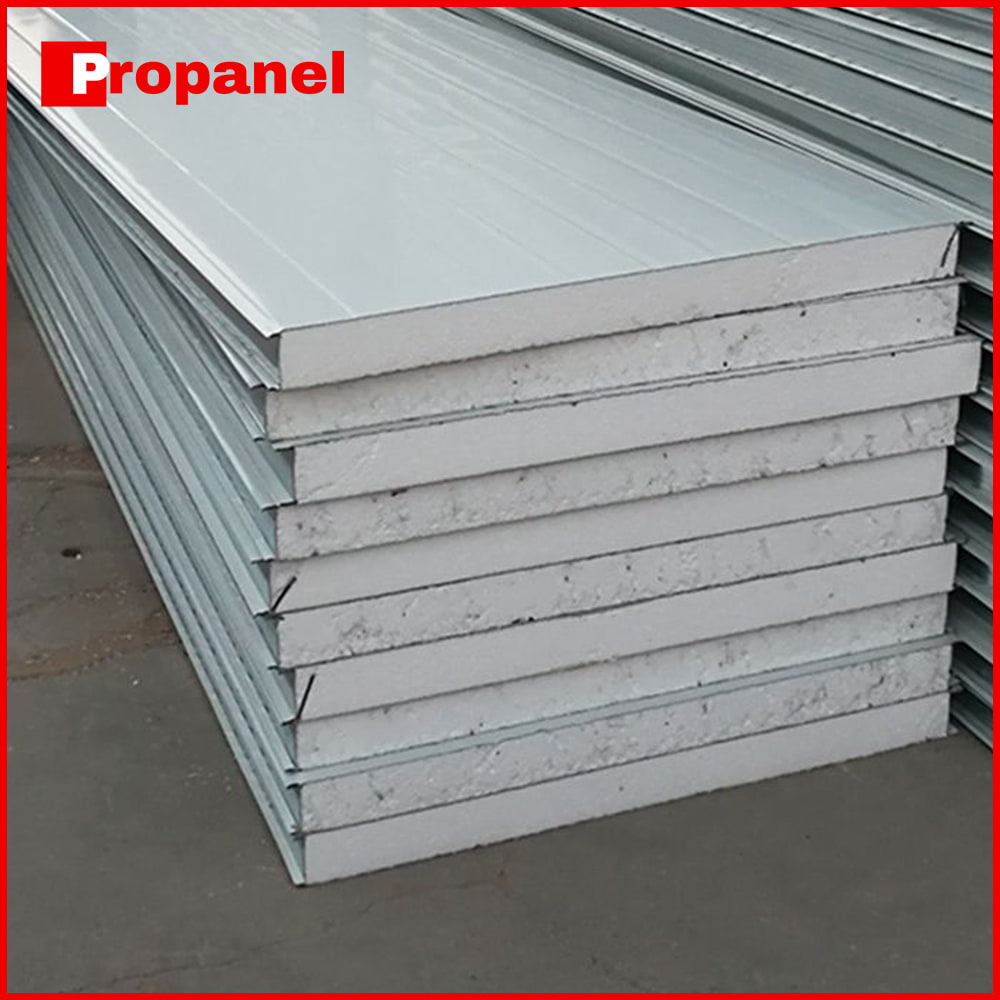

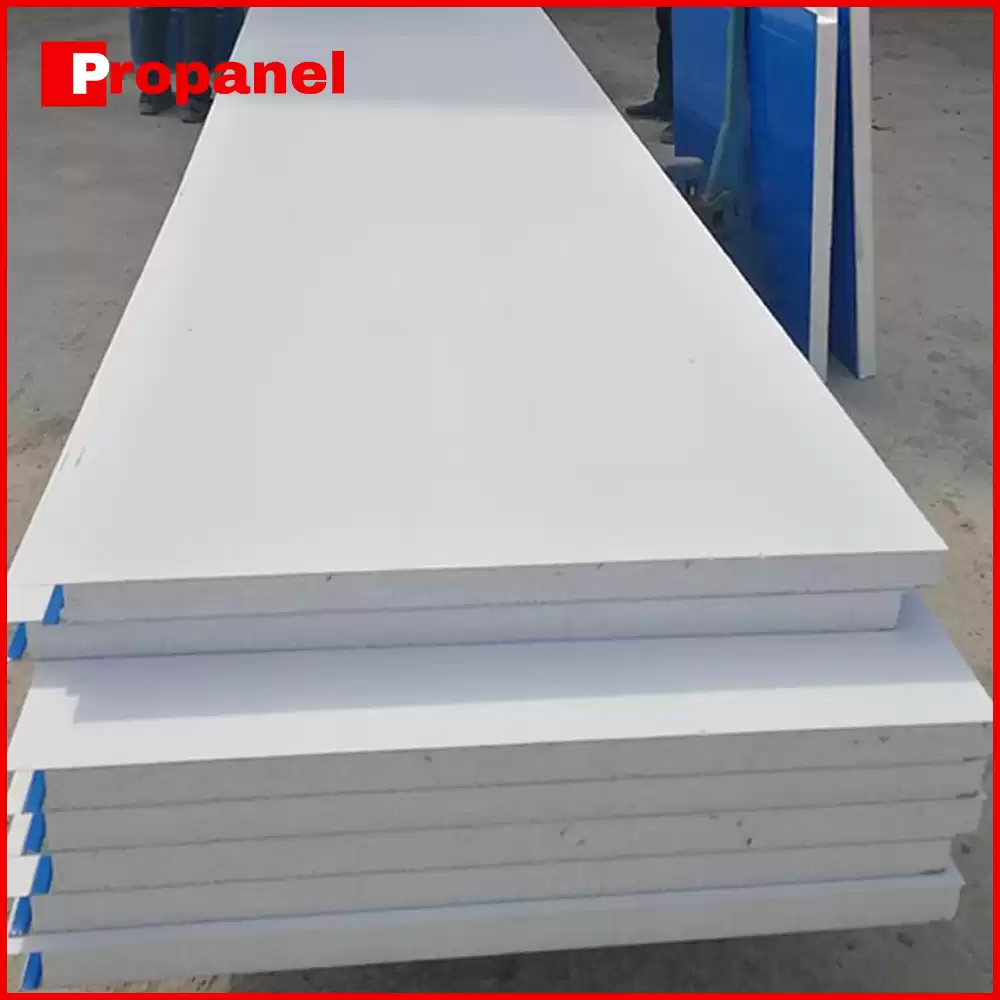

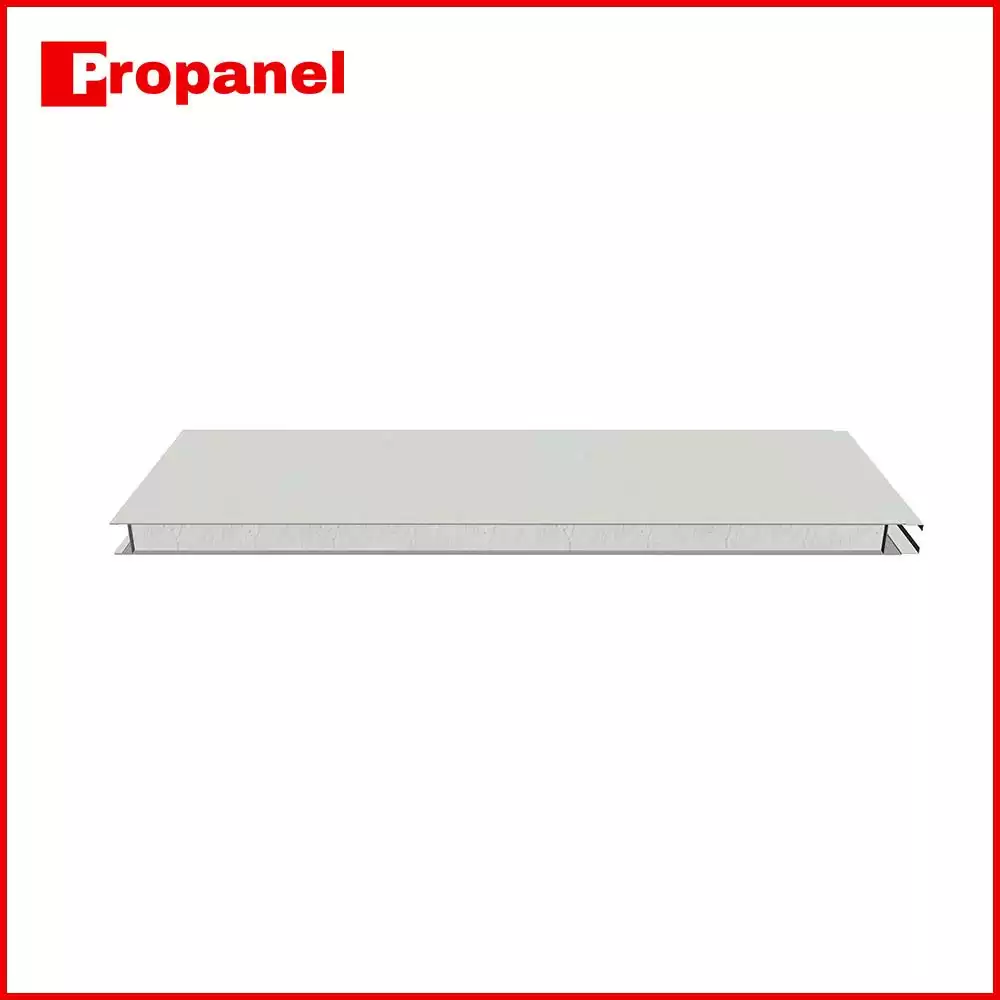

EPS Wall Sandwich Panel

Smart choice of energy efficient building materials. Excellent thermal insulation with a thermal conductivity of 0.024-0.041 W/m·K, reducing energy consumption. Light weight, easy to handle and install. Lowest cost, durability, excellent sound insulation and aesthetics.



1 Product Parameters



Specifications

Type

EPS Wall Sandwich Panel

Thickness

50/75/100/120/150/200mm

Metal skin thickness

0.4~0.8mm

Panel Effective Width

950/980mm

Density

8/10/12/14/16/18/20kg/m³

Skin material

PPGL,PPGI,Stainless steel,aluminum coil

Pre-painted

PE/SMP/HDP/PVDF etc.

Fireproof Grade

B2

Thermal Conductivity

0.042

Temperature Range

-40~90

Length

Max 11.9m or Customized.

Customized design is welcomed.



2 Product Features

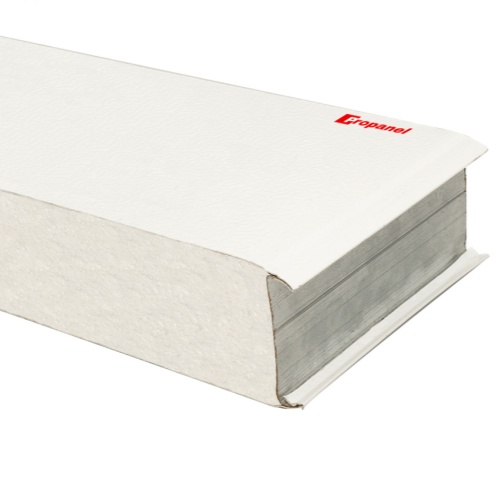

Details of EPS Sandwich Wall Panel

Thermal insulation: Low thermal conductivity, about 0.038-0.043W/ (m · K), effectively reducing heat transfer and keeping indoor temperature stable.

High cost performance: Low raw material cost, low transportation cost and installation cost.

Light weight: About 10-18kg/㎡, much lower than traditional roofing materials, reduce the overall

weight of the building, reduce the cost of foundation and structure.

Easy installation: Using plug-in or splicing installation methods, fast construction speed, greatly shorten the construction period. Cut at will, easy to install and adjust on site.

High strength: With high-strength steel plate as the panel, and EPS core composite, has good bending and compressive performance, withstand a certain roof load.

Fireproof performance: surface and core materials can be made of non-combustible or non-combustible materials, which can meet certain fire protection requirements, and the oxygen index can generally reach 32.0 and above.

Beautiful and durable: rich colors, clear lines, to meet the design needs of different buildings. 10-15 years do not fade, if every ten years to spray anti-corrosion paint, plate life can reach more than 35 years.

Sound insulation performance: Good sound insulation, can reduce external noise, provide a relatively quiet indoor environment.

Environmental performance: EPS materials can be recycled, and no harmful substances are released during use.

Allowable vertical load and heat transfer coefficient of PROPANEL EPS sandwich roof panel  (allowable deflection f ≤ L/240)

Thickness (mm)

Heat transfer (W/·k)

Weight
(kg/
)

Load P=KN/m2

0.6

0.8

1

1.2

1.5

50

0.64

10

L(m)

6.5

5.8

5.1

4.6

4

75

0.43

10.45

L(m)

7.8

7

6.2

5.6

5

100

0.32

10.9

L(m)

9.5

8.5

7.5

6.8

6



3 Joint Type for EPS Sandwich Wall Panels



There are 2 kinds of lap type for EPS Wall sandwich panel: one is cap type, another is overlap type.

Pictures are as below:

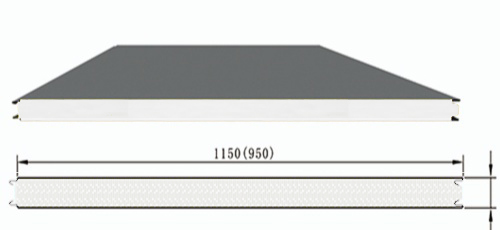

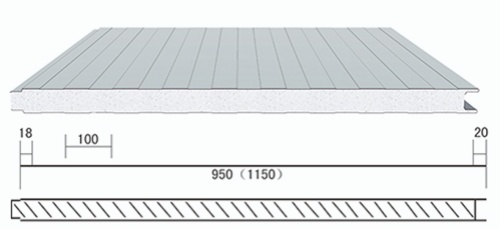

Socket Type 950 1150 Wall Panel

Socket Type 950 1150 Wall Panel


S-Socket Type 950 1150 Wall Panel

S-Socket Type 950 1150 Wall Panel



4 Application of EPS Wall Sandwich Panel

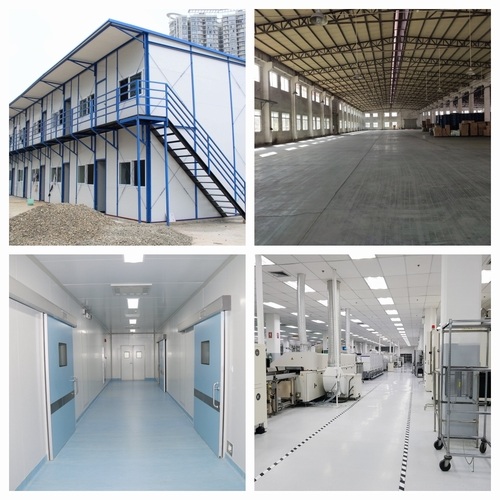

Application of EPS Wall Sandwich Panel

The EPS Wall Sandwich Panel is a versatile building material widely applied in mobile board rooms, large warehouses, clean workshops, and medical institutions. Its key product features—lightweight design, thermal insulation, durability, and ease of installation—cater to diverse construction needs.



Mobile Board Rooms: The lightweight and quick-to-install panels are perfect for temporary setups like site offices or event spaces, enabling rapid assembly and disassembly.

Large Warehouses: Superior thermal insulation ensures stable indoor temperatures, ideal for storing temperature-sensitive goods such as food or pharmaceuticals, while cutting energy costs.

Clean Workshops: In industries like electronics or pharmaceuticals, the panels support dust-free, sterile conditions, meeting stringent cleanroom requirements.

Medical Institutions: With excellent soundproofing and temperature control, they create quiet, comfortable environments for patient care and medical storage.



5 Project cases of EPS Sandwich Wall Panel

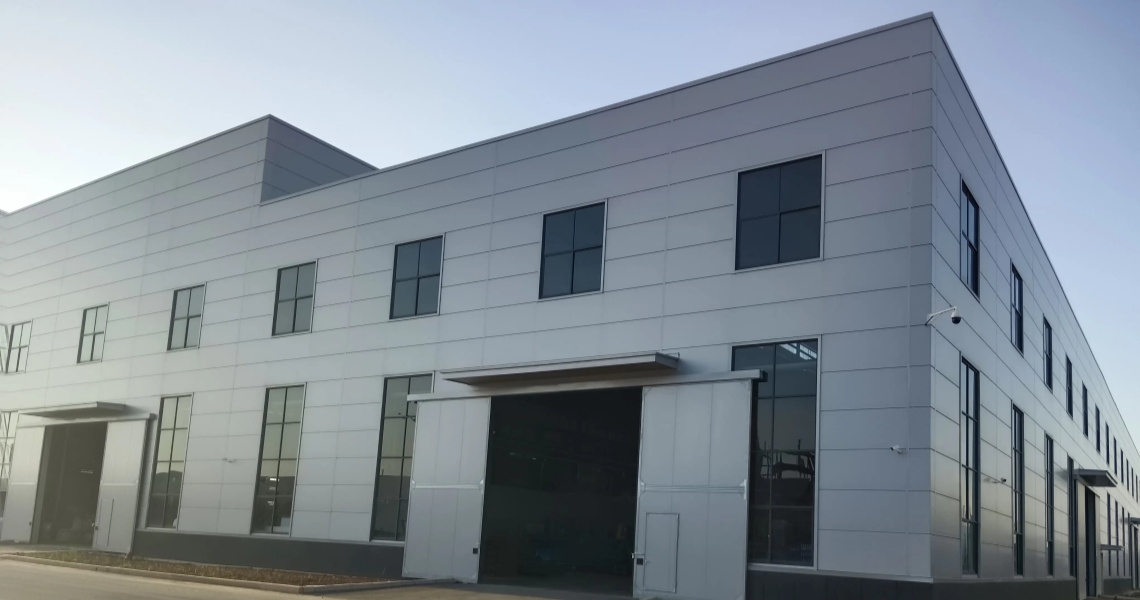

Türkiye Equipment Processing Factory 6000 square meters 2014

Project cases of EPS Sandwich Wall Panel--Türkiye Equipment Processing Factory 6000 square meters 2014

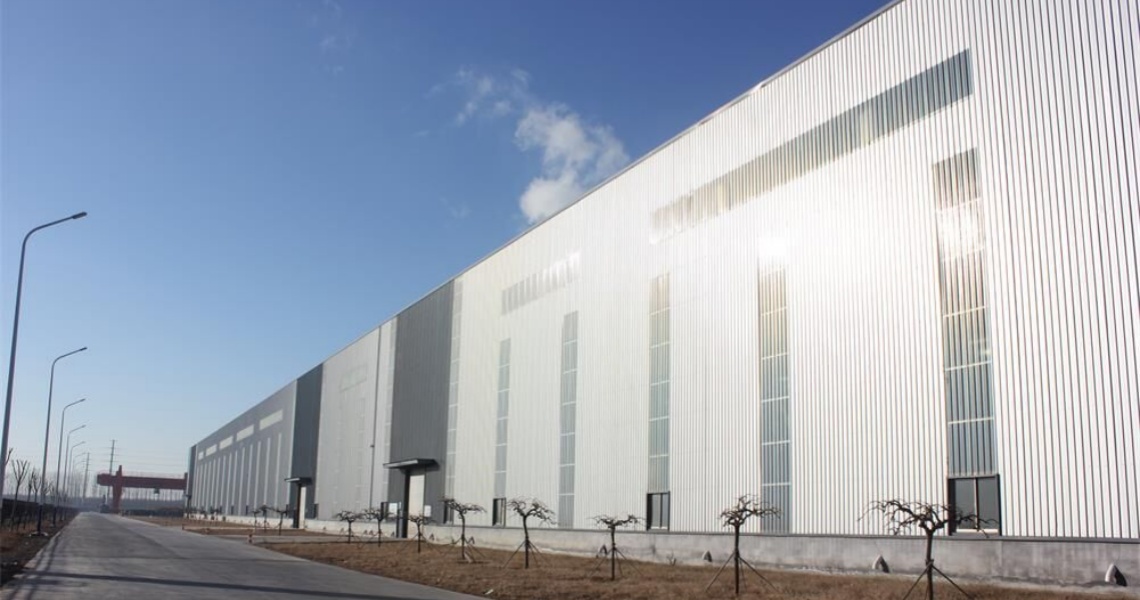

Australian Electronic Cleaning Studio 3000 square meters 2017

Project cases of EPS Sandwich Roof Panel--Australian Electronic Cleaning Studio 3000 square meters 2017
