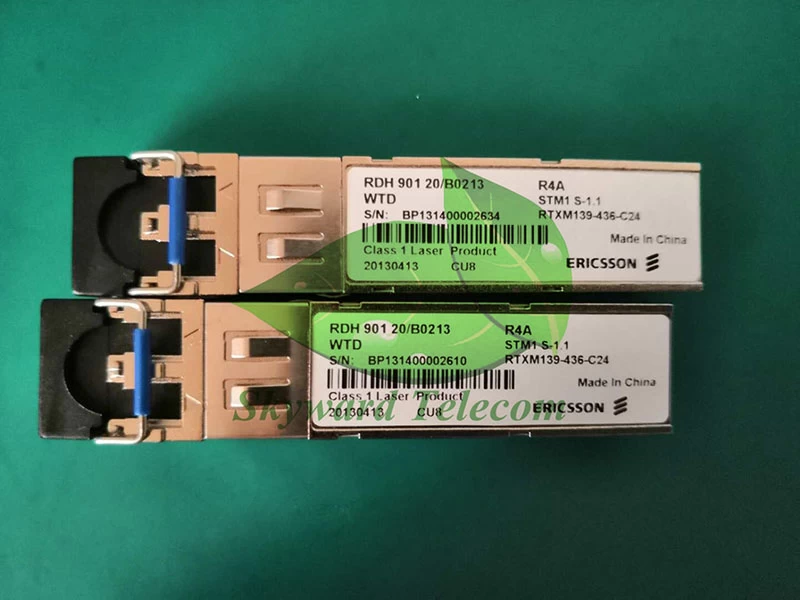

Overview of Ericsson RDH 901 20/B0213
Brand Name: Ericsson
Product Number: RDH 901 20/B0213
Discription: Ericsson RDH90120/B0213 is SFP Double Fiber Transceiver supporting 100-155Mbps data rate in 15 km distance over Single-Mode Fiber (SMF)
Media Type: Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm.
RX Wavelenght: 1310nm.
Minimum Optical Budget: 19 dB
Maximum Distance: 15km
Supported Data Rate: 100-155Mbps
Supported Applications: 100M Ethernet (100Mbps), STM-1 (155Mbps)
DDM/DOM: Support
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Rx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Minimum Transmitting Power: -15 dB
Maximum Transmitting Power: -8 dB
Receiver Sensitivity: -34 dBm
Receiver Overload: -3 dBm
Dispersion: 110-200 ps/nm
Transmitter Type: FP Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
Chipset: MAXIM, MINDSPEED, SEMTECH
Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA
Transceiver Type: SFP
